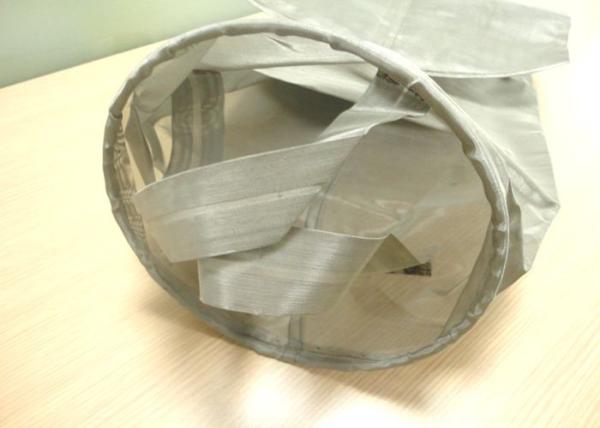

Polyester / Polypropylene / Nylon / Stainless Steel Liquid Filter Bag Steel Ring Liquid Filtration
Polyester / Polypropylene / Nylon / Stainless Steel Liquid Filter Bag Steel Ring Liquid Filtration
Polyester / Polypropylene / Nylon / Stainless Steel Liquid Filter Bag Steel Ring Liquid Filtration
Polyester / Polypropylene / Nylon / Stainless Steel Liquid Filter Bag Steel Ring Liquid Filtration
Polyester / Polypropylene / Nylon / Stainless Steel Liquid Filter Bag Steel Ring Liquid Filtration
Polyester / Polypropylene / Nylon / Stainless Steel Liquid Filter Bag Steel Ring Liquid Filtration
Specifications
Brand Name :
Philis
Model Number :
liquid filter bag
Certification :
ISO
Place of Origin :
China
MOQ :
100pcs
Price :
2-5$/pcs
Payment Terms :
T/T
Supply Ability :
30000pcs/day
Delivery Time :
within 10 days
Packaging Details :
standard export package
material :
pp, pe, nylon
color :
white
size :
Custiomized
top ring :
plastic ring, ss ring, iron wire ring
micron :
0.5-800micron, nylon can be 1000mesh
Usage: :
Solid-liquid separation
Description

Polyester / Polypropylene / Nylon / Stainless Steel Liquid Filter Bag Steel Ring Liquid Filtration

Quick Detail:

Materials:

1. Polypropylene felt

2. Polyester felt

3. Nylon monofilament

4. Polyester monofilament

Micron rating : 0.5um ~800um

Good anti abrasion

High temperature grade

Anti acid ,anti alkali, chemical resistance

High porosity ,good air permeability

Laminated compound,grads counterchange

Specifications:

Liquid Filter Bags are available in many different sizes and shapes. The four most used sizes are:

1. P1S bags (7''diameter by 16 1/2'' long)

2. P2S bags (7''diameter by 32''long)

3. P3S bags (4''diameter by 8 1/4''long)

4. P4S bags (4''diameter by 14''long)

Main Parameters:

Filter bag
model		 Filter bag
area(m2)		 Filter bag
Volume(Liter)		 Filter bag
Diameter (Inch/cm )

Filter bag Length

(Inch/cm )
No.1 0.19 7.9 7/17.8 16/40.65
No.2 0.41 17.3 7/17.8 32/81.3
No.3 0.05 1.4 4/10.2 8.25/20.9
No.4 0.09 2.5 4/10.2 14/35.5
No.5 0.22 8.1 6/152 22/55.9

Fiber Abrasion resistance Weakly acid Strongly acid Weakly alkali Strongly alkaly Solvent Temperature (°C)
PE Very good Very good Good Good Poor Good 130-150
Nylon Excellent General Poor Excellent Excellent Good 135-149
PP very good Excellent Excellent Excellent Excellent General

90-110

Hardware:

1. Carbon steel retainer is standard on bags. Stainless steel, and Polypropylene Rings are available as an option.

2. Polypropylene Flange Tops are also available.

Specifications:

Micron Rating

Polyester

Felt

Polypropylene

Felt

 Nylon Monofilament Polyester Monofilament
1 √ √
5 √ √
10 √ √
25 √ √ √
45 √ √
50 √ √ √ √
55 √ √
75 √ √ √ √
100 √ √ √ √
125 √ √ √ √
150 √ √ √ √
200 √ √ √ √
250 √ √
300 √ √
400 √ √
600 √ √
800 √ √
1000 √ √

Item swimming pool filter
Type Various specifications
Material PE , PP , NMO
Relative filtration pore size 0.2,0.5, 1,5, 10, 25, 50, 100, 200 ,300...1000µm
Temperature < 80-160°C
Bag top ring Plastic(PP/PE)/stainless steel/zinc steel
Body construction Sewn / welded
Type of bottom Round / V triangle
Effective filtration area Various specifications

Special requirement of diameter and collar extension can be customized

Applications:

1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.

Polyester / Polypropylene / Nylon / Stainless Steel Liquid Filter Bag Steel Ring Liquid FiltrationPolyester / Polypropylene / Nylon / Stainless Steel Liquid Filter Bag Steel Ring Liquid FiltrationPolyester / Polypropylene / Nylon / Stainless Steel Liquid Filter Bag Steel Ring Liquid Filtration

Remarks

1) The length of dust filter bags can be customized.

2) If your liquid / dust filter bag is different from our filter bag size, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag.

3) Please send us your inquiry specification detail by email for quotation, thanks my friends.
