Analog Signals PH Probe Sensor PH Glass Electrode With Ceramic Hole Core

Introduction and advantages:

A pH electrode, the part of a pH meter that is in contact with the solution being measured, is a device used to determine the potential value of a specific ion of the solution. The pH probe sensor is a pH composite electrode with a glass shell. Glass housing is more corrosion resistant than plastic housing.

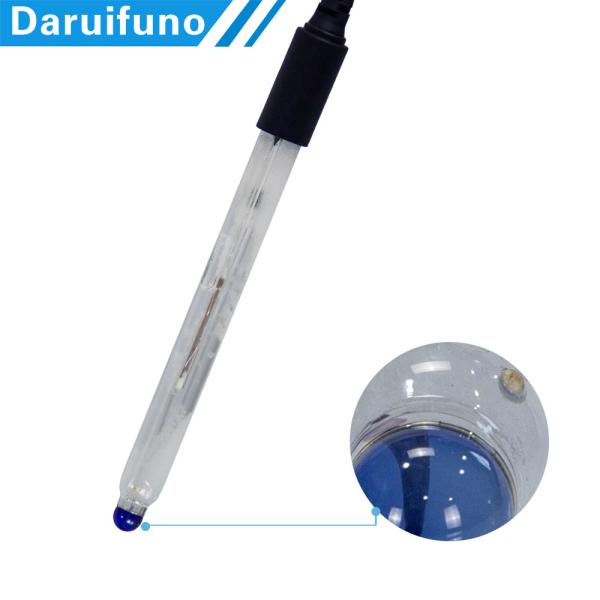

The glass head of the pH probe sensor is blue low-impedance hemispherical. It has high strength and does not break easily, it helps enhance the accuracy of measurement.

The reference electrode of the pH probe sensor is Ag/AgCl, reference filled saturated KCL + excess KCL crystals for long service life. It has the advantage of low maintenance and suitable for online measurements in demanding applications.

The reference system is a double salt bridge design, and the ceramic porous cores have a smooth response, no drift in potential, and good stability.

The pH probe is equipped with standard 3m low noise leads.

Applications:

1. Water treatment monitoring: drinking water, surface water source water quality, groundwater, environmental protection sewage discharge monitoring, urban drainage pipe network monitoring, etc.

2. Industrial process monitoring and dosing control management: chemical industry, petroleum, papermaking, food and medicine, electroplating, PCB manufacturing, etc.

Technical parameters:

Suggestions:

The pH electrode should be soaked before using, so that it can respond well to the H⁺ in solution.

pH electrode is a consumable product in electrochemistry, not the same as instrumentation, only when the user has good knowledge of necessary maintenance can the service life of the pH probe be better extended.

If you want to know more about our products, please contact us.
