Specifications
Brand Name :
Daruifuno
Model Number :
MCC200-A2
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets per Month
Delivery Time :
5-25 days
Packaging Details :
Carton
Product Name :
Multi-Parameter Controller
Model :
MCC200-A2
Measure Channel :
2 channels input
Measure Information :
Related to sensors
Display Screen :
128*64 pixel, 3.2-inch
Instrument Operation :
PET key panel, 8 keys
System Language :
English and Chinese
Power-off Protection :
With
Time Display :
Year/Month/day, hour/minute/second
History Logs :
Record 7800 history data
Menu Password :
six-digit password settings
Relay Output :
Two settable SPST relays
Output extension type (Optional) :
Two settable 0/4~20mA current
Digital Communication :
RS485 interface Modbus RTU JSON
Protection Grade :
IP66
Instrument Dimension :
144*144*120mm(hole size: 138*138mm)
Installation Method :
Panel, wall-mounted, pipe clamping
Housing Material :
Enhanced ABS
Power Supply :
AC: 100~240V 50/60Hz DC: 18~36V
Consumption :
24W
Description

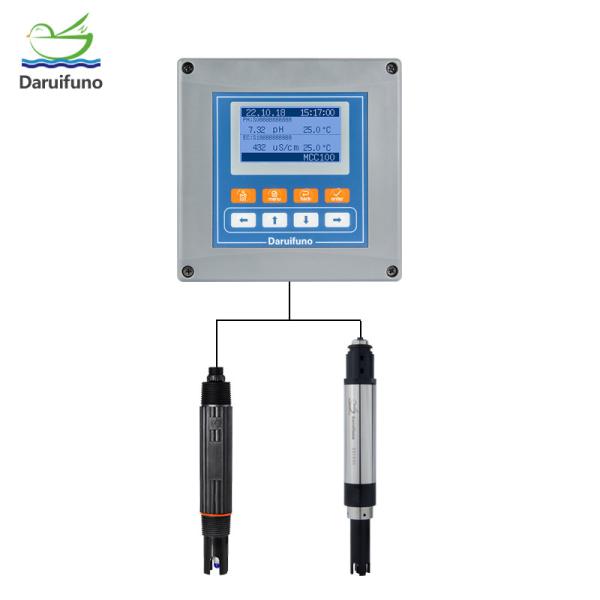

Multi-Parameter Digital Water Quality Controller For Connect 1-2 same or different Digital Sensors

The MCC100-A2 two-channel digital universal controller can connect 2 same or different types of digital sensors at the same time and can display the detected or calculated measurement data of all connected sensors.


​​Specification:

Model MCC100-A2
Measure Channel 2 channels input
Measure Information Related to sensors
Display Screen

128*64 pixel, 3.2-inch black and white graphic LCD display,

backlight and contrast can be adjusted
Instrument Operation PET key panel, 8 keys
System Language English and Chinese
Power-off Protection All setting parameters of the instrument are power-off protection, and the data is retained indefinitely.
Time Display Year/Month/day, hour/minute/second
History Logs

Record 7800 history data, support data download

The recording interval can be set between 1~999 minutes
Menu Password Operation authority management, six-digit password settings
Relay Output Two settable SPST relays, Max. load of 3A/250VAC
Current Output Two settable 0/4~20mA current, Max. load 1000Ω
Digital Communication

Communication interface: 2-wire RS485 interface

Communication protocol: Modbus RTU JSON
Protection Grade IP66
Working Temperature 0~60℃, RH <95% (no condensation)
Storage Temperature -20~70℃, RH<55% (no condensation)
Instrument Dimension 144*144*120mm(hole size: 138*138mm)
Installation Method Panel, wall-mounted, pipe clamping
Housing Material Enhanced ABS
Electrical Interface 3 M12*1.5 glan heads reserved with a wire diameter 3~6.5mm
Power Supply AC: 100~240V 50/60Hz DC: 18~36V
Consumption 24W
Packing Information Weight: 1600g Dimension: 260*230*180mm

Multi Parameter Digital Water Quality Controller For Connect 1-2 Same Or Different Digital Sensors

Please click the user manual of multi-parameter controller here:
MCC100 Multi-parameter User Manual.pdf

Application:
◇ Pure water ultra pure water
◇ drinking water
◇ Waste water
◇ Food and beverage industry
◇ chemical process
◇ Industrial water supply

FAQ
1. Which sensors can be connected to your MCC200-A2 Multi-Parameter controller?
Including but not limited to: PH, ORP, conductivity, salinity, TDS, dissolved oxygen, turbidity, MLSS, transparency, COD, TOC, residual chlorine, ammonia nitrogen, Doppler, etc.

2. The MCC200-A2 controller can connect with which type sensor?
Our MCC200 can just connect with Our brand digital (RS485) sensor.


3. How many sensors can be connected to MCC200-A2 controller?
1-2 same or different sensors can be connected to MCC200-A2 controller at the same time.

4.Can digital sensors be connected to multi-parameter controllers MCC200-A2 in any combination?

If MCC200-A2 multi-parameter controllers need to connect to different digital sensors: It can be choosed to connect any two of our brand digital sensor from the allowed list.

If MCC200-A2 multi-parameter controllers need to connect to two same sensors:The sensors connected to the controller in the future will be fixed, and type of sensor can not be changed in the future.

5. How many sensors must be connected to the controller at the same time?

1-2 sensors connected to the controller, MCC200-A2 will display the corresponding interface.

Any combination of sensor(different sensors) models can be connected to the controller (the sensor must be in our list).

If two same sensor need connected to the MCC200-A2, the sensor connection combination will be fixed and cannot be changed in the use site.
