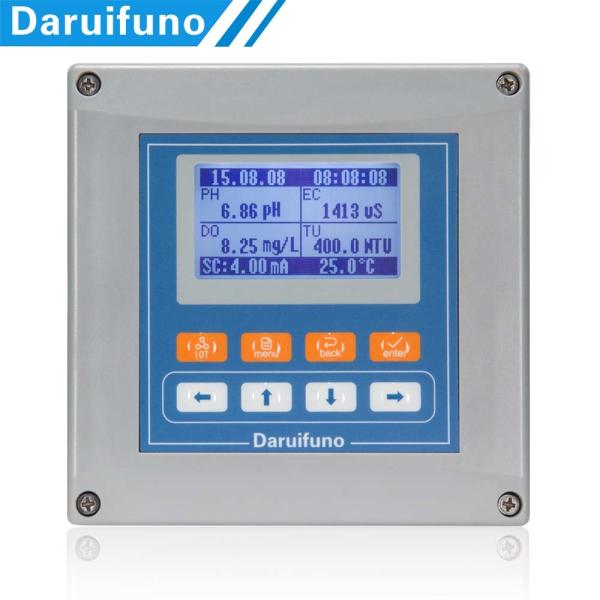

Water Quality Multi-Parameter Analyzer Insturment With RS485 Interface
Water Quality Multi-Parameter Analyzer Insturment With RS485 Interface
Water Quality Multi-Parameter Analyzer Insturment With RS485 Interface
Water Quality Multi-Parameter Analyzer Insturment With RS485 Interface
Specifications
Brand Name :
Daruifuno
Model Number :
MCC200
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets per Month
Delivery Time :
5-25 days
Packaging Details :
Carton
Product Name :
Multi-Parameter Controller
Detection Objectal chlorine, ammonia nitrogen, D :
Including but not limited to: PH, ORP, EC, DO,TU, etc.
Communication :
RS485 Modbus
OTA :
Optional
Signal Output :
Two 0/4~20mA current
ConfigurationInformation :
Power failure protection
Time/Data Logging :
Record 5000 historical data
Protection Grade :
IP66
Instrument Shell :
Reinforced ABS
Instrument Dimensions :
144*144*120mm
Description

Water Quality Multi-Parameter Analyzer Insturment With RS485 Interface


Features＆Advantages Customized multi-parameter analyzer

Daruifuno MCC100 analyzer has 4 digital channels:PH,dissolvedoxygen,conductivity and turbidity. It can measure up to 5parameters (temperature).

MCC200 can be customized, the parameters including but not limited to: PH, ORP, conductivity, salinity, TDS, dissolved oxygen, turbidity, MLSS, transparency, COD, TOC, residual chlorine, ammonia nitrogen, Doppler,etc.

Different measurement range

The MCC100/200 controller can be connected with different electrodes to realize the measurement. The measuring range is determined by different sensors.

Communication and control

The MCC100/200 analyzer has RS485 interface and the communication protocol is Modbus RTU. The controller has 2SPST relay sand two 0/4~20mA analog current outputs.

Various installation methods

The dimension of the controller is 144*144*120mm,support wall mount,pipe clamping,panel


​​Specification:

Model MCC200
Software Version Daruifuno multi-parameter analysis software V1.0
Detection Object Including but not limited to: PH, ORP, conductivity, salinity, TDS, dissolved oxygen, turbidity, MLSS, transparency, COD, TOC, residual chlorine, ammonia nitrogen, Doppler, etc.
Communication Method Two-wire RS485 interface communication protocol: MODBUSRTU
OTA Optional

Screen

 128*64 graphic dotmatrix LCD screen adjustable backlight mode adjustable display rate
Configuration Information Power failure protection, indefinite retention of parameters
Time/Data Logging Accurate to the second,record 5000 historical data Recording interval can be set between 1 and 999 minutes

Maintain Records

 Last 100 times
Protection Grade IP66
Operating Temperature 0～60℃, RH<95%RH

Storage Temperature

-20～70℃,RH<55%RH
Instrument Shell Shell material: reinforced ABS
Instrument Dimensions 144*144*120mm (opening hole size138*138mm)
Installation Method Wall mount,pipe clamping, panel
Electrical Interface Three M12*1.5 Gellen heads are reserved at the back,with a wire diameter of 3~6.5mm

Power

100~240VAC,50/60Hz
Power Consumption <25W

Please click the user manual of multi-parameter controller here:

MCC100 Multi-parameter User Manual.pdf

Application:

◇ Pure water ultra pure water

◇ drinking water

◇ Waste water
◇ Food and beverage industry

◇ chemical process

◇ Industrial water supply

FAQ
1. Which sensors can be connected to your MCC200 Multi-Parameter controller?

Including but not limited to: PH, ORP, conductivity, salinity, TDS, dissolved oxygen, turbidity, MLSS, transparency, COD, TOC, residual chlorine, ammonia nitrogen, Doppler, etc.

2. The MCC200 controller can just connect with digital type sensor?

Yes. our MCC200 can just connect with digital sensor.
