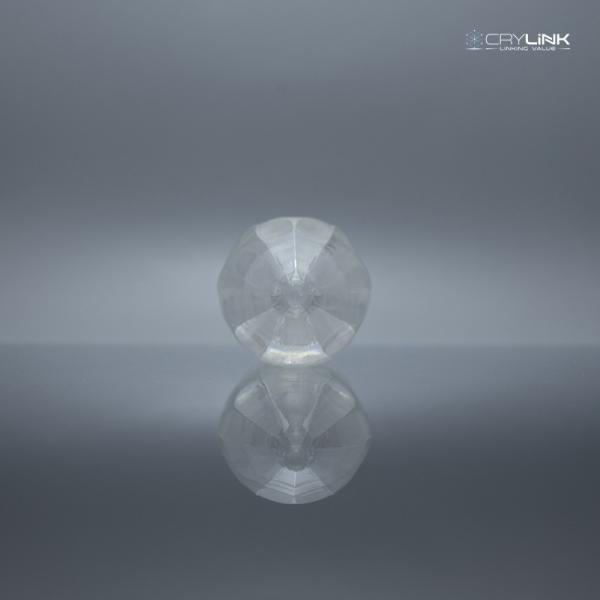

Yb YAP Scintillator Crystals / Yttrium Aluminum Perovskites 1000MeV Light Yield
Yb YAP Scintillator Crystals / Yttrium Aluminum Perovskites 1000MeV Light Yield
Yb YAP Scintillator Crystals / Yttrium Aluminum Perovskites 1000MeV Light Yield
Yb YAP Scintillator Crystals / Yttrium Aluminum Perovskites 1000MeV Light Yield
Specifications
Place of Origin :
China
Brand Name :
CRYLINK
Certification :
Iso9001
MOQ :
1 Pieces
Price :
negotiation
Packaging Details :
Carton
Delivery Time :
3-4 weeks
Payment Terms :
TT
Supply Ability :
100 pieces /month
Model Number :
CRYLINK-Yb YAP Scintillator Crystal
Name :
Yb YAP Scintillation Detector
Light yield (Photon/MeV) :
1000
Decay time (ns) :
＜0.7
Peak emission (nm) :
330
Density (g/cm3) :
5.3
Hygroscopicity :
No
Description
Yb:YAP crystals

Yb-doped yttrium-aluminum perovskites (YAP:Yb) are expected to be scintillator materials with high light yield and short scintillation decay time because of their charge transfer (CT) luminescence.

Scintillation Properties

Materials

Yb:YAP

Light yield (Photon/MeV)

1000

Decay time (ns)

＜0.7

Peak emission (nm)

330

Energy resolution (%@622kev)

/

Density (g/cm3)

5.3

Hygroscopicity

No

Polishing Specification for Optical Grade

Standard Precision

High Precision

Super Precision

Orientation Tolerence

＜ 1°

＜ 0.5°

＜ 0.2°

Thickness/Diameter Tolerance

±0.10 mm

±0.05 mm

±0.02 mm

Surface Flatness@633nm

＜-2

＜/2-/4

/4-/6

Wavefront Distortion

＜(2-4)

＜(1-2)

＜(-/2)

Surface Quality

60/40

40/20

20/10

Parallel

45

1

10

Perpendicular

60

30

20

Clear Aperture

＞90%

Chamfer

＜0.2mm×45°

Coating

Available upon request
