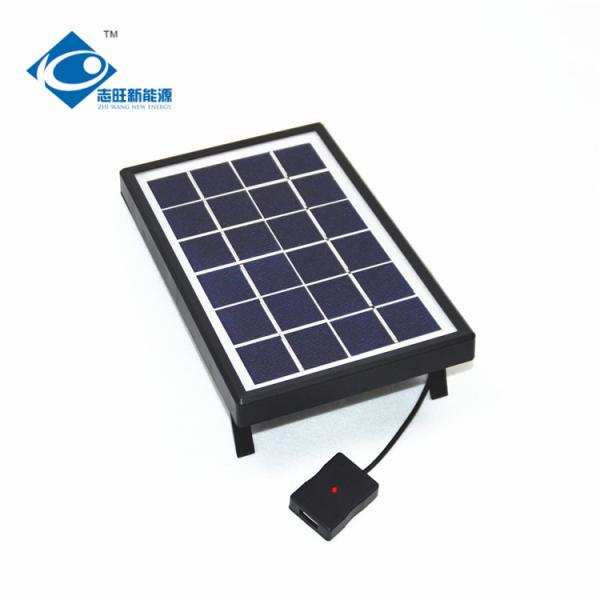

ZW-3W-6V-1 Mini Solar Photovoltaic Panels 3Watt Max Current 0.51A Mobile Battery Solar Panel Charger
Model: | ZW-3W-6V-1 | |
Brand: | Zhiwang | |
Size: | 220mmx135mmx17mm | |
Material: | Glass and plastic frame | |
Battery: | 12 | |
Peak power: | 3W | |
Max voltage: | 6V | |
Max current: | 0.51A | |
Open voltage: | 6.6V | |
Short current: | 0.57A | |
Size of Cell | 31.2*52mm | |
Weight: | 0.36KG | |
Keyword: | Glass Laminated Solar Panel | |
Front Glass: | 3.2mm, High Transmission, Low iron, tempered Glass | |
Color: | Customize | |
Raw Material: | Glass and Plastic Frame Poly-crystalline or Mono-crystalline Silicon EVA-------excellent anti-aging EVA TPT-------TPT hot seal made of flame resistance | |
Product Certification: | EMC CE ROHS | |
Operating temperature | -40°C to +85°C | |
Maximum system voltage | 10VDC | |
NOCT(Nominal Operating Cell Temperature) | 45°C (±2°C) | |
Ambient temperature | -20°C to +40°C | |
Operating temperature | -40°C to +85°C | |
Storage temperature | -40°C to +40°C | |
Humidity | below 85RH% | |
Corrosion resistance | Except for corrosive salt area and sulfurous area | |
Current temperature coefficient | %/K | 0.06+/-0.01 |
Voltage temperature coefficient | mV/K | -(78+/-10) |
Power temperature coefficient | %/K | -(0.5+/-0.05) |
Module characteristic:
High conversion rate and efficient output Polycrystalline Silicon
Low Price Mini Solar Panel with excellent weak light effect to charge solar kits system.
High quality and high transmittance of toughened glass special for low price mini solar panel.
The unique process makes the components look strong and anti-snow, and easy to install.
Special techniques to avoid mini solar panel the freezing and deformation of water in the frameSuitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.
Low price mini solar panel suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.
The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.
Quality Assurance Testing
Thermal cycling test
Thermal shock test
Thermal/Freezing and high humidity cycling test
Electrical isolation test
Hail impact test
Mechanical, wind and twist loading test
Salt mist test
Light and water-exposure test
Moist carbon dioxide/sulphur dioxide
* Quality solar cells with high solar energy conversion up to 19.5%.
* Mono-crystalline or poly-crystalline silicon solar cells are for options.
* Transparent low-irom tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
* Lifespan up to 25 years.
WARRANTY
* 10 year Product Workmanship Warranty
* 25 year Linear Power Warranty
Q. Are you a manufacturer or a trading company?
A. We are a factory in Yuyao, with OEM&ODM&Customization available.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our ZW-3W-6V-1 mini Solar Photovoltaic Panels for solar panel battery charger 3Watt Max Current 0.51A sample.
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your ZW-3W-6V-1 mini Solar Photovoltaic Panels for solar panel battery charger 3Watt Max Current 0.51A order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your ZW-3W-6V-1 mini Solar Photovoltaic Panels for solar panel battery charger 3Watt Max Current 0.51A samples or technical drawings. We can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery ZW-3W-6V-1 mini Solar Photovoltaic Panels for solar panel battery charger 3Watt Max Current 0.51A.
Q.How many years for warranty?
A.Our warranty is 10 -15 years for our ZW-3W-6V-1 Mini Solar Photovoltaic Panels 3Watt Max Current 0.51A Mobile Battery Solar Panel Charger.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Zhiwang New Energy attaches great importance to the development of new products.
In the past 15 years, the company has been developing itself.
We sincerely welcome new and old customers at home and abroad to visit!
