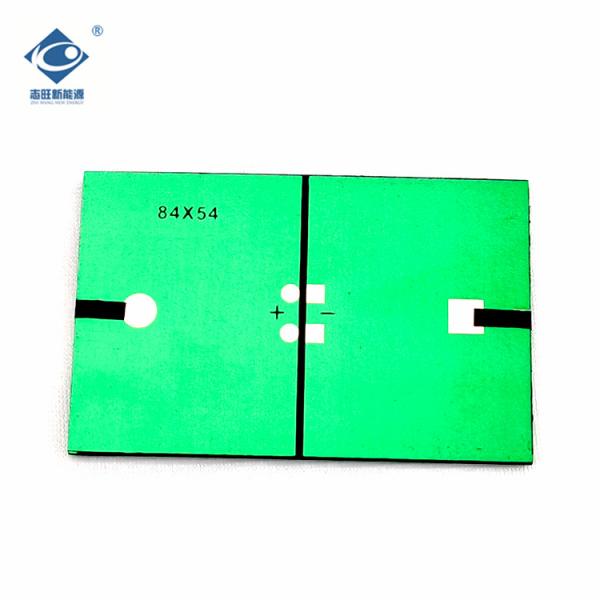

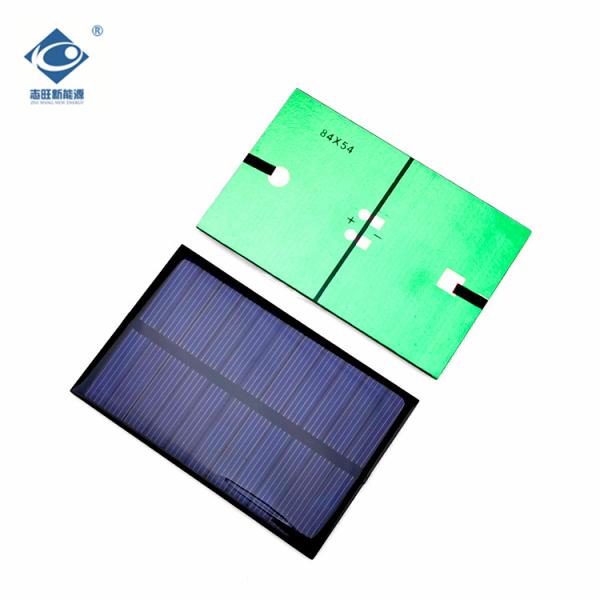

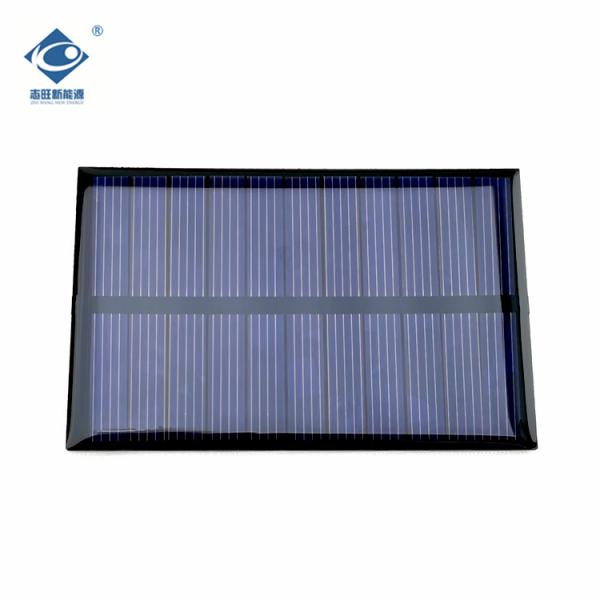

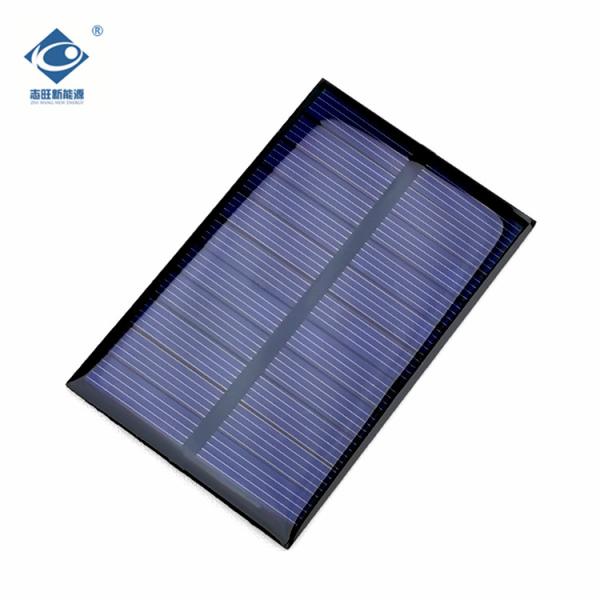

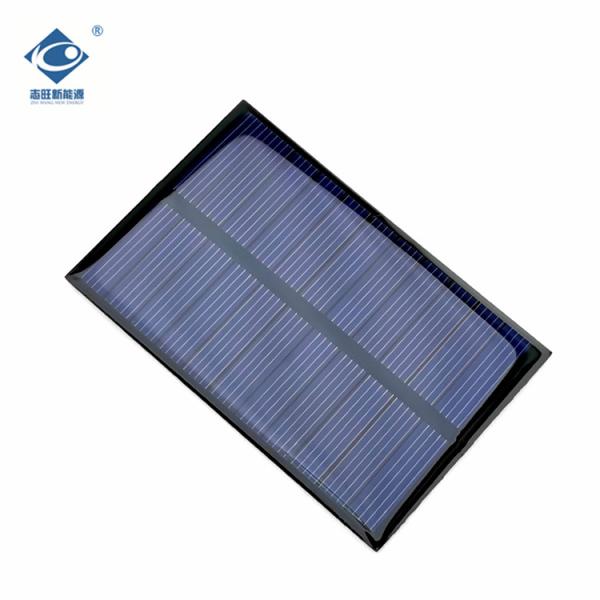

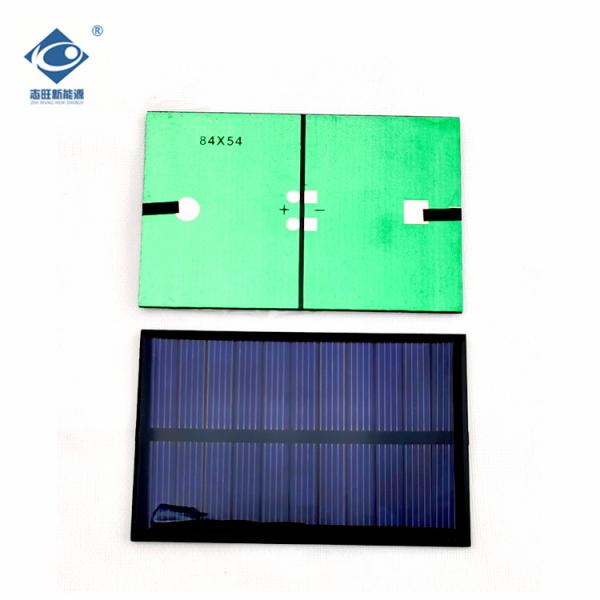

5.5V Strip Solar Photovoltaic Panel 0.6W Customizable Mini Epoxy Solar Panel ZW-8454 Solar Panel Charger

The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.

Features

1. High cell efficiency with quality silicon materials for long term output stability;

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;

4. Both Poly-crystalline and Mono-crystalline;

5. Excellent performance in harsh weather;

6. Outstanding electrical performance under high temperature and low irradiance;

7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;

8. The size and shape can be customized;

9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo-voltaic power plants and other fields.

10. Quality solar cells with high solar energy conversion up to 19.5%.

11. Mono-crystalline or poly-crystalline silicon solar cells are for options.

12. Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.

13. Lifespan up to 25 years.

14. Rigorous quality control meeting the highest international standards;

15. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;

16. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).

17. Resin/Epoxy PCB solar panel,effectively increase waterproof,dust proof,wear resistance,elastic,heat resistance.

18. ETFE and PET PCB surface available for solar panel photo-voltaic.

19. Super light to carry easy anytime, anywhere.

20. High efficiency poly crystalline cells in solar panel photo voltaic.

Quality Assurance Test
Thermal cycling test (provided by the supplier of floor material and surface material)
Thermal shock test (provided by the supplier of floor material and surface material)
Heat/freeze and high humidity cycle test (provided by the supplier of floor material and surface material)
Electrical isolation test (laboratory simulation data)
Hail impact test (laboratory simulation data)
Mechanical, wind and torsional load tests (laboratory simulation data)
Salt spray test (provided by the supplier of floor materials and surface materials)
Light and water exposure tests (laboratory simulation data)
Wet CO2 / SO2 (laboratory simulation data)
Test ambient temperature 25 ° C ±2 ° C
The humidity of the test environment is 60%-70%
Light intensity 40*1000 LUX
The vertical distance of light is 30cm
Open-circuit test multimeter
Load the test dedicated test stand
Application battery charging
Storage environment 20cm above the ground; Humidity of 60% 70%; The normal temperature
Working environment -20℃ - +85℃
Filling factor 78
