Specifications
Brand Name :
ZHIWANG
Model Number :
ZW-390100-P
Certification :
IS09001/14001/CE/TUV/UL,CE, EMC
Place of Origin :
CHINA
MOQ :
500 SETS
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders.
Supply Ability :
300sets/day
Delivery Time :
5-8 WORKING DAYS
Packaging Details :
Standard export carton package or wooden box; in well protected carton or wooden box with pallet. Usually,2sets in one carton.Then put the carton in wooden case.
Size: :
390mmx100mmx2.5mm
Battery: :
12
Optimized cell efficiency: :
17%-19%
Max Voltage: :
6V
Open voltage: :
6.6V
Material: :
Epoxy PET ETFE
Size of Cell :
92mm*30mm
Max current :
1.1A
Short Current :
1.9A
Description

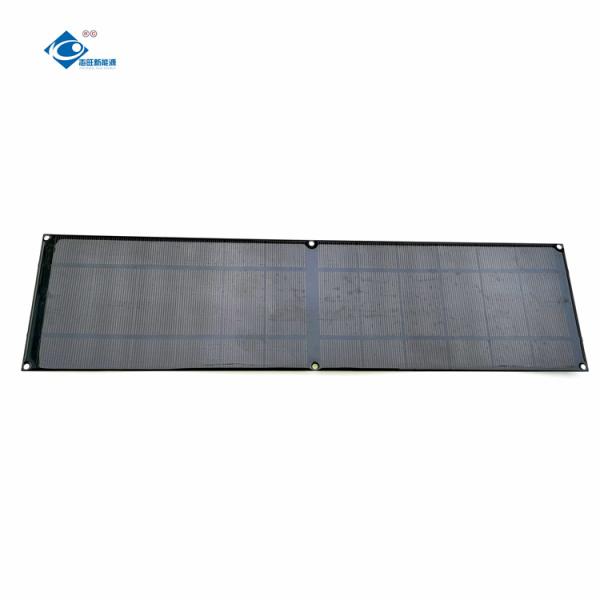

6.5W High Efficiency Epoxy Solar Panel ZW-390100-P Strip Solar Panels 6V Portable Solar Panel Charger

6.5W High Efficiency Epoxy Solar Panel ZW-390100-P Strip Solar Panels 6V Portable Solar Panel Charger

Product Description

6.5W High Efficiency Epoxy Resin Solar Panel ZW-390100-P Strip Solar Photovoltaic Panels 6V

Model: ZW-390100-P
Brand: Zhiwang
Size: 390mmx100mmx2.5mm
Material:

Glass and Plastic Frame

Poly-crystalline or Mono-crystalline Silicon

Epoxy resin adhesive or PET

EVA-------excellent anti-aging EVA

TPT---TPT hot seal made of flame resistance

Battery: 12
Peak power: 6.6W Mono
Size of Cell 92mm*30mm
Max voltage: 6V
Max current: 1.14A
Open voltage: 6.8V
Short current: 1.8A
Weight: 350G
Keyword: Strip Solar Photovoltaic Panels
Operating Temperature(°C) -40°C ~ + 85°C
Maximum System Voltage 8V(UL)/10V(IEC) DC
Maximum Rated Current Series 1A
Standard Testing Conditions

AM1.5 E=1000W/m2 T=25℃ Luminous intensity: 38000Lux

Test ambient temperature 25 ° C ±2 ° C
The humidity of the test environment is 60%-70%
Light intensity 40*1000 LUX
The vertical distance of light is 30cm
Open-circuit test multimeter
Load the test dedicated test stand
Application battery charging
Storage environment 20cm above the ground;

Humidity of 60% 70%; The normal temperature

Nominal Operating Cell Temperature 47+/-2°C
Current temperature coefficient %/K 0.06+/-0.01
Voltage temperature coefficient mV/K -(78+/-10)
Power temperature coefficient %/K -(0.5+/-0.05)

Zhiwang New Energy's solar panel module with high efficiency solar PV module adopts the worlds highest efficiency cell with efficiency up to 21%, and efficiency of the module is 25%-30% higher than the traditional ones.
This cell's positive pole and the negative pole are on the same side, the cell's front side can absorb maximum sunlight, so that it can get the maximum power.

Features
1. High cell efficiency with quality silicon materials for long term output stability;
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;
3. Used in glass laminated solar panels high transmittance low iron tempered glass or with enhanced stiffness and impact resistance;
4. Epoxy resin sealant materials with high transparency, high hardness and high strength are used in epoxy resin sealant solar panels;
5. In PET semi-flexible solar panels, high light transmittance, high hardness and high strength PET surface materials are used.
6. Excellent electrical performance at high temperature and low irradiance;
7. Can be widely used in decorative lights, electric toys, electronics, gifts and other industries;
8. Voltage, power, material, size and shape can be customized;
9. The products are widely used in solar lighting, lamps, household electricity, transportation, communications, meteorology, construction and photovoltaic power stations and other fields.
10. High quality solar cell, high solar energy conversion efficiency, up to 35%.
11. Monocrystalline or polycrystalline silicon solar cells are available.
12. Transparent low iron tempered glass and anodized alumina frame used in glass laminated solar panels ensure the modules work in extreme outdoor environments.
13. Glass laminated solar panels have a service life of up to 15 years. PET solar panels have a service life of up to 5 years; Epoxy rubber solar panels have a service life of 1-3 years.
14. Strict quality control, in line with the highest international standards;
15. Two professional plants of Zhiwang New Energy manufacture world-class products in accordance with iso9001:2008 (Quality management system) certification;

6.5W High Efficiency Epoxy Solar Panel ZW-390100-P Strip Solar Panels 6V Portable Solar Panel Charger

6.5W High Efficiency Epoxy Solar Panel ZW-390100-P Strip Solar Panels 6V Portable Solar Panel Charger6.5W High Efficiency Epoxy Solar Panel ZW-390100-P Strip Solar Panels 6V Portable Solar Panel Charger

6.5W High Efficiency Epoxy Solar Panel ZW-390100-P Strip Solar Panels 6V Portable Solar Panel Charger

6.5W High Efficiency Epoxy Solar Panel ZW-390100-P Strip Solar Panels 6V Portable Solar Panel Charger

6.5W High Efficiency Epoxy Solar Panel ZW-390100-P Strip Solar Panels 6V Portable Solar Panel Charger

6.5W High Efficiency Epoxy Solar Panel ZW-390100-P Strip Solar Panels 6V Portable Solar Panel Charger

Q. Are you a manufacturer or a trading company?

A. We are two factories in Yuyao,Zhejiang and Xuzhou, Jiangsu, we can deal with OEM & ODM, customization available.

Q. Is it OK to print my logo on solar paenl product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q. What is your terms of delivery?
A: EXW, FOB, CIF. And other accepted payment method.

Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q.How many years for warranty?

A: Our warranty is 5 -10 years.

6.5W High Efficiency Epoxy Solar Panel ZW-390100-P Strip Solar Panels 6V Portable Solar Panel Charger

Zhiwang New Energy attaches great importance to the development of new products.

In the past 15 years, the company has been developing itself.

It is committed to building the strongest production base of solar energy components, keeping in mind the concept of customer first, not relying on trust, honesty and pragmatism, pioneering and innovative, unity and harmony, the pursuit of excellence.
