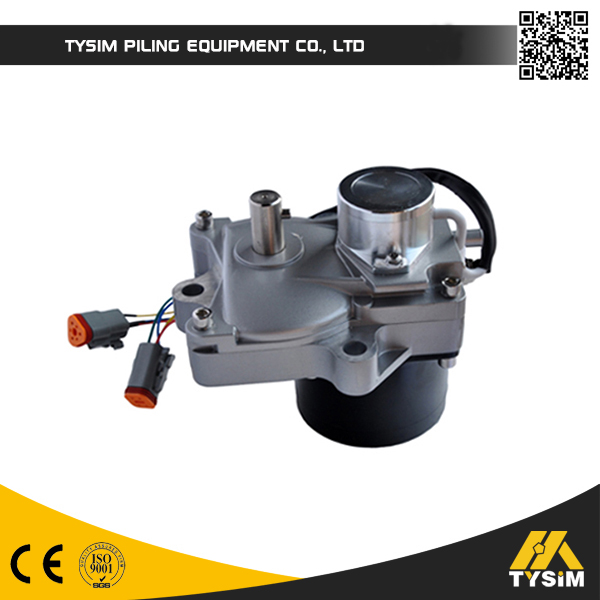

High Performance Electronic Throttle Body Assembly , Compact Engine Throttle Motor
High Performance Electronic Throttle Body Assembly , Compact Engine Throttle Motor
High Performance Electronic Throttle Body Assembly , Compact Engine Throttle Motor
High Performance Electronic Throttle Body Assembly , Compact Engine Throttle Motor
Specifications
Brand Name :
KaiQi
Model Number :
UTYM22148AA、UTYM15134AA
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 per month
Delivery Time :
5-10 workdays
Packaging Details :
Packed in cartons
Operating voltage sensor :
DC5V
Drive current :
≤3A
The maximum output torque :
25N.M
Rotation angle range :
0°~ 80°
Shaft speed :
1 r /min ~ 30 r/min
Working temperature :
-40℃~+80℃
Storage temperature :
-45℃~+85℃
Protection grade :
Front IP65
Atmospheric pressure :
86~106 KPa
Relative humidity :
20%~96% RH
Description

UTYM22148AA, UTYM15134AA stepper throttle motor

— Precise positioning, speed uniform, stable torque；

— Reduction gear with high hardness wear-resistant, long life；

— Compact structure；

Technical parameters of UTYM22148AA
Operating voltage sensor DC5V
Drive current ≤3A
The maximum output torque 25N.M
Rotation angle range 0°~ 80°
Step Angle 0.8°
Output shaft diameter Φ16
Direction of the axis of rotation CW / CCW
Shaft speed 1 r /min ~ 30 r/min
Degree of protection IP65
Working temperature -40℃~+80℃
Storage temperature -45℃~+85℃
Relative humidity 20%~96% RH
Atmospheric pressure 86~106 KPa
Anti-vibration characteristics GB/T 2423.10
Impact properties GB/T 2423.5
Shape feature Housing material: Aluminum
External Interface: 4-pin connector Chi Tak, Tak Chi 3-pin connector

High Performance Electronic Throttle Body Assembly , Compact Engine Throttle Motor

To provide customers with technical advice, help the user to choose the right andgood product.

1.Responsible for product quality, and carry out "three-item of warranty".

2.The warranty period of our product is a year or 2000 hours .

3.Aftersales service reply will be in a timely manner, timely processing.

FAQ

Thank you for your attention to our electrical products.

If you are interested in this color monitor, please tell us details of your requirements.

Then we will introduce the most suitable products to you.
