Hydraulic CFA Piling Rigs Pile Driving Equipments For 12m Drilling Depth 6 m Diameter Max. drilling depth 12 m
Hydraulic CFA Piling Rigs Pile Driving Equipments For 12m Drilling Depth 6 m Diameter Max. drilling depth 12 m
Hydraulic CFA Piling Rigs Pile Driving Equipments For 12m Drilling Depth 6 m Diameter Max. drilling depth 12 m
Hydraulic CFA Piling Rigs Pile Driving Equipments For 12m Drilling Depth 6 m Diameter Max. drilling depth 12 m
Hydraulic CFA Piling Rigs Pile Driving Equipments For 12m Drilling Depth 6 m Diameter Max. drilling depth 12 m
Hydraulic CFA Piling Rigs Pile Driving Equipments For 12m Drilling Depth 6 m Diameter Max. drilling depth 12 m
Specifications
Brand Name :
TYSIM
Model Number :
KR80M
Certification :
CE ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiation
Supply Ability :
10 sets per year
Delivery Time :
40 days after receiving the payment
Packaging Details :
Method One: Nude packing and overall transport by sea with roll-on-roll-off ship. Method Two: Flat rack container
Torque :
80 kN.m
Max. diameter :
600 mm
Max. drilling depth :
12 m
Transport height :
3070 mm
Transport width :
2600 mm
Transport length :
10535 mm
Operating Height :
16000 mm
Description
Multi - functional Hydraulic Piling Rig Machine , CFA Construction Borehole Pile Equipment Max Torque 80kNm

Technical Specification

Technical specification of KR80M rotary drilling rig (CFA &rotary drilling rig)

CFA construction method

 Max. diameter 600 mm
Max. drilling depth 12 m
Main winch line pull 140 kN

Rotary drilling construction method

 Max. Diameter 1000 mm
Max. drilling depth 28 m
Main winch line pull 140 kN
Main winch line speed 78 m/min

Working parameters

 Max. torque 80 kN.m
Auxiliary winch line pull 35 kN
Auxiliary winch line speed 40 m/min
Mast inclination(lateral) ±3°
Mast inclination(forward) 3°
Max. operating pressure 34.3 MPa
Pilot pressure 3.9 MPa
Travel speed 2.8 km/h
Traction force 98 kN

Operating size

 Operating height 18000 mm(CFA)/12580mm(rotary drilling)
Operating width 2700 mm

Transport size

 Transport height 3250 mm
Transport width 2700 mm
Transport length 9150 mm
Total weight Overall weight 24 t

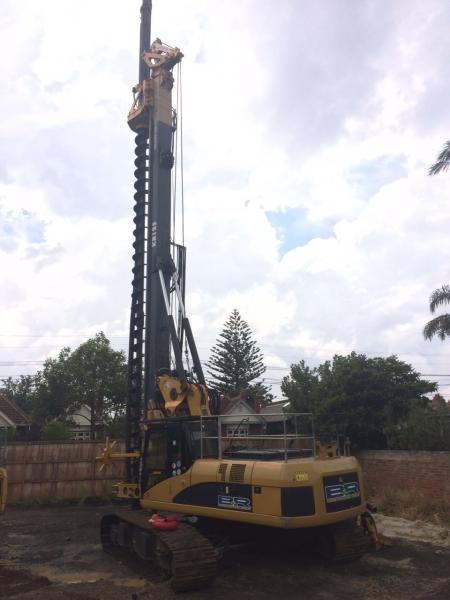

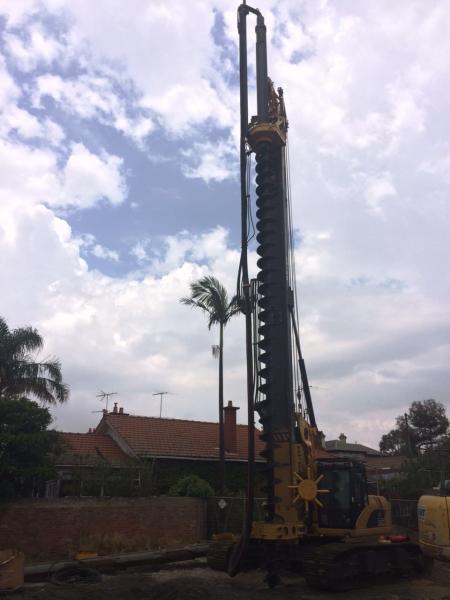

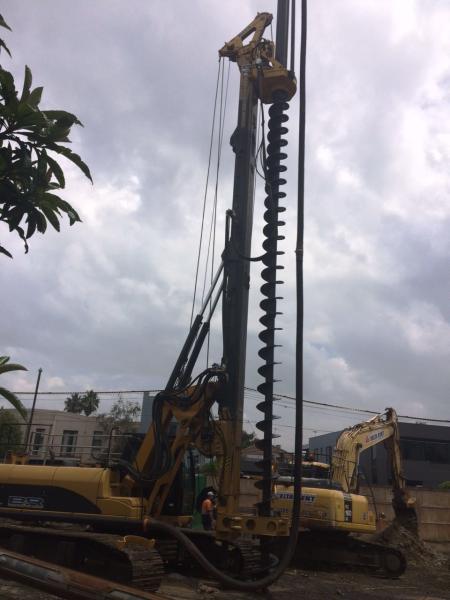

construction photos

Hydraulic CFA Piling Rigs Pile Driving Equipments For 12m Drilling Depth 6 m Diameter Max. drilling depth 12 m

Packing show

Hydraulic CFA Piling Rigs Pile Driving Equipments For 12m Drilling Depth 6 m Diameter Max. drilling depth 12 m

Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
