Auger Drill Piling Rig Machine Earth Travel Speed 1.5 Km/H 4300 Mm
Auger Drill Piling Rig Machine Earth Travel Speed 1.5 Km/H 4300 Mm
Auger Drill Piling Rig Machine Earth Travel Speed 1.5 Km/H 4300 Mm
Auger Drill Piling Rig Machine Earth Travel Speed 1.5 Km/H 4300 Mm
Specifications
Brand Name :
TYSIM
Model Number :
KR300C
Certification :
CE,ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, D/P, Western Union, MoneyGram
Supply Ability :
5 set per month
Delivery Time :
30-45 working days after receiving the advance payment
Packaging Details :
Method One: Nude packing and overall transport by sea with roll-on-roll-off ship. (L*W*H=9150*2600*3250 mm);
other name :
drill pipe with auger flight
Operating width :
4300 mm
Max. drilling depth :
54m/80m
Max. crowd pressure :
220 kN
Operating height :
22700 mm
Main winch line speed :
80 m/min
Pilot pressure :
3.9MPa
Traction force :
510 kN
Description
300 KN.M KR300 C Diameter 2000 Mm Depth 80 M Rotary Max Torque
Auger Drill Piling Rig Machine Earth Travel Speed 1.5 Km/H 4300 Mm

Technical Specification

Technical specification of KR300C rotary drilling rig
Torque 300kN.m
Max. diameter2200 mm
Max. drilling depth80/54 m
Speed of rotation7~23 rpm
Max. crowd pressure260 kN
Max. crowd pull260 kN
Main winch line pull340 kN
Main winch line speed72 m/min
Auxiliary winch line pull90 kN
Auxiliary winch line speed70 m/min
Stroke(crowd system)6000 mm
Mast inclination(lateral)±5°
Mast inclination(forward)5°
Max. operating pressure34.3 MPa
Pilot pressure3.9MPa
Travel speed1.5 km/h
Traction force510 kN
Operating height22685 mm
Operating width4300 mm




Competitive Advantage:


1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier in China

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

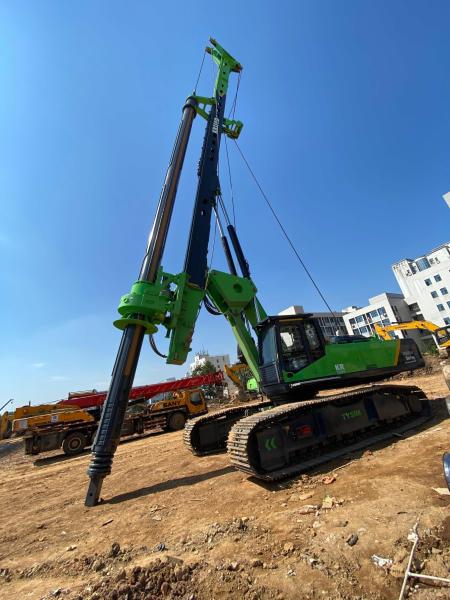

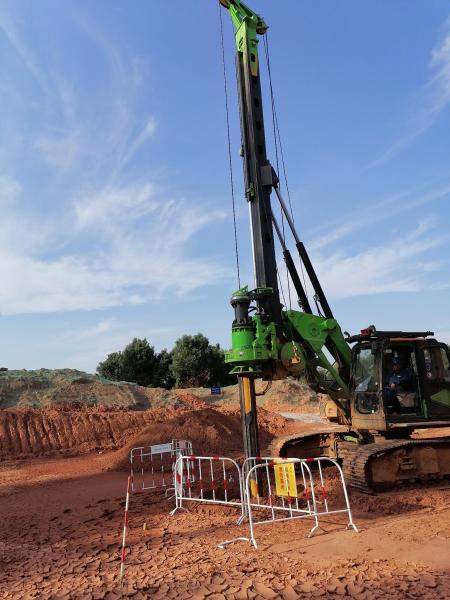

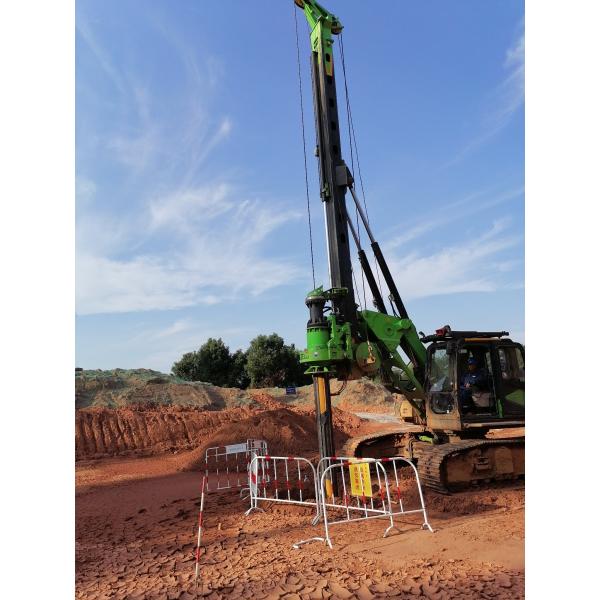

construction photos


Description:
1.The leading hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;
4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;
6. Mature overall transport design can improve transport efficiency, saving cost.

Auger Drill Piling Rig Machine Earth Travel Speed 1.5 Km/H 4300 Mm

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
