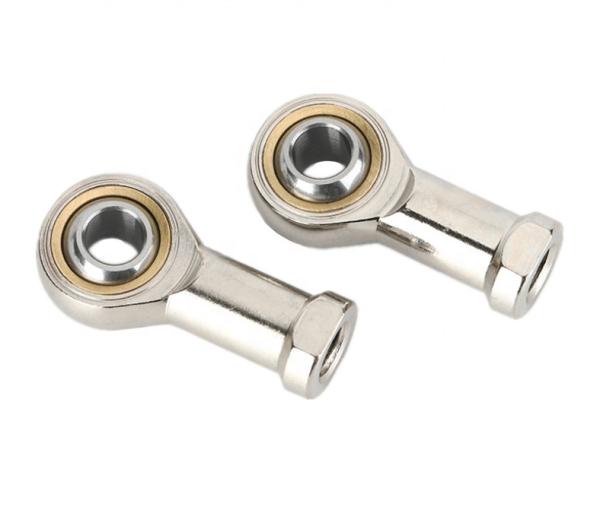

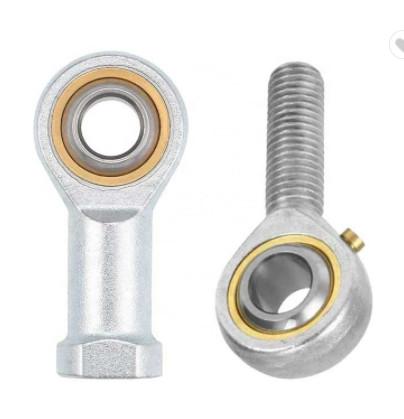

Customized Male Hydraulic Rod End Ball Joint Bearing PHS10 For Machinery
Customized Male Hydraulic Rod End Ball Joint Bearing PHS10 For Machinery
Customized Male Hydraulic Rod End Ball Joint Bearing PHS10 For Machinery
Customized Male Hydraulic Rod End Ball Joint Bearing PHS10 For Machinery
Customized Male Hydraulic Rod End Ball Joint Bearing PHS10 For Machinery
Customized Male Hydraulic Rod End Ball Joint Bearing PHS10 For Machinery
Specifications
Brand Name :
OEM
Model Number :
PHS10
Certification :
CO CE COC FOME FTA
Place of Origin :
CHINA
MOQ :
1PCS
Price :
0.5--1USD
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100000 /month
Packaging Details :
Box+ Carton + Pallet 30mm*40mm*25mm
Precision rating :
P0 P6 P5
Type :
Rod End
Package :
Plastic Bag+ Box+ Carton + Pallet
Market :
Europe,Asia,USA
Sample :
Free sample
Description

Original product Top Quality Ball Joint Rod End Bearings PHS10

hot sale rod end bearing PHS10 M10X1.5 PHS10-1 M10X1.25

Model rod end bearing PHS10 M10X1.5
Sizes rod end bearing PHS10-1 M10X1.25
Material steel/bronze, zinc coated, with oil hole

CODE Dimension(mm) Load ratings
KN		 Weight
d d3 6H B C1 W L3 min d2 L4 h1 L5 d4 d5 d1 α≈ dyn. Cd stat. Cs KG
PHS4 4 M4x0.7 7 5.25 8 8 14 31 24 4 8 9.5 6.5 13 3 5 0.009
PHS5 5 M5×0.8 8 6 9 10 16 35 27 4 8.5 11 7.7 13 3.25 5.7 0.016
PHS6 6 M6×1.0 9 6.75 11 12 18 39 30 5 10 13 8.96 13 4.3 7.2 0.022
PHS8 8 M8×1.25 12 9 14 16 22 47 36 5 12.5 16 10.4 14 7.2 11.6 0.047
PHS10 10 M10×1.5 14 10.5 17 20 26 56 43 6.5 15 19 12.9 13 10 14.5 0.077
PHS12 12 M12×1.75 16 12 19 22 30 65 50 6.5 17.5 22 15.4 13 13.4 17 0.1
PHS14 14 M14×2.0 19 13.5 22 25 34 74 57 8 20 25 16.9 16 17 24 0.16
PHS16 16 M16×2.0 21 15 22 28 40 84 64 8 22 27 19.4 15 21.6 28.5 0.22
PHS18 18 M18×1.5 23 16.5 27 32 44 93 71 10 25 31 21.9 15 26 42.5 0.32
PHS20 20 M20×1.5 25 18 30 33 50 102 77 10 27.5 34 24.4 14 31.5 42.5 0.42
PHS22 22 M22×1.5 28 20 32 37 54 111 84 12 30 38 25.8 15 47.5 68 0.54
PHS25 25 M24×2.0 31 22 36 42 60 124 94 12 33.5 42 29.6 15 47.5 68 0.73
PHS28 28 M27×2.0 35 24 41 48 66 136 103 14 37 46 32.3 15 58 75.5 0.98
PHS30 30 M30×2.0 37 25 41 51 70 145 110 15 40 50 34.8 17 64 88 1.1
