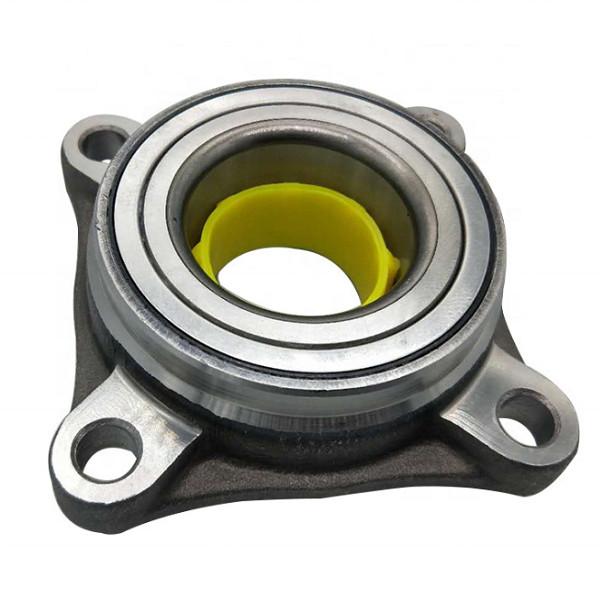

Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01
Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01
Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01
Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01
Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01
Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01
Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01
Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01
Specifications
Brand Name :
VCIXI, Q@J, or ODM/OEM
Model Number :
DU5496-5 43570-60010 90369-T0003 54KWH01
Place of Origin :
China
MOQ :
500pcs
Price :
6.5 USD
Payment Terms :
L/C, T/T
Supply Ability :
100000pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Single box
Material :
Chrome steel, Gcr15
Usage :
Automotive Wheel Hub Bearing,Wheel Hub Assembly,car,Hub Unit,for United States Lincoln
Type :
Wheel Hub Bearing Assembly,Ball,Deep groove ball bearing,auto car wheel bearing DAC38700037,Axle Bearing
Feature :
Long Life,low noise,High temperature,High Speed KOYO Wheel Hub Bearing DAC3568W-2CS65,Heavy Loading Duty
Main market :
America.Southeast Asia,Europe,Global,Southeast Asia,America and Europe
Car make :
Car,FAW/Volkswagen/Bora,DODGE JOURNEY,Automobile Application,atv
Description

Auto Bearing Front Wheel Hub Bearings DU5496-5 43570-60010 90369-T0003 54KWH01

DIMENSIONS ITEM NO. KOYO
d D B C
20 42 30 29 DAC20420030/29
25 52 37 37 DAC25520037
27 52 45 45 DAC27520045
28 58 42 42 DAC28580042 DAC28582RS
28 61 42 42 DAC28610042
27 60 50 50 DAC27600050
30 58 42 42 DAC30580042
30 60.03 37 37 DAC30600337 DAC3060W
30 62 32 32 DAC30620032
30 63 42 42 DAC30630042
30 64 42 42 DAC30640042 DAC3064WRKB
30 68 45 45 DAC30680045
30 72 30.2 30.2 DAC307200302 TVB3306
30 72 37 37 DAC30720037
32 72 45 45 DAC32720045
34 62 37 37 DAC34620037 IR-8051
34 64 37 37 DAC34640037 DAC3464G1
35 64 37 37 DAC35640037
35 64 37 37 DAC35640032 DAC3564A-1
35 66 32 32 DAC35660033
35 66 33 33 DAC35660033
35 66 35 35 DAC35650035
35 65 35 35 DAC35650035
35 66 37 37 DAC35660037
35 68.02 33 30 DAC35680233/30
35 68 37 37 DAC35680037 DAC3568A2RS
35 72.02 33 31 DAC35720233/31 DAC357233B-1W
35 72 33 33 DAC35720033 IR8055
35 72.04 33 33 DAC35720443 IR-8094
35 72 34 34 DAC35720534 DAC3572234A
36 68 33 33 DAC36680033 DAC3668W
36 72.05 34 34 DAC36720534 DAC367234A
37 72.02 37 37 DAC37720237 GB12807
37 72.04 37 37 DAC37720437
38 70 38 38 DAC38700038 DAC3870DW
38 71.02 33 33 DAC38710233/30 DAC3871W-2
38 70 37 37 DAC38700037
38 72.02 36 33 DAC38720236/33 DAC3872W-3
38 72 40 40 DAC38720040 DAC3872W-10
38 74.02 36 33 DAC38740236/33 DAC3874W-6
38 74 50 50 DAC38740050 NTNDE0892
39 68.07 37 37 DAC39680737
39 72 37 37 DAC39720037 DAC3972W4
39/41 75 37 37 DAC39/41750037
39 74 39 39 DAC39740039
40 72 36 33 DAC40720036/33
40 72 37 37 DAC40720037
40 74 36 34 DAC40740036/34 DAC4074CWCS73
40 74 40 40 DAC40740040 DAC407440
40 75 37 37 DAC40750037
40 76 33 33 DAC40760033
40 76 33 28 DAC40760033/28
40 76 41 38 DAC40760041/38 DAC4076412RCS
40 80 30.2 30.2 DAC408000302
40 80 36 34 DAC40800036/34 DAC4080M1
40 90 46 46 DAC40900046
42 72 38 38 DAC42720038
42 72 38 35 DAC427238/35
42 75 37 37 DAC42750037 DAC4275BW2RS
42 76 38 35 DAC40760038/35 NSK42BWD06
42 76 39 39 DAC42760039
42 76 40 37 DAC42760040/37 DAC427640 2RSF
42 80.03 42 42 DAC42800342 DAC4280B2RS
42 80 45 45 DAC42800045 DAC4280WHR4
42 82 36 36 DAC42820036 GB40574
42 82 37 37 DAC42820037
42 84 36 36 DAC42840036
42 84 39 39 DAC42840039 IR-8101
43 79 41 38 DAC43790041/38 DAC4379-1
43 80 50 45 DAC43800050/45 DAC4380A
43 82 45 45 DAC43820045 DAC4382W-3CS79
45 80 45 45 DAC45800045
45 84 39 39 DAC45840039
45 85 32.2 30.2 DAC458500302 DAC2004
49 84 39 39 DAC49840039
49 88 46 46 DAC49880046
50 90 34 34 DAC50900034

Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01

Auto Front Hub Bearing Wheel Hub Unit DU5496-5 43570-60010 90369-T0003 54KWH01

The main function of automobile hub bearing is to support the load and provide precise guidance for the rotation of the hub. It bears both axial load and radial load, and is a very important component. Traditional automobile wheel bearings are composed of two sets of tapered roller bearings or ball bearings. The installation, oiling, sealing and clearance adjustment of the bearings are all carried out on the automobile production line. This structure makes it difficult to assemble in automobile production plants, high cost, and poor reliability. Moreover, the bearings need to be cleaned, oiled and adjusted when the automobile is maintained at the repair point. The hub bearing unit is developed on the basis of standard angular contact ball bearings and tapered roller bearings. It integrates two sets of bearings into one body. It has good assembly performance, can omit clearance adjustment, light weight, compact structure, and load capacity. Large, sealed bearings can be pre-loaded with grease, omit the external hub seal and avoid maintenance, etc., has been widely used in cars, and there is a trend of gradually expanding applications in trucks.
