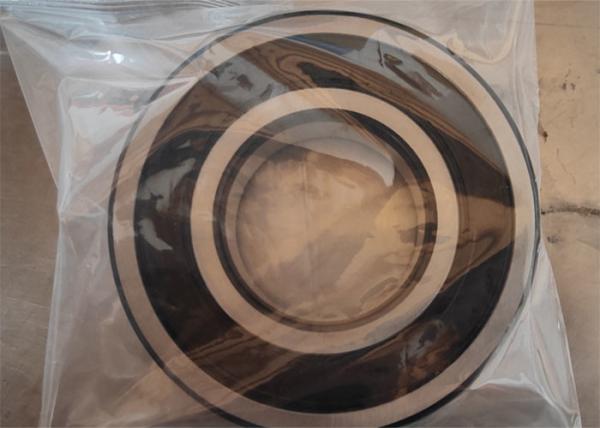

6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings
6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings
6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings
6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings
6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings
6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings
Specifications
Brand Name :
MCBB/ Customization/ Any famous brand
Model Number :
6313 2RSC3
Certification :
CE
Place of Origin :
Jinagsu Chinese
MOQ :
NO MOQ, 1pcs is ok.
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Payment online
Supply Ability :
30,0000pcs/month
Delivery Time :
Within 7days after confirmation
Packaging Details :
single PP bag+single color box+hardness carton+pallet
product name:e :
deep groove ball bearing puller 63132RSC3
Structure :
Deep Groove, Deep groove
ID :
65MM
OD :
140MM
B :
33MM
Weight :
2.18kg
Description

6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings

6313 2RSC3 Bearing Specification,

Model: 6313-2 rs1

Brand: SKF/FAG

Series: Deep groove ball bearings, single row, two - sided seals

Inside diameter: 65 mm

Outer diameter: 140 mm

Thickness: 33 mm

Weight: 2.18KG

6312 2RSC3 Deep Groove Ball Bearing Feature,

1. Deep groove ball bearings are generally composed of a pair of rings, a set of retainers and a set of steel balls. Its simple structure, easy to use, is the most common production, the most widely used type of bearings.

2. This type of bearing is mainly used for bearing radial loads, but it can also bear a certain amount of axial loads in either direction.

3. When the radial oil gap of the bearing is enlarged within a certain range, the bearing has the property of angular contact ball bearing and can bear larger axial load.

4. When a deep groove ball bearing is mounted on the shaft, the axial displacement of the shaft or housing can be limited within the axial range of the bearing.

5. Also, crumbs can still work normally when the shell hole and shaft (or outer ring, as defined by the clearance) are relative to the inside ring. Since there is tilt, it is necessary to reduce the bearing service life.

6312 6313 6314 series ZZ 2RSC3 Deep Groove Ball Bearing Applied to Motor,

d

D

B

D2

Da max

d1

da min

ra min

r min

m

Cr

Cor

nG

nB

Cur

65mm

140mm

33mm

122.2mm

128mm

88.3mm

77mm

2.1mm

2.1mm

2.18kg

98000 N

6000 N

30001/min

0 1/min

3950N

6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings


Products Show,

6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings
6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings
6312 6313 6314 ZZ 2RSC3 Motor Single Row Deep Groove Ball Bearings

If you have any questions, Please contact us for price list.
