High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant
High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant
High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant
High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant
High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant
High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant
High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant
High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant
Specifications
Brand Name :
MCBB/ Customization/ Any famous brand
Model Number :
6324-ZZC3
Certification :
CE
Place of Origin :
Wuxi, Jiangsu
MOQ :
NO MOQ, 1pcs is ok.
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Payment online by credit card, Dirct RMB from abroad
Supply Ability :
30,0000pcs/month
Delivery Time :
Within 7days after confirmation
Packaging Details :
single PP bag+single color box+hardness carton+pallet
Product name :
6324-2ZC3 skf deep groove ball bearing
Weight :
12.2kg
Inner Diameter :
120mm
Outer Diameter :
260mm
Thickness :
55mm
Row :
Single
Description

High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant

Single row deep groove ball bearing application, Description,

1. 6324 ball bearing is a single row deep groove ball bearings, open type, 2RS, ZZ.

2. 6324 bearing belongs to deep groove ball bearing series, mainly used for storage tank, metallurgy, wire peeling machine, stir-fry machine, packaging machinery, packaging testing machine, guide column, guide sleeve, gear, impact testing machine, automotive lights and other equipment.

3. Radial load and axial load acting at the same time, known as combined load. The most important factor that affects the bearing capacity of axial load is the Angle between it and the axis. The larger the Angle, the more suitable for bearing 6322 axial load! Bearing inner diameter: 110, outer diameter: 240;

Deep groove ball bearing single row, Specification,

Bearing Model 6324/ 6324-2Z/C3, 6324-2RS/C3, 6324M
d 120mm
D 260mm
B 55mm
D1 214.9mm
Da max 246mm
d1 165.1mm
da min 134mm
ra max 2.5mm
r min 3mm
m 12.8kg in weight
Cr 225000N, basic rated dynamic load, radial
C0r 190000N, basic rated static load, radial
nG 6000 1/min, limit speed
nB 3850 1 1/min, reference speed
Cur 9000N, fatigue limit load, radial
High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature ResistantHigh Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature ResistantHigh Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant

Why choose mcbb bearing,

Supporting Paypal, credit card online. Direct factory sale.

SKF deep groove ball bearing, Feature,

The advantages of the 6324 bearing are: low noise at high speed, the structure can not be divided. When using 6322 bearing, it should be noted that: 6322 common parts: TN: injection molded nylon cage,TN9: injection molded fiberglass reinforced nylon 6,6 cage,VL0241: outer ring outer surface with alumina coating, insulation capacity up to 1000VDC.

More model of 6300series,

Bearing
NO.		 Old NO. ID OD B Cr Cor Max Speed Max Speed Mass
(Grease) (Oil)
(mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
6300 300 10 35 11 7.65 3.48 18000 24000 0.053
6301 301 12 37 12 9.72 5.08 17000 22000 0.06
6302 302 15 42 13 11.5 5.42 16000 20000 0.082
6303 303 17 47 14 13.5 6.58 15000 18000 0.115
6304 304 20 52 15 15.8 7.88 13000 16000 0.142
6305 305 25 62 17 20.6 11.3 11000 13000 0.232
6306 306 30 72 19 26.7 15 6600 12000 0.346
6307 307 35 80 21 33.4 19.3 8500 10000 0.457
6308 308 40 90 23 40.8 24 7000 8500 0.639
6309 309 45 100 25 52.8 31.8 6300 7500 0.837
6310 310 50 110 27 61.8 38 6000 7000 1.082
6311 311 55 120 29 71.5 44.8 5600 6700 1.367
6312 312 60 130 31 81.8 51.8 5000 6000 1.71
6313 313 65 140 33 93.8 60.5 4500 5300 2.1
6314 314 70 150 35 105 68 4300 5000 2.55
6315 315 75 160 37 113 76.8 4000 4800 3.05
6316 316 80 170 39 123 86.5 3800 4500 3.61
6317 317 85 180 41 132 96.5 3600 4300 4.284
6318 318 90 190 43 145 108 3400 4000 4.97
6319 319 95 200 45 157 122 3200 3800 5.74
6320 320 100 215 47 173 140 2800 3600 7.09
6321 321 105 225 49 184 153 2600 3200 8.05
6322 322 110 240 50 205 178 2400 3000 9.53
6324 324 120 260 55 228 208 2200 2800 12.2
6326 326 130 280 58 253 242 2000 2600 14.77
6328 328 140 300 62 275 272 1900 2400 18.33
6330 330 150 320 65 288 295 1700 2200 21.87
6332 332 160 340 68 313 340 1600 2000 26.43
6334 334 170 360 72 335 378 1500 1900 31.14

Application,

Bearing 6324 can also be used in: catering industry equipment pneumatic pump thermal shrinkage packaging machine concrete mechanical mixer ceramic cutting machine multi-functional packaging machine stone machinery aerospace sand making machine sealing machine brick making machine mixing equipment ceramic carving machine filling machine ceramic production line cement machinery vertical pump filling machine tile machinery.

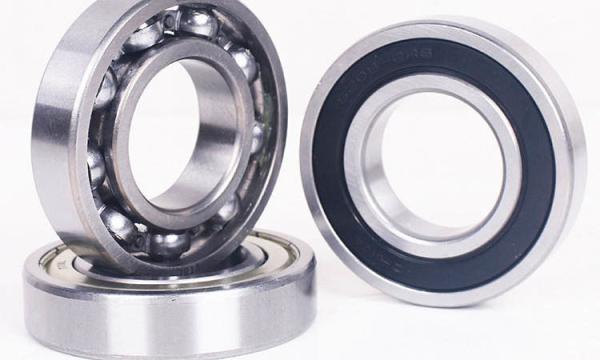

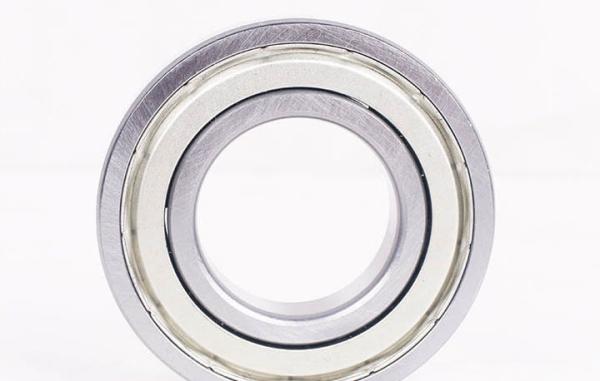

Product pictures show,

High Precision 6324 ZZ/C3 Axial Deep Groove Ball Bearing High Temperature Resistant

If you need this types bearings, welcome contact us for its price list.
