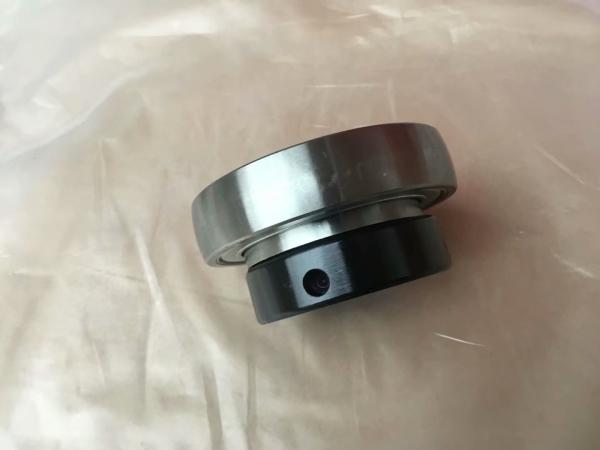

Steel Harvesters Pillow Block Ball Bearing Agriculture Use Pillar Block Bearing​

UC204 ball bearing descritpion,

1. UC204 ball bearings support Gcr15, Stainless steel... mainly match with pillow block with housing to work. Supporting many brand or customer's logo.

2. UC204 bearings are coded as UC200 series (light series), UC300 series (heavy series), and deformed products UB (SB) 200 series. If the use environment is small, generally choose UC200 series, otherwise choose UC300 series. Generally, there are two top wires on the outer spherical ball bearing, and the included angle is 120 °. Its characteristic is that when it is matched with the shaft, the top wire is used to press on the shaft to play a fixed role, but its matching Environmental requirements must have a small vibration range.

3. This kind of outer spherical ball bearing is relatively common and is widely used in various manufacturing industries such as textile machinery and ceramic machinery.

NSK ball bearing Quick details specificate,

1. Thickening rod

2. Delicate feel without burrs

3. Large flate nail thick retainer

4. High carbon/chromiun bearing steel

Steel Harvesters Pillow Block Ball Bearing Agriculture Use Pillar Block Bearing​,

Model: UC204
Dimension: 20x47x31x14mm
Type: spherical outside surface ball bearings( insert bearings)
Feature: high rotation speed, low noise, long life service
Temperature of ring: 60C°(140°F) or less
Temperature environment: 25°C(80°F) or less
Precision: ABEC-7 (ABEC-1 to ABEC-9 in optional)
HS code: 8483200000
Weight: 0.15kgs
UC204 Diemnsional Drawing
d	D	B	C	d1	B4	r1,2	s1	G2
20	47	31	14	28.2	4.5	0.6	18.3	M16x0.75

Installing pillow block bearing Operating Temperature,

1. The ball bearings UC204 mainly operate the temperature of 120°C ( the measuring temperature of the outer ring is about 100°C).

With large load capacity, very nice sealing quality, self aligning, very easy to install and maintain.

Competitive advantage,

We support sample purchase, NO MOQ, 1pcs is ok.

Picture & Package,

There are hardness outer carton and wooden to pack.

1. If wanna reduce the weight to save the cost on shipment, we will choose hardness outer carton to package.

2. If wanna protect the bearings to broken on the single box, we will choose wooden case to keep its all in good.

FAQ,

1. Can we take the sample for checking?

Yes, sure. Our MCBB support sample for testing its quality.

2. Will you suggest us the documents for shipment?

yes, sure. There are many choice for you choosing.

3. How is your guarantee?

We support 7days refund in case of bad quality. To sign the International Sale contract.

4. Do you accept less deposit?

Yes, less deposit is accepted.

Action now, Welcome contact us for prict list!!!
