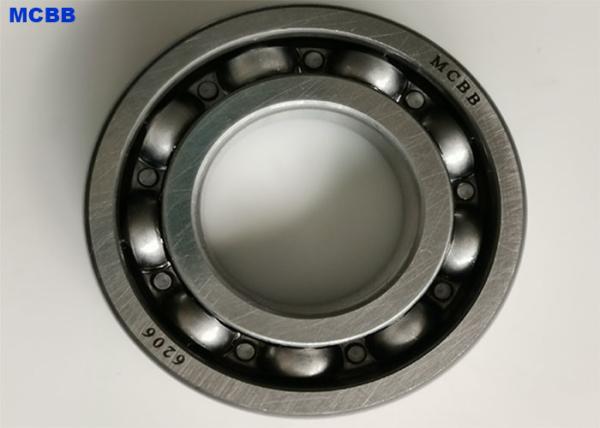

Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant
Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant
Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant
Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant
Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant
Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant
Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant
Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant
Specifications
Brand Name :
MCBB/ Customization/ Any famous brand
Model Number :
6206
Certification :
CE
Place of Origin :
Jinagsu Wuxi
MOQ :
NO MOQ, 1pcs is ok.
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Payment online by credit card, Direct RMB from aborad
Supply Ability :
30,0000pcs/month
Delivery Time :
Within 7days after confirmation
Packaging Details :
single PP bag+single color box+hardness carton+pallet
Product name :
ball bearing 6206
Structure: :
Deep Groove
Model :
6206
ID :
30mm
OD :
62mm
Thickness :
16mm
Description

Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant

Description,

SKF bearing SKF 6206 6207 6208-2RS12Z / C2 / VA201 high speed precision high temperature SKF bearing.

Ball bearing wheels, Specification,

Bearing Model 6206, 6206-2RS, 6206-ZZ
d 30mm
D 62mm
B 16mm
D1 52.1mm
Da max 56.4mm
d1 40mm
da min 35.6mm
ra max 1 mm
r min 1mm
m 0.195kg
Cr 20700 N Basic dynamic load rating, radial
C0r 11300 N Basic static load rating, radial
nG 14000 1/min Limit speed
nB 12000 1/min Reference speed
Cur 680 N Fatigue limit load, radial

Deep groove ball bearings single row, Feature,

1. High torque for low friction.


2. Imported bearing material with high accuracy and long service life.


3. The bearing has a high speed limit and is not easy to get hot.


4. Imported materials improve precision

6200 series deep groove ball bearing model,

Bearing No. Size(mm) Weight(kg)
6200 10*30*9 0.032
6201 12*32*10 0.037
6202 15*35*11 0.045
6203 17*40*12 0.065
6204 20*47*14 0.106
6205 25*52*15 0.128
6300 10*35*11 0.053
6301 12*37*12 0.060
6302 15*42*13 0.082
6303 17*47*14 0.115
6304 20*52*15 0.144

Bearing Type
Principal Dimensions
(mm)
Basic Load Ratings
(KN)
limiting Speeds
(r/min)
Reference weight
(KG)
d
D
B
Cr
Cor
Crease
Oil
Wt
6200
10
30
7
5.100
2.390
24000
30000
0.032
6201
12
32
10
6.800
3.050
22000
28000
0.037
6202
15
35
11
7.650
3.750
20000
24000
0.045
6203
17
40
12
9.550
4.800
17000
20000
0.067
6204
20
47
14
12.800
6.600
15000
18000
0.107
6205
25
52
15
1.400
7.850
13000
15000
0.129
6206
30
62
16
19.500
11.300
11000
13000
0.119
6207
35
72
17
25.7
15.4
8800
11000
0.291
6208
40
80
18
30.9
19
7800
9700
0.366
6209
45
85
19
30.9
19.4
7200
8900
0.413
6210
50
90
20
35.1
23.3
6700
8300
0.467
6211
55
100
21
43.4
29.3
6100
7500
0.608
6212
60
110
22
47.8
33.1
5500
6800
0.798
6213
65
120
23
57.2
40.2
5100
6300
0.974
6214
70
125
24
60.8
45.1
4800
5900
1.110
6215
75
130
25
66.1
49.6
4600
5700
1.170
6216
80
140
26
72.7
53.1
4300
5300
1.370

Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant

Application,

Bearing 6206 can also be used for: combined machine tool non-leakage pump cutting machine homogenization equipment reflow welding machine quilting machine milling machine cutting equipment medical gas shielded welding machine medical auxiliary equipment industrial sewing machine thread rolling machine seam equipment plasma welding machine Fabric inspection machine, bending machine, lace machine, energy saving welding machine.

Cylinder Flange Deep Groove Ball Bearings ABEC-5 Good Wear Resistant

Action contact us now for its price list.
