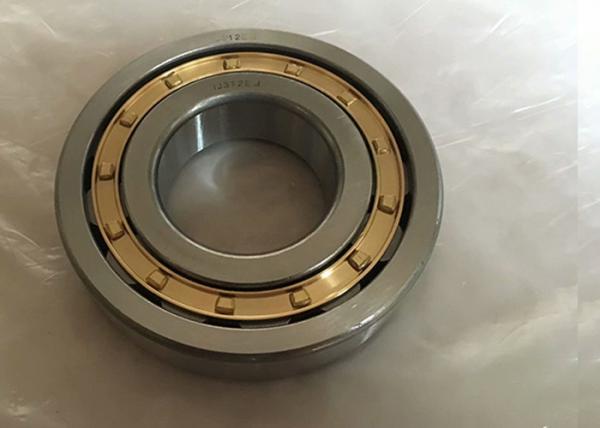

Full Complement Cylindrical Roller Bearings NU205 Open Seal Type
Full Complement Cylindrical Roller Bearings NU205 Open Seal Type
Full Complement Cylindrical Roller Bearings NU205 Open Seal Type
Full Complement Cylindrical Roller Bearings NU205 Open Seal Type
Full Complement Cylindrical Roller Bearings NU205 Open Seal Type
Full Complement Cylindrical Roller Bearings NU205 Open Seal Type
Full Complement Cylindrical Roller Bearings NU205 Open Seal Type
Full Complement Cylindrical Roller Bearings NU205 Open Seal Type
Specifications
Brand Name :
MCBB/ Customization/ Any famous brand
Model Number :
NU205 skf cylindrical roller bearing
Certification :
ISO9001:2008
Place of Origin :
Jiangsu China
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB
Supply Ability :
10000pcs/Month
Delivery Time :
Within 7days after confirmation
Packaging Details :
Waterproof single PP bag+ single color box+ hardness outer carton+ Pallet
Product Name :
NU205 single ball bearing roller
Type :
Roller
Seal Type :
Open
Row :
Single
Cage :
Steel, Cage, Nylon in optional
Vibration :
V1V2V3V4
Description

Full Complement Cylindrical Roller Bearings NU205 Open Seal Type

Description,

Model nu305 Bearing
Brand mcbb
Structure Single row NU / N / NJ / NF / NUP
Double rows NN / NN-K / NNU-K / NNCF / NNCL / NNCS
Four rows FC/FCD/FCDP
Precision Rating P0,P6,P5,P4,P2(ABEC1,ABEC3,ABEC5,ABEC7,ABEC9)
Clearance C2,C0,C3,C4,C5
Viberation Level V1,V2,V3,V4
Material GCr15/GCr15SiMn
Application

Widely used in metallurgy, mining, petroleum, chemical, coal, cement, paper,

windpower, heavy machinery, enginnering machinery, port machinery and other

industries.
Delivery time 1) 3-5days for samples
2)10-15days
Payment terms 1) 30%TT in advance,70%balance has to be paid before first shipment.
2) 100%LC at sight
3) Western Union
4) Paypal
5) other payment terms depend on our discussio

Axial cylindrical roller bearings, Specification,

cylindrical roller bearings NU205 NU305 NU405 NJ N NUP
NU205
25x52x15mm
NU305
25x62x17mm
NU405
25x80x21mm

Full Complement Cylindrical Roller Bearings NU205 Open Seal Type

Features,

NU design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of

the shaft with respect to the housing can be accommodated in both directions.
N design
The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the

shaft with respect to the housing can be accommodated in both directions.
NJ design
The outer ring of an NJ design bearing has two integral flanges and the inner ring has one integral flange. These bearings

can locate the shaft axially in one direction.
NUP design
The outer ring of an NUP design bearing has two integral flanges and the inner ring has one integral flange and one non-

integral flange in the form of a loose flange ring. These bearings can be used as locating bearings to locate the shaft axially

in both directions.
The cylindrical roller bearing with a high load capacity, to operate at high speed application, because they use roller as their

rolling elements.

Full Complement Cylindrical Roller Bearings NU205 Open Seal Type

Full Complement Cylindrical Roller Bearings NU205 Open Seal Type

If you need the bearing price list, welcome contact us.
