Reinforced High Temperature Pillow Block Ball Bearing , Agricultural Bearing
Reinforced High Temperature Pillow Block Ball Bearing , Agricultural Bearing
Reinforced High Temperature Pillow Block Ball Bearing , Agricultural Bearing
Reinforced High Temperature Pillow Block Ball Bearing , Agricultural Bearing
Reinforced High Temperature Pillow Block Ball Bearing , Agricultural Bearing
Reinforced High Temperature Pillow Block Ball Bearing , Agricultural Bearing
Reinforced High Temperature Pillow Block Ball Bearing , Agricultural Bearing
Reinforced High Temperature Pillow Block Ball Bearing , Agricultural Bearing
Specifications
Brand Name :
MCBB/ Customization
Model Number :
UCP209
Certification :
CE
Place of Origin :
Jiangsu China
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C, , T/T, Western Union, MoneyGram, Paypal, Direct RMB, Payment online by credit card, Direct RMB from aborad
Supply Ability :
30,0000pcs/month
Delivery Time :
Within 7days after confirmation
Packaging Details :
1pc/plastic bag+ single color box+ carton + plywood pallets
Product name :
UCP209 2 inch pillow block bearing
Inner Side :
45mm
Outer side :
54mm
Thickness :
190mm
Weight :
2.15kg
Ball bearing :
UC209
Housing :
P209
Feature :
High speed
Description

Reinforced High Temperature Pillow Block Bearings Agricultural

2 bolt pillow block bearing, Description,

1. UCP209 bearing is a metric spherical bearing with seat and inner diameter of 45mm and outer diameter of 54mm.

2. Bearing is an important part of modern mechanical equipment, its main function is to support the mechanical rotating body, reduce the friction coefficient in the process of movement, and ensure its rotary precision.

3. The outer spherical bearing with the top wire is used for the through shaft with large stiffness difference and deflection. The bearing has two sealing rings on both sides, which can strictly prevent the invasion of dirt.


Sealed pillow block bearings, Specification,

Bearing Model ID OD Width Weight
UCP209 45 49.2 192 -
UCP209-28 44.4500 54.0000 190.0000 2.300
UCP209-27 42.8620 54.0000 190.0000 2.300
UCP209-26 41.2750 54.0000 190.0000 2.300


High temperature pillow block bearings, Feature,

1. Good shock absorption, good release of torque.

2. Good quality, feel smooth and comfortable wear and corrosion resistance.

3. Good performance, uniform drilling speed and mechanical coordination strong ultra-low noise.

4. Good material, the choice of bearing steel manufacturing with uniform hardness longer and more durable.

Why choose mcbb bearing,

Offering free sample for checking its quality in first.

More bearing model for reference,

Unit No.
Dimensions(mm)
Bolt Size(mm)
Bearing No.
Housing No
Weight(kg)
UCP207
35X167X93X42.9
M14
UC207
P207
1.6
UCP208
40X184X100X49.2
M14
UC208
P208
1.9
UCP209
45X190X106X49.2
M14
UC209
P209
2.2
UCP210
50X206X114X51.6
M16
UC210
P210
2.6
UCP211
55X219X126X55.5
M16
UC211
P211
3.3

Application,

UCP209 special agricultural bearings are widely used in transportation system machinery, agricultural equipment, agricultural machinery and other industries.

UCP209 is always available product to ship within only 7days.

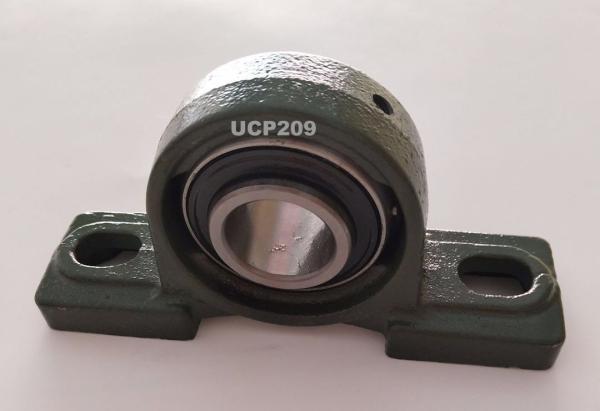

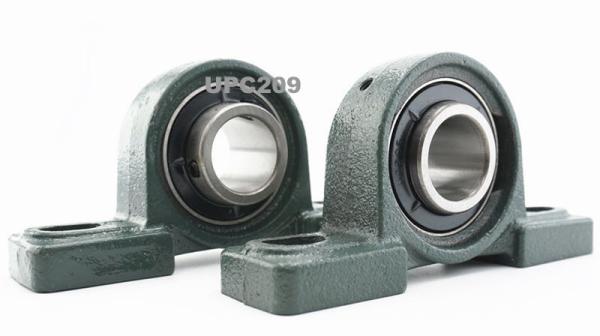

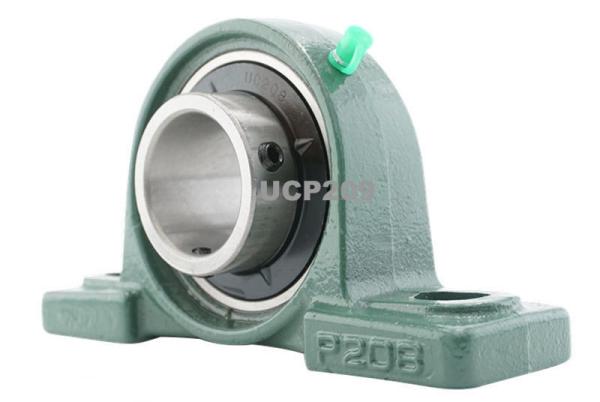

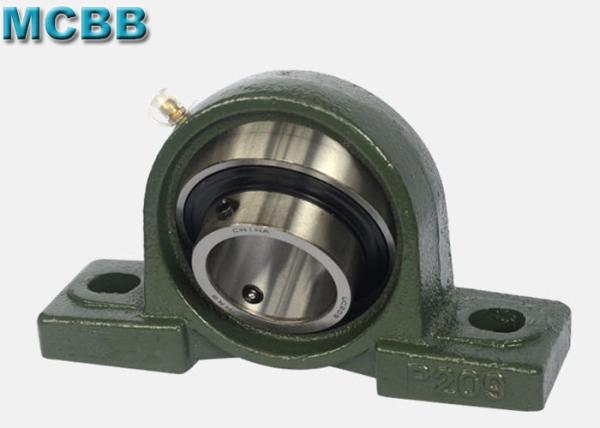

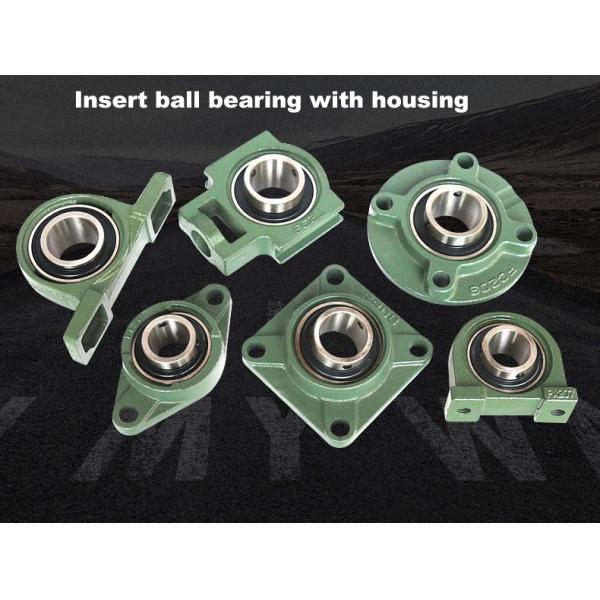

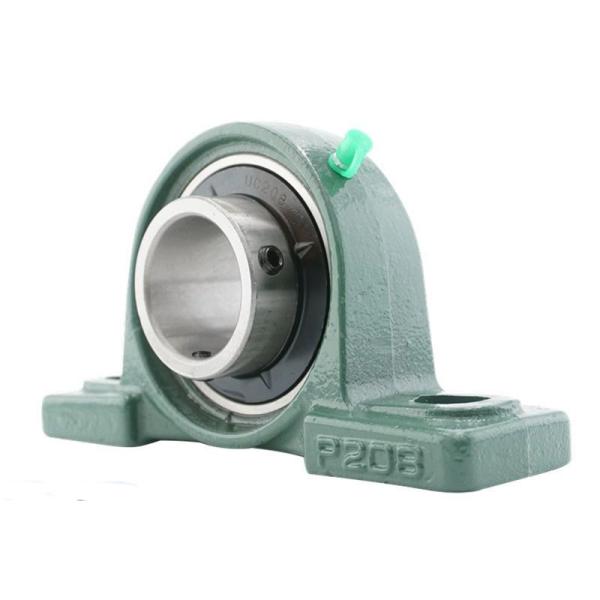

Product pictures show,
