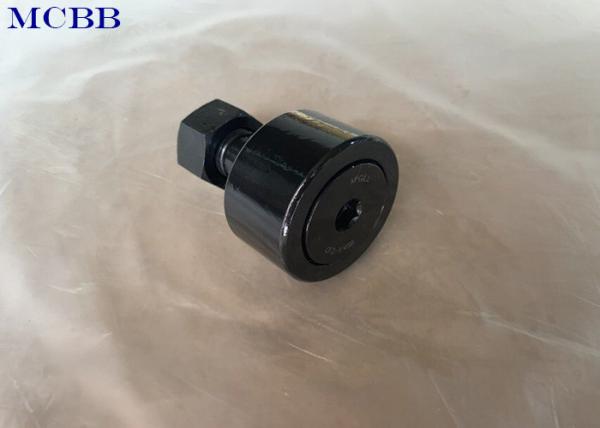

High Quality CF-2 1/2 CF2 1/2 Inch Stud Type Cam Follower Track Roller Bearing

Description,

single-row full-load needle rollers, the diameter, length and number of needle rollers have been optimized to achieve high dynamic and static rated load capacity with industry standard bearing housing dimensions. Thick-walled outer ring The thick-walled outer ring helps support radial loads and provides proper support for rolling elements. Cylindrical outer diameter (OD). Cylindrical outer diameter can improve performance in some applications, such as by increasing the contact area of the raceway to increase the load-carrying capacity of the raceway. Locally hardened raceways Heat treatment is used to precisely harden the raceway and flange working surfaces. The hardened surface provides support for the contact stress of the rolling elements while maintaining the toughness of the inner core layer to absorb impact loads.

Why Choose Us?

Left rear wheel bearing, Specification,

More bearing model for reference,

Cam Design,

There are several types of MCGILL imported bearing cam follower series available for you to choose. The oxide blackening treatment, all the outer surface of the bearing have been oxidation blackened. LUBRI-DISC? Seal The LUBRI-DISC seal is a standard CAMROL seal that helps prevent contaminants from entering the bearing and helps to provide lubrication to the bearing. It has an integral support plate to prevent the outer ring and end plates Or metal-to-metal contact between flanges. The support plate reduces friction, thereby reducing the operating temperature of the bearing, which can extend the life of the grease and allow the bearing to operate at higher speeds. The seal also has vent holes to help prevent seals from bursting during relubrication, and the outer raceway is machined with an oil reservoir to increase lubricant capacity. The LUBRI-DISC sealing option enables a good balance of sealing, lubricant capacity and low resistance operation, which is critical for precision cam follower bearings, making them suitable for most industrial applications.

The flange-type outer diameter (OD) of the cam follower can increase bearing life compared to standard cylindrical cam follower MCGILL bearings. Cams help distribute stress on the outer ring and rolling elements due to misassembly or stud bending. The cam also helps to reduce slippage of the outer ring in swivel or rotary applications. Not all applications take advantage of the flange outer diameter. Ask the application engineering department for guidance on your application.

If you need bearing quotation, welcome contact us.
