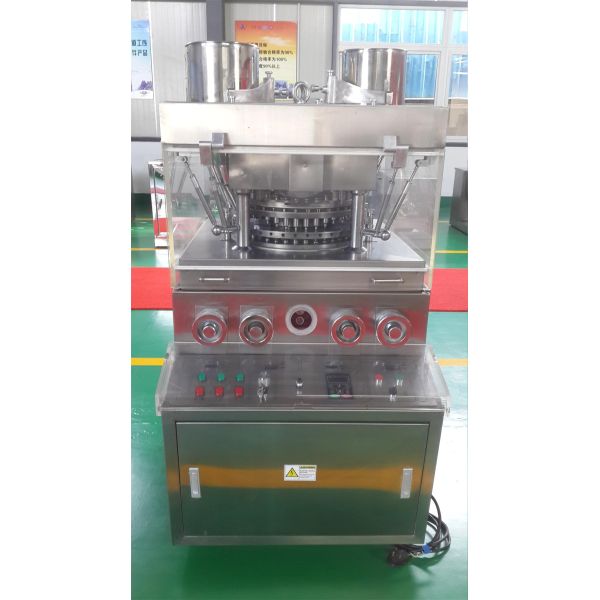

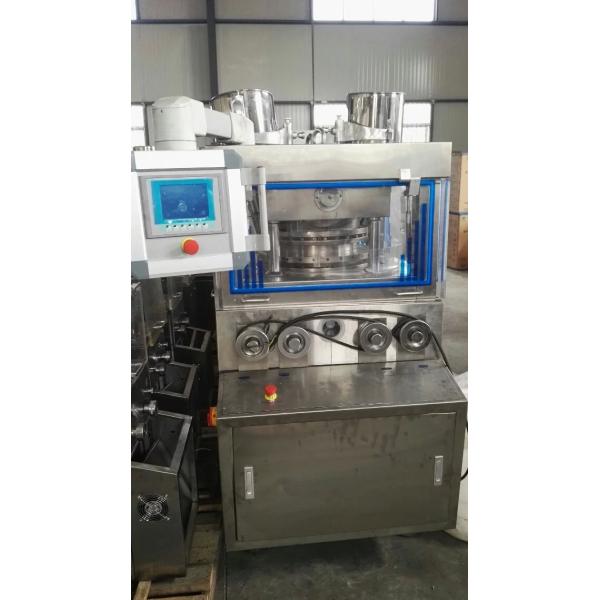

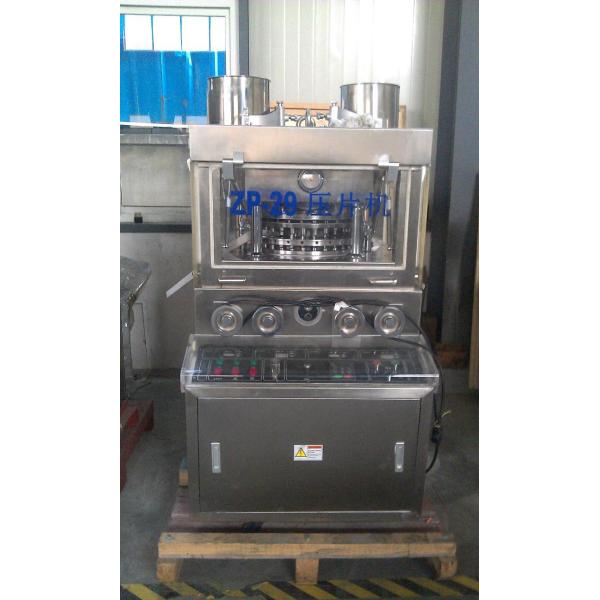

GMP 7mm Thickness Bilayer Camphor Tablet Making Machine
GMP 7mm Thickness Bilayer Camphor Tablet Making Machine
GMP 7mm Thickness Bilayer Camphor Tablet Making Machine
GMP 7mm Thickness Bilayer Camphor Tablet Making Machine
GMP 7mm Thickness Bilayer Camphor Tablet Making Machine
GMP 7mm Thickness Bilayer Camphor Tablet Making Machine
GMP 7mm Thickness Bilayer Camphor Tablet Making Machine
GMP 7mm Thickness Bilayer Camphor Tablet Making Machine
GMP 7mm Thickness Bilayer Camphor Tablet Making Machine
GMP 7mm Thickness Bilayer Camphor Tablet Making Machine
Specifications
Brand Name :
shanghai tianfeng
Model Number :
ZPW29/31
Certification :
CE SGS
Place of Origin :
Shanghai,china
MOQ :
1set
Price :
USD 13500-18500 /set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 set/h
Delivery Time :
20 working days
Packaging Details :
1310*1006*1850mm 1700KG
Description

ZPW27/29 / 31 Rotary Tablet Press Machine

Main Application:

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece ,be carved characters ,special shapes and double color piece prescription .It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry ,foods, electronics .(Note: when manufacturing double color piece ,it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raises profit .)

Operating Principle:
1.The cover is made of stainless steel with close type . The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
6. The Machine is provided with a dust collector to thoroughly collect the dust in the tablet pressing chamber.
7. When it makes double-layers tablets,the output will be reduced by half.

Technique Parameter:

Model ZPW 27 ZPW29 ZPW31
Dies (sets) 27 29 31
Max. Pressure (KN) 80 80 80
Max. dia. of tablet (mm) 25 24 22
Max. Depth of fill (mm) 18 15 15
Thickness of largest tablet (mm) 8 7 6
Turret speed (r/min) 0-18 0-30 0-30
Production capacity (pc/h) 58000 104400 111600
Motor (kW) 5.5 3 3
Overall dimensions(mm) 1230*950*1670 1230*950*1670 1230*950*1670
Net weight (kg) 1700 1700 1700
