Reverse Feet SMD Type Male Pin Header Connector Single Row 6Pins

What is a PCB Connector?

Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.

PCB Connector orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

• Parallel or mezzanine – both connectors are vertical orientation;
• 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
• 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.

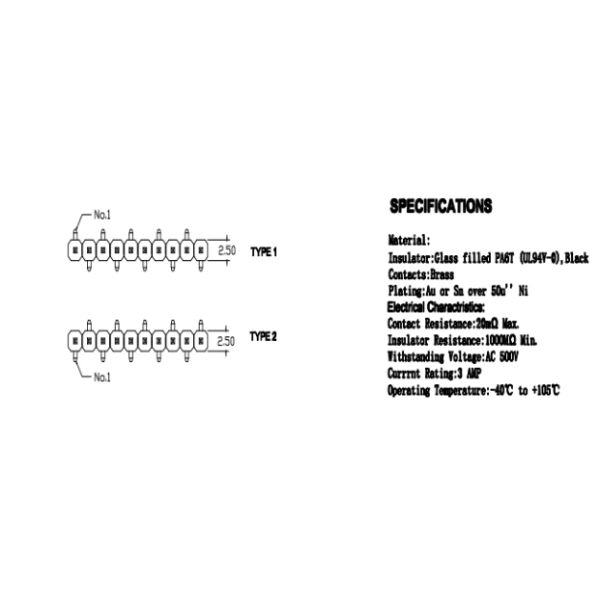

Specifications:

Why Choose CNJWY:

1. 20pcs free samples, For repeat order customer, We'll provide more than 20pcs samples for prototype project if necessary.

2. We value our customers’ trust in sourcing for the most suitable components for their requirements

3. Our aim is make sourcing connector easy for you

4. CONNJWY has come a long way over the years in delivering what we promise and is proud of what we have achieved so far.

5. Your one-stop source for components solutions.

Product Application:

Male pin header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
