1.0 mm 50 Pin FFC Ribbon Cable A Type Applied in Car Multimedia

Product overview:

Based on the vast FFC market in China, FFC alignment, also known as Flexile Flap Cable(FFC) Chinese translation: Flexible flat cable, can freely select the number and spacing of wires, making the connection more convenient, greatly reducing the volume of electronic products, reduce production costs, To improve production efficiency, it is most suitable for data transmission cables between mobile components and motherboards, between PCB boards and PCB boards, and in miniaturized electrical equipment. Common specifications include 0.5 mm, 0.8 mm, 1.0 mm, 1.25 mm, 1.27 mm, 1.5 mm, 2.0 mm, 2.54 mm and other spacing flexible cables.

FFC alignment technical parameters:

Number of conductors N: The number of copper conductors in the cable;

Spacing P: distance between two adjacent conductor centers;

Edge M: The distance between the center line of the outermost conductor and the edge of the row line;

Full spacing TP: distance between the outermost two conductor centers, TP = P *(N-1);

Total width W: distance between the two edges of the row, W = P *(N +1);

Product characteristics :

Purpose of service:

1. Lead customer choose a best connection sulotion way.

2. 20pcs free sample. Support more than 20pcs sample for old customer.

3. OEM/ODM service. We have a strong R&D team to support connector design.

4. Quickly response, email reply within 12hours,online inquiry is welcome.

5: Serivce attitude:our business is not just connector supply, it's about deliverying promises.

Where it needs to be used:

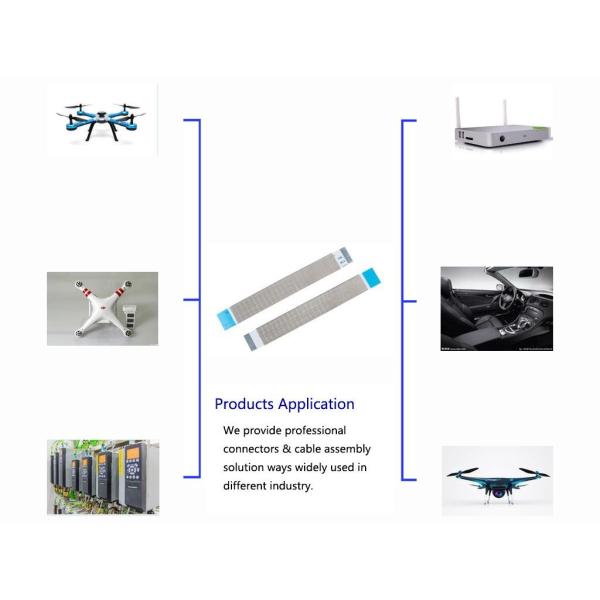

FFC cable is a flexible flat cable Flexable Flat Cable(FFC) is a thin tin plated flat copper wire with PET insulation and soft, arbitrary folding, thin thickness, small size, simple connection, easy to remove, easy to solve electromagnetic shielding(EMI) Other advantages. The scope of application can refer to the following combination diagram:
