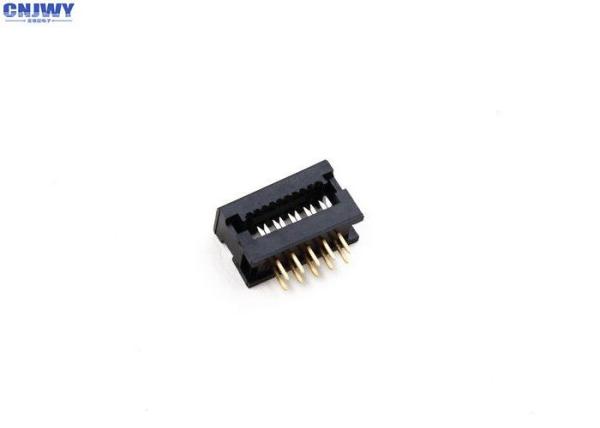

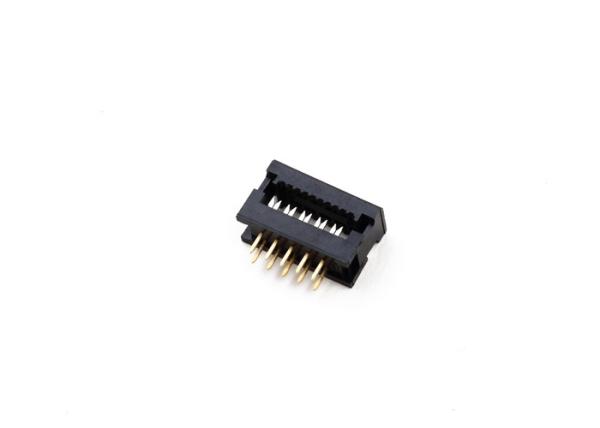

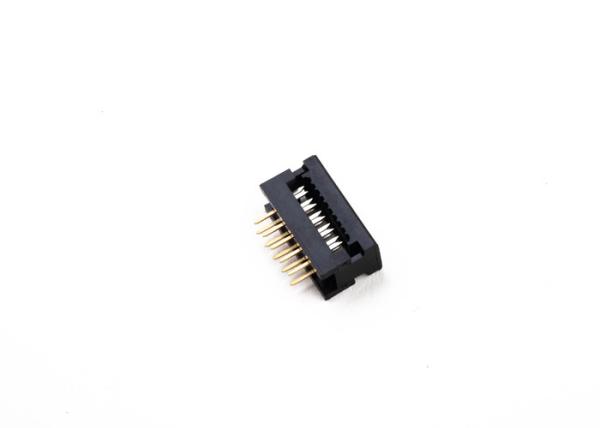

2 * 5 Pins DIP Plug Connector 2.54mm Pitch Dual Row PBT Material Insulation Resistance
2 * 5 Pins DIP Plug Connector 2.54mm Pitch Dual Row PBT Material Insulation Resistance
2 * 5 Pins DIP Plug Connector 2.54mm Pitch Dual Row PBT Material Insulation Resistance
2 * 5 Pins DIP Plug Connector 2.54mm Pitch Dual Row PBT Material Insulation Resistance
2 * 5 Pins DIP Plug Connector 2.54mm Pitch Dual Row PBT Material Insulation Resistance
2 * 5 Pins DIP Plug Connector 2.54mm Pitch Dual Row PBT Material Insulation Resistance
Specifications
Brand Name :
JWY
Model Number :
DP254-XXXXXXX
Certification :
UL/SGS/RoHs/REACH
Place of Origin :
China
MOQ :
2Kpcs
Price :
Negotiation
Payment Terms :
T/T & Western Union
Supply Ability :
100000pcs per day
Delivery Time :
7 to 15 working days
Packaging Details :
Tray/Tube/Tape/Reel Packaging
Current Rating :
3AMP
Contact Resistance :
20mΩ Max
Withstand Voltage :
500V AC/DC
Insulation Resistance :
1000MΩ Min
Operation Temperature :
-40℃ to +105℃
Contact Material :
Brass
Contact Plating :
Au Over Ni
Insulator Material :
PBT Glass Fiber(UL94V-0)
Description

2.54mm Pitch Black DIP Plug Connector Dual Row PBT Material 2*05 Pins

Products Description:

1. Electrical Property

Current Rating 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 1000V AC/DC
Insulation Resistance 1000MΩ Min

2.Physical & Environmental Property

Products Name DIP Plug/Wire to Board Connector
Pitch 2.54mm(0.1'')
Color Black/Gray
Contact Material Brass/Phosphor Bronze
Contact Plating Au over Nicel

3. Features

Wire Gauge 26 to 28AWG UL2651 Flat Cable
Cable Terrmination IDC
Connector Type Ribbon Cable,DIP Plug
Mounting Type Through Hole

Our Service:

1. We value our customers’ trust in sourcing for the most suitable components for their requirements.

2. Our fast, innovative service will ensure that our customers’ needs are answered.

3. We only offer what is best for our customers, knowing each customer is unique.

4. We value every customer, no matter small or medium volume orders.

5. Our business is not just about components supply, it’s about delivering promises.

Why Choose CNJWY

Automatic Production

More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.

Delivery on time

Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.

Make Value

Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.

Instant Response

Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.

Product Application:

DIP plug connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
