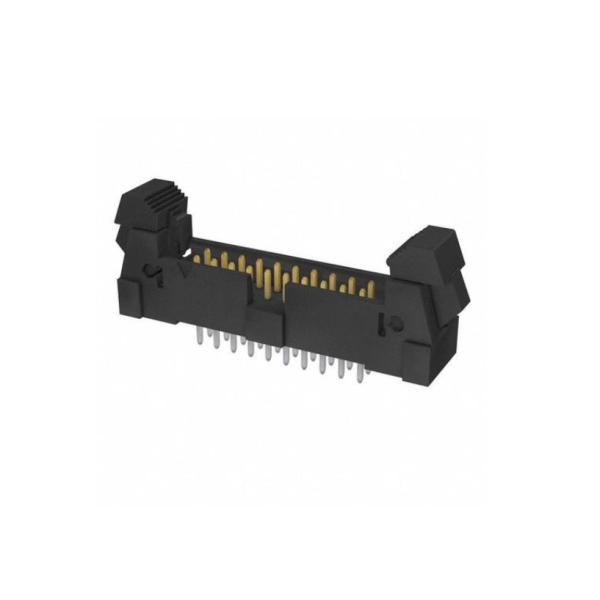

2.0mm Pitch Samtec Type 180° Ejector Header Connector
2.0mm Pitch Samtec Type 180° Ejector Header Connector
Specifications
Brand Name :
CNJWY
Model Number :
EJ200-XXP
Certification :
UL.CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T, Western Union
Delivery Time :
1week
Packaging Details :
PE/BOX
Material :
PA6T+30%G.F (UL94V-0)
Contact Plating :
Au or Sn over Ni
Contact Material :
Brass
Operation Temperature :
-40℃ to +105℃
Insulation Resistance :
1000MΩ Min
Pin :
6-40
Contact Resistance :
20mΩ Max
Withstand Voltage :
500V AC/DC
Current Rating :
1.5AMP
Description

2.0mm pitch 180° Samtec type Ejector Header Connector Customized pins

There are also supporting IDC connectors and wiring, so that the formation of wire to plate connection, The Connector is now widely used in electronics, new energy, and other fields.

2.0mm Pitch Samtec Type 180° Ejector Header Connector2.0mm Pitch Samtec Type 180° Ejector Header Connector
