SMT PCB Connector Female Header Reel Packaging Gold Flash Au Flash h=4.3mm PA6T Dual Row 2*XXP

What is a PCB Connector?

Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.

PCB Connector orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

• Parallel or mezzanine – both connectors are vertical orientation;
• 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
• 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.

Specifications:

Why Choose CNJWY:

1. High-Quality Guarantee

CNJWY has been focusing on improving the Quality Control Systems, aiming at providing high-quality products that fit ISO9001 Certificate for years.

2.Competitive Price

We have a whole set production process which include electroplating, stamping, injection molding, assembly to ensure our competitive price.

3. Customized Packaging

All the products are available for customized packaging according to your demand.

4. Fast Delivery

Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.

Product Application:

Female header widely used in different industry such as automotive, uva, balance car and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.

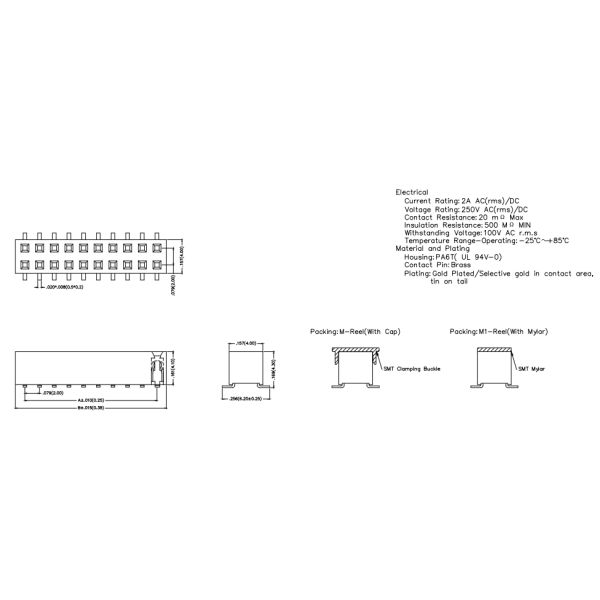

Drawing:
