Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector
Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector
Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector
Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector
Specifications
Brand Name :
CNJWY
Model Number :
PH254-XXXXXXX-B1B
Certification :
UL.CE
Place of Origin :
China
MOQ :
10000
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1000000000
Delivery Time :
1week
Packaging Details :
PE/BOX
Material :
PA6T
Contact :
Brass
Insulation Resistance :
1000MΩ Min
Contact Resistance :
20mΩ Max
Operating Temperature :
-40℃~+105℃
Color :
Black
Pin :
40
Pitch :
2.54
Description

Pitch 2.54mm H=5.0mm Pin Header, Single Row Centipede Feet Type Customized service available​

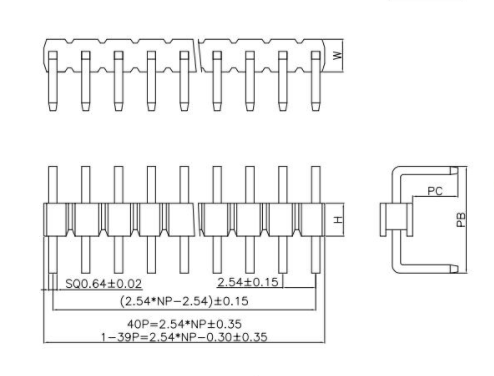

Centipede feet Pin Header connector is an unusual one. The general plastic material is PA6T, which can be made into a single row and double row. The particularity of this row bus lies in that the span of welding feet is twice as long as the distance between welding feet. As shown in the figure, the distance between welding feet of this 2.54m-spaced centipede row bus is 7.62mm.

Why Choose CNJWY:

1). Research and Development Capability:

Strong research and development capability on product designing and mold development makes CNJWY able to evaluate the new product, which could help clients save the time cost.

2). OEM/ODM Producing

CNJWY has our own assembly lines from electroplating, stamping, moulding, injection and packaging.

3). Quality Guarantee

Strictly following the demands of ISO9001-2015, CNJWY is able to produce products of the highest quality.

4). Competitive Price

With more than 10 years of producing experience, CNJWY is always specializing in improving production capacity. Competitiveness provides a competitive price for valued customers.

Product Application:

Pin header connectors widely used in different industries such as automotive, medical equipment, computer, and so on. as below image is application scenarios. image is a limitation, for more detail you can directly contact our sales team

Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector
