20-6AWG Power Terminal Block / CET10 12.7mm Pitch Terminal Strip Connector
20-6AWG Power Terminal Block / CET10 12.7mm Pitch Terminal Strip Connector
20-6AWG Power Terminal Block / CET10 12.7mm Pitch Terminal Strip Connector
20-6AWG Power Terminal Block / CET10 12.7mm Pitch Terminal Strip Connector
Specifications
Brand Name :
CNJWY
Model Number :
CET100-00-127
Certification :
UL.CE
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T, Western Union
Supply Ability :
10000000
Delivery Time :
1week
Type :
Power Terminal Block
Packaging :
PE/Box
Brand :
CNJWY
Withstand Voltage :
AC4000V
Description

20-6AWG Power Terminal Block / CET10 12.7mm Pitch Terminal Strip Connector

Product Name: Power Terminal Block

1. Product features: switching high-frequency high voltage insulation life long seismic

2. Product material: copper alloy, or copper alloy, electroplating nickel, or nickel alloy

Power Terminal Block Application:

Mainly used in lighting, security and etc.. And the application of industry pluggable terminal is the main pan, such as frequency conversion, riot, numerical control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications for pluggable terminal industry are: insertion force should be smooth, contact resistance to be small, must be able to meet the certain life and fatigue, so higher requirements for the metal shrapnel material. This requires that product designers have certain experience in structure and material. For the fence type terminal applications: power supply, relay (especially double terminal), frequency

converter, the elevator industry (less), air conditioning.

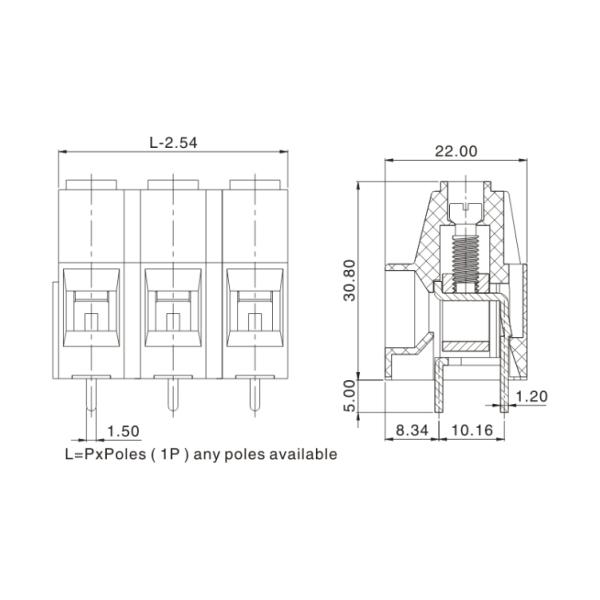

TECHNICAL DATA:

Center Space 12.7mm
Rated Current 600V 65A
Surge Voltage 4000V
Insulation Body PA66 UL94, V-0
Terminal Body Brass
Screw Torque 13 lbf.in
Temperature -40℃~105℃
Wire Range 20-6AWG

20-6AWG Power Terminal Block / CET10 12.7mm Pitch Terminal Strip Connector​20-6AWG Power Terminal Block / CET10 12.7mm Pitch Terminal Strip Connector

20-6AWG Power Terminal Block / CET10 12.7mm Pitch Terminal Strip Connector
