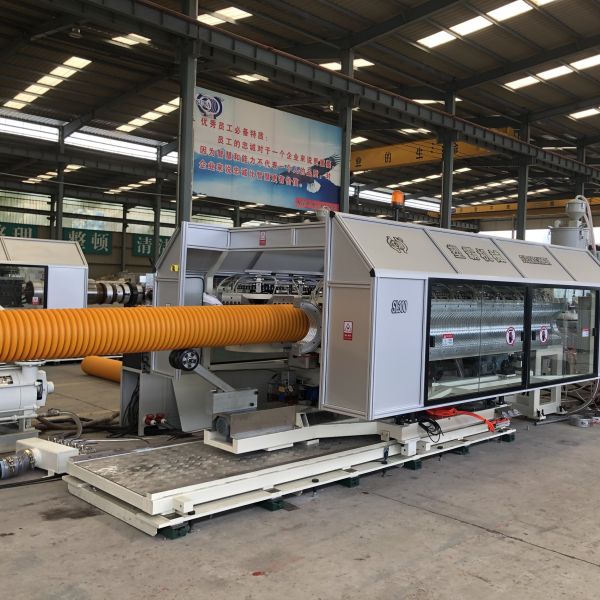

High cost performance Double wall corrugated pipe production line dwc Pipe machine
High cost performance Double wall corrugated pipe production line dwc Pipe machine
High cost performance Double wall corrugated pipe production line dwc Pipe machine
High cost performance Double wall corrugated pipe production line dwc Pipe machine
Specifications
Place of Origin :
Shandong China
Packaging Details :
Wooden boxes and films for export
Supply Ability :
4 units per month
Price :
Customized
Brand Name :
Suba Machinery
Model Number :
SL600
Certification :
ISO9001/CE
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
30-120 work days
Structure :
Horizontal
Cooling way :
Water cooling
Pipe range :
ID100-OD630mm
Pipe material :
PP/PE/PVC
Electric components :
ABB, SIEMENS, FLENDER etc.
Screw :
Single Screw
Screw ratio :
36:1
Moulds :
36/38 pairs
Moulds material :
Aluminium alloy
Chain length :
6333/6685mm
Voltage :
380v or as your request
Installed Power :
465kw
Production Power :
190-220kW
Dimension :
27*5.5*4m
Warranty :
1 Year
Control system :
PLC
Description

High Speed * Excellent Performance * Easier Operation System

* Low Power Consumption

High cost performance Double wall corrugated pipe production line dwc Pipe machine

CONFIGURATION OF SL600

  • SJ75/36 single screw extruder (inner layer)
  • SJ90/36 single screw extruder (outer layer)
  • SL600 corrugator
  • SL600 cooling tank
  • SL600 cutter
  • SL600 stacker

EQUIPMENT FEATURES

  • On SL600 corrugated pipe extruder, the mid-sized double wall corrugated pipes are produced for drainage and sewage.
  • Moulds are compatible with SL300, SL800, SL1000 and SL1200.
  • The corrugator is available in two different lengths.
  • High and stable vacuum technology.

High cost performance Double wall corrugated pipe production line dwc Pipe machine

EXTRUDERS

  • Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.

High cost performance Double wall corrugated pipe production line dwc Pipe machine

DIE HEAD

  • Short flow channel acheives low temperature and low pressure extrusion, which increases production efficiency by 25%.
  • Dynamic adjustment of die head.
  • Less adjustment time- without usage of fastening scerws.
  • Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life.
  • Fast changeover time.

High cost performance Double wall corrugated pipe production line dwc Pipe machine

CORRUGATOR

  • Closed loop pressure water cooling system-high forming efficiency.
  • Advanced and high-strength structural design ensures stable production.
  • Powerful and high-automatic vacuum
  • Fast moulds' changeover process.
  • Equipped with water temperature control system.
  • Touch screen technology with different languages.
  • PCC control system.

High cost performance Double wall corrugated pipe production line dwc Pipe machine

MOULD

  • Made of high-quality aluminium alloy.
  • Water-cooled moulds guarantee high cooling efficiency and high output.
  • Water temperature control system ensures excellent pipe quality.
  • Moulds are compatible with different corrugators.
  • Fast changeover time.

High cost performance Double wall corrugated pipe production line dwc Pipe machine

CUTTER

  • Chipless cutter enable precise, noiseless and dust-free cutting
  • Innovative trigger mechanism ensures precise cutting.
  • Two modes: automatic and manual operation.
  • Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

EXHIBITION AND CLIENTS VISITING

High cost performance Double wall corrugated pipe production line dwc Pipe machine
Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in
various countries.Welcome to follow us and visit us!!

CASES

High cost performance Double wall corrugated pipe production line dwc Pipe machine

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned
pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,
Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.
Look forward to work with you!

Worry-free after-sales service!

Timely instanllation, commissioning and personnel training services.
Rapid trouble shooting-quick response, quick redolution.
Remote control services.
Collect and study customers' feedback and suggestions.

Please don't hesitate to contact us!!!
