Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder
Specifications
Place of Origin :
Shandong, China
Brand Name :
SUBA
Packaging Details :
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Supply Ability :
4 Unit/Units per Month
Price :
$188,000.00 - $398,000.00/sets
Model Number :
SL180
Certification :
ISO9001/CE
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
30-120 work days
Condition :
New
Plastic Processed :
PE, PP, PVC, HDPE, PE/PP
Application :
PIPE
Screw Design :
Single-screw
Screw Material :
38CrMoALA
Screw diameter (mm) :
65/75
Screw L/D Ratio :
36:1
Screw Speed (rpm) :
120 rpm
Dimension(L*W*H) :
27*3.5*2.8m
Operation Power (kW) :
88-120
Warranty :
1 Year
Pipe diameter :
OD40-OD200MM
moulds number :
36/38 pairs
Description

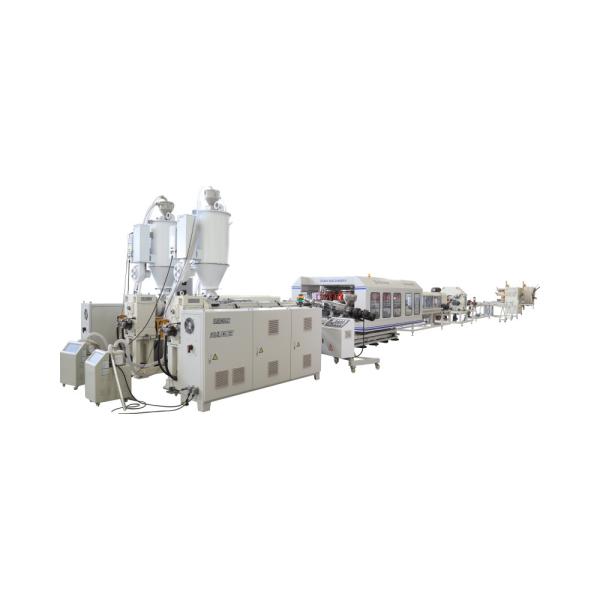

CONFIGURATION SL180

  • SJ65/33 single screw extruder (inner layer)
  • SJ75/36 single screw extruder (outer layer)
  • SL180 corrugator
  • SL180 cooling tank
  • SL180 haul-off
  • SL180 cutter
  • SL180 perforator (for water collection)
  • SL180 stacker
  • SL180 coiler

TECHNICAL DATE

Model Pipe range
(DN/mm)		 Installed power
(kW)		 Production power
(kW)		 Moulds number
(pairs)		 Chain Length
(mm)		 Max. output
(kg/h)		 Dimension
(L*W*H)(m)
SL180 ID32-OD200 302 88-120 36 4750 550 27*4*2.8

EQUIPMENT FEATURES

High Speed * Excellent Performance * Easier Operation System * Low Power Consumption


Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder

EXTRUDERS

  • Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.

Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder

DIE HEAD

  • Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%.
  • Dynamic adjustment of die head.
  • Less adjustment time- without usage of fastening scerws.
  • Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life.
  • Fast changeover time.

Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder

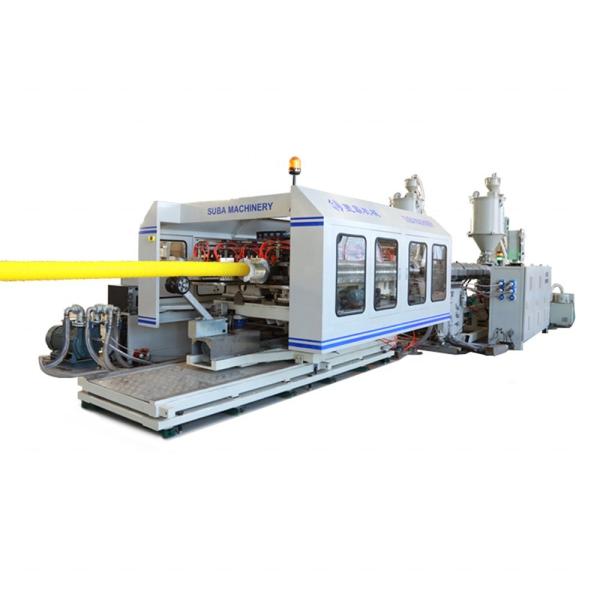

CORRUGATOR

  • Closed loop pressure water cooling system-high forming efficiency.
  • Advanced and high-strength structural design ensures stable production.
  • Powerful and high-automatic vacuum
  • Fast moulds' changeover process.
  • Equipped with water temperature control system.
  • Touch screen technology with different languages.
  • PCC control system.

Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder

MOULD

  • Made of high-quality aluminium alloy.
  • Water-cooled moulds guarantee high cooling efficiency and high output.
  • Water temperature control system ensures excellent pipe quality.
  • Moulds are compatible with different corrugators.
  • Fast changeover time.

Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder

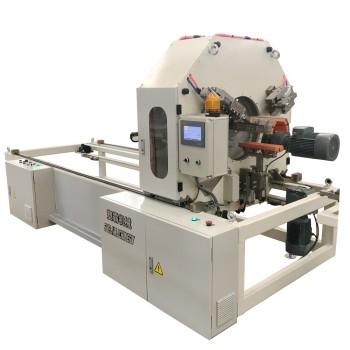

CUTTER

  • Chipless cutter enable precise, noiseless and dust-free cutting
  • Innovative trigger mechanism ensures precise cutting.
  • Two modes: automatic and manual operation.
  • Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

CASES

Single Screw Perforated Corrugated Pipe Machine High Speed Corrugated Pipe Extruder

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned
pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,
Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.
Look forward to work with you!
Please contact us for more details!
