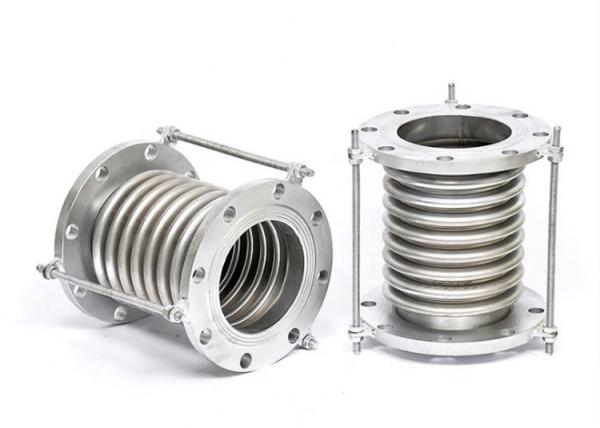

Stainless Steel Flexible Metal Expansion Bellows / Expansion Joint / Bellow Compensator
Stainless Steel Flexible Metal Expansion Bellows / Expansion Joint / Bellow Compensator
Stainless Steel Flexible Metal Expansion Bellows / Expansion Joint / Bellow Compensator
Stainless Steel Flexible Metal Expansion Bellows / Expansion Joint / Bellow Compensator
Specifications
Brand Name :
FIDAK
Model Number :
NIL
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
40 tons per day
Delivery Time :
5~15 working days
Packaging Details :
Steel frame case sealed by plywoods with each end capped
Material :
Stainless steel
Shape :
Equal
OEM/ODM :
Allowed
Technics :
Casting
Connection :
Flange
Application temperature :
-50~300℃
Color :
Customized
Description

Stainless steel flexible metal expansion bellows/ Expansion joint/ bellow compensator

General description

Normal Specification ID40~600mm,

overall length:300~400mm

material Sus304,321,310S,316L,etc.

1) Material

Sus304,321,310S,316L,etc.

2)parts

Flange, bellows, internal sleeve, tie-rod, pipe end, nut

3)Size available

Φ25mm~φ7000mm

4)bellows layers

1-6 layers

5)Threads

DIN, BSPT, BSP, NPS, NPT, Metric, (ISO7/1, DIN 2999, ANSI B1.20.1)

6)Flange Drilled

JIS,JB,BS, DIN, ANSI, or others provided drawing samples

7)Surface

Carbon steel flange galvanized or AL painted

8)Normal Specification

ID40~600mm,overall length:300~400mm

9)Usage

For the chemical industry, metallurgy, electricity, shipbuilding, construction and other industries

10)Application temperature

-50~300°C

11)feature

Easy cleaning and maintenance

To resolve minor deviation because of pipe connection and eliminate the pipeline residual stress

Advantage

Reduce vibration

Dampen sound transmission

Compensate lateral, torsional & angular movements

Compensate axial movements

Minimal face-to-face dimensions

Lightweight

Low movement forces required

Reduced fatigue factor

Reduced heat loss

Corrosion, erosion resistant

No gaskets

Shipping Details:

Delivery Method

Express (DHL, FedEx, EMS)

By Air

By Sea

Delivery Time

3-5 days

5-7 days

20-30 days

Characteristic

Door to Door

Airport to Airport

Sea Port to Sea Port

FAQ

Q. Can I get the samples?

A. Yes, small size sample is free, but buyer need pay for freight cost.

Q. What is Minimum Order Quantity?
A.The MOQ is according to the type and size.

Q.Can you manufacture based on my drawing or specification?

A.Yes, customized drawing or specification is available, just send us your requirements

Q.What price terms do you accept?
A.Ex factory price, FOB price. We'll also be pleased to make CNF/CFR/CIF price for you

Q.What standard can you make?
A. EJMA, ASME, MIL-E, BS, JIS, CODAP, etc.

We need to know following information to quote you correct machineries:

1. Technical Drawing of the expansion joint you need?

2. What size you need?

3. Material of the bellows, pipe ends or flange?

4. What diameter of the expansion joint you need?

5. working pressure

6. Movement

7. Working temperature

8. Length

9. Connection: Welding pipe ends or flange (ANSI, DIN, JIS,BS, AS,GOST, etc..)
