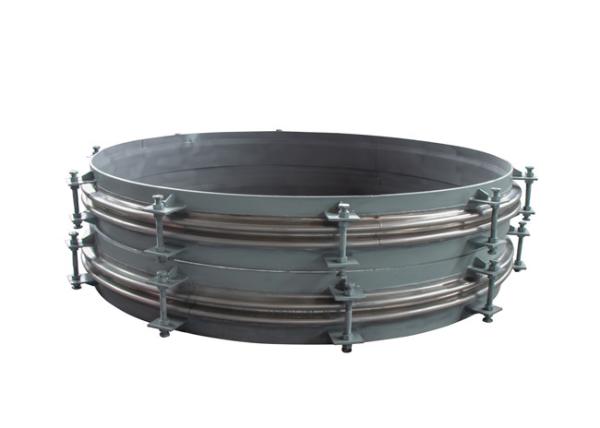

Flange Connection Axial Compression Type Corrugated Compensator
Flange Connection Axial Compression Type Corrugated Compensator
Flange Connection Axial Compression Type Corrugated Compensator
Flange Connection Axial Compression Type Corrugated Compensator
Specifications
Brand Name :
FIDAK
Model Number :
Customized
Certification :
ISO 9001
Place of Origin :
Jiangsu,China
MOQ :
10 sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Paypal, Western Union
Supply Ability :
3000 Set/Sets per Week
Delivery Time :
5~15 working days
Packaging Details :
Normal Export Carton, Customs Box available or as per customer's request
Material :
Stainless Steel
Technics :
Welding
Flange Standard :
JIS,ANSI,DIN,B.S,JB
OEM/ODM :
Allowed
Length :
200mm/300mm or customization
Application :
Absorb the vibration and reduce the noise
Description

High Temperature Flange Connection Axial Compression Type Corrugated Compensator

General description

Axial inner pressure type bellows compensitor is also called axial corrugated expansion joint, axial type compensator and axial type metal expansion joint, which are mainly used to compensate axial displacement, and can also compensate transverse displacement or combined axial and transverse displacement. It has the ability to compensate angular displacement, but it is generally not used to compensate angular displacement.

Working Principle


Ripple compensator is a kind of compensation device which is used to make use of the effective expansion and deformation of elastic element of ripple compensator to absorb the size change of pipeline, pipe or vessel caused by thermal expansion, cold contraction and other reasons. Can be the axial, transverse, and angular displacement of the absorption.

Product Application


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

Main Features


Stainless steel compensator can compensate axial, transverse, angular, no thrust, simple support design, corrosion resistance, high temperature resistance, noise reduction, etc.

Parameters:

Nominal diameter 32-3000mm
Nominal pressure 0.6/1.0/1.6/2.5/4.0Bar
Compensation 18-400mm
Max. temperature -40-450°C
Connection type by flange or by welding
Flange material stainless steel/carbon steel/iron
Flange standard ANSI/DIN
Body material SS304/316L or according to your request

FAQ

Here are the list of Frequently-Asked Questions compiled by our Customer Service Team to help you get answers to commonly (and some uncommonly) asked questions.

  • Q1 : Can you make the product as per client's requirement?
  • A: Yes, customized the size or length is aviailable,just according to your request.
  • Q2:Can we choose different material and standard?
  • A: Yes ,the material or standard can be chose according to your request.
  • Q3:Do you accepted small quantity order?
  • A: Of course.our MOQ is 1 pcs of each kind
  • Q4: How can we pay for the deal?
  • A: You can througth T/T(30% as desposit,the rest 70% balance payment will be paid before shipment),Western union,Paypal,Escrow.
  • Q5: What's your shipment methods?
  • A:FEDEX/DHL/UPS/TNT for samples,Door -to-Door;By Air or Sea for batch goods,Airport/Port receiving;and customers specifying freight forwarders or negotiable shipping methods!
  • Q6: If i can't find the expansion joint which i need,what should i do?
  • A: Pls contact me online or inquiry,wirte down you request and email,i will reply to you within 24 hours
  • Q7: How can you guarantee the quality of your products?
  • A: 100%QC inspection to check all our products strictly before packaging
