Specifications
Brand Name :
FIDAK
Model Number :
Customized
Certification :
ISO 9001
Place of Origin :
Jiangsu,China
MOQ :
10 sets
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
30000 Set/Sets per Week
Delivery Time :
3~15 working days
Packaging Details :
Normal Export Carton, Customs Box available or as per customer's request
Connection :
Flange
Size :
DN32mm ~ DN1000mm
Flange Material :
Carbon Steel, Stainless Steel
Standard :
ANSI, API, JIS, BS, DIN, GB, JB
Technics :
Forged
Shape :
Equal
Description

PN10/ PN16 Stainless Steel Axial Compensator for Pipeline

Product description

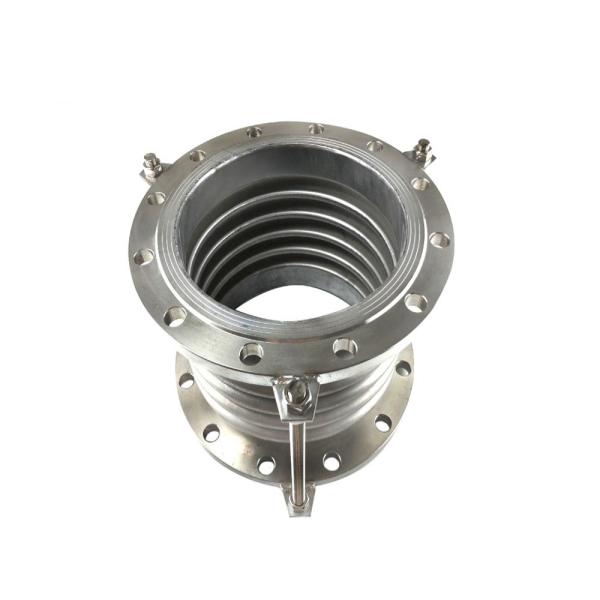

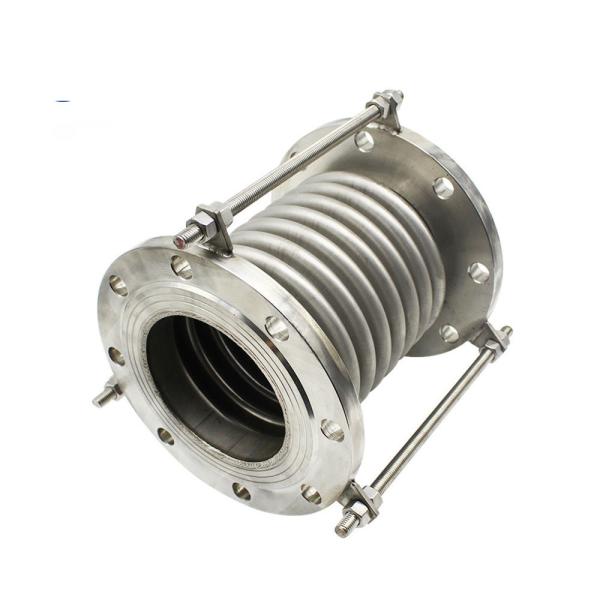

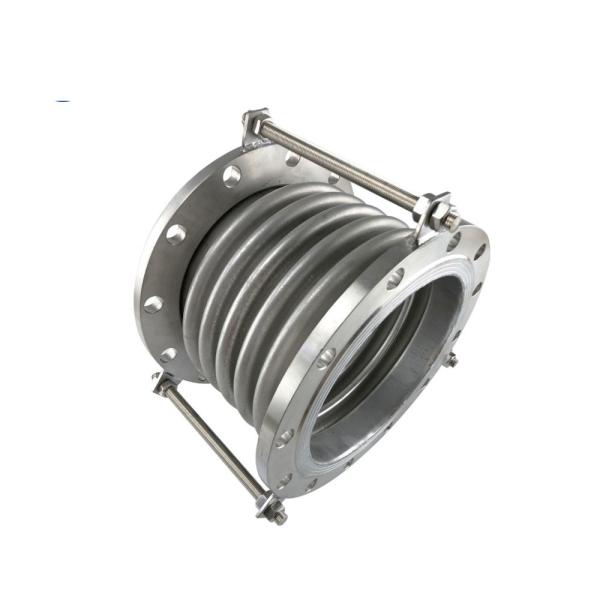

Metal bellow expansion joint is one flexible, thin-walled, and transverse corrugated pipe expansion joint. It is composed of stainless steel bellow body, flange, limit rod, and limit ear plate.

Metal bellow expansion joint is also called metal bellow compensator, which can effectively reduce pipe deformation and increase the service life of plumbing system.
Product Type
Metal bellow expansion joint can be processed into different types according to different needs
◆ Bellow Body: Stainless Steel 304, 316L. ◆ Flange Materials: Q235 carbon steel, 304, 316L stainless steel.
Product Specification
Diameter
(mm)
Pressure grade
(Mpa)
Available Area of Bellows
(c㎡)
Max Size of External Diameter
(mm)
Length
(mm)
1.0
1.6
2.5
Flange
Tube
32
20/26
18/63
15/98
16
225
160/250
264/280
40
20/24
18/89
15/98
23
244
164/259
269/289
50
20/70
18/70
15/106
37
259
172/276
282/306
65
26/44
22/55
15/138
55
270
215/294
300/322
80
34/33
28/41
19/68
81
284
240/338
344/366
100
40/75
35/93
25/54
121
304
235/317
323/345
125
38/59
34/74
29/117
180
334
282/314
316/342
150
40/62
34/78
29/92
257
364
282/339
338/367
200
59/52
53/58
46/65
479
442
340/402
402/426
250
87/35
79/39
48/78
769
507
393/459
493/399
300
87/37
79/41
71/47
1105
562
464/525
564/565
350
87/44
79/48
71/45
1307
622
509/564
609/604
400
87/43
79/47
71/47
1611
562
522/566
622/628
450
87/37
79/41
47/75
1972
700
403/498
503/523
500
87/68
79/75
71/45
2445
760
431/523
531/554
600
87/85
79/94
71/82
3534
835
478/548
578/588
700
87/77
79/85
71/103
4717
1110
490
590
800
102/102
94/112
71/95
5822
1265
502
602
900
102/97
94/107
80/123
7620
1186
/
698
1000
102/105
94/106
82/117
9043
1286
/
692

NOTE: For more specifications, please contact us!

Detail and advantags

HYDRAULIC BELLOW PIPE


Adopt high strength stainless steel 304, 316
High pressure resistance, long service life.

HIGH STRENGTH FLANGE


Made of Q235, SS304, 316L steel flanges.
ANSI, DIN, JIS, API, various standards.

GOOD WELDING TECHNOLOG Y


Adopt Q235 or SS 304 screws & nuts.
Strong bearing capacity,
Good sealing performance

Strict Quality Control System

Our factory has over 13 years design experience in manufacturing the industrial pipe fittings, such as the rubber expansion joint, metal expansion joint, dismantling joints, pipe valves, etc.

All the metal expansion joints comfirm with the international standards, such as GB, ISO, DIN, ANSI, BS, JIS, as well as customers'special demand.
