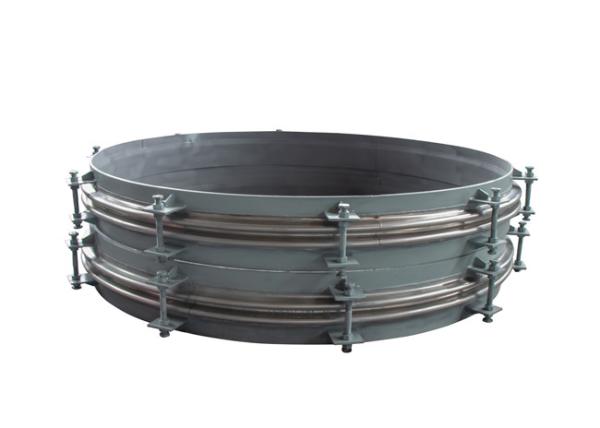

PN10 PN16 PN25 Carbon Steel Hinged Expansion Joint Bellows Compensator
PN10 PN16 PN25 Carbon Steel Hinged Expansion Joint Bellows Compensator
PN10 PN16 PN25 Carbon Steel Hinged Expansion Joint Bellows Compensator
PN10 PN16 PN25 Carbon Steel Hinged Expansion Joint Bellows Compensator
PN10 PN16 PN25 Carbon Steel Hinged Expansion Joint Bellows Compensator
PN10 PN16 PN25 Carbon Steel Hinged Expansion Joint Bellows Compensator
PN10 PN16 PN25 Carbon Steel Hinged Expansion Joint Bellows Compensator
PN10 PN16 PN25 Carbon Steel Hinged Expansion Joint Bellows Compensator
Specifications
Brand Name :
FIDAK
Model Number :
Customized
Certification :
ISO 9001
Place of Origin :
Jiangsu,China
MOQ :
10 sets
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
30000 Set/Sets per Week
Delivery Time :
3~15 working days
Packaging Details :
Normal Export Carton, Customs Box available or as per customer's request
Technics :
Casting
Shape :
round
max temperature :
-40--450℃
customize :
available
pressure :
PN10 PN16PN25
size :
according to your request
Description

Hinged Bellows Compensator

Product description

Working principles of universal hinged type expansion joints are almost the same as that of simplex hinged bellow expansion joints. Universal hinged type expansion joints consist of one bellow and hinge plates connected with four groups of end pipes and gimbal ring, and flexibility components made of two pairs of hinge pins. The hinge plates face to face and they are perpendicular to the gimbal ring so it can absorb angular movements in any plane. Just as simplex hinged bellow expansion joints, SWJ don’t work alone but usually two or three of them are combined together to be put into use. It is used to compensate deflection movements of Z spatial pipe line. The hinge, hinge pin and hinge plate can carry thrust and some other additional external force.

Product details

Material of Bellows: SUS 304(SUS 321 and SUS316L are also available)

Nominal Diameter: DN100-DN1000

Working Pressure: PN2.5/6/10/16/25

Working Temperature: -80℃/+450℃

Connection: Pipe end connection

Material of Connection: Carbon steel GB/T 700 for standard use(Special material of connection to meet specific customer & industry requirements)

Other choices: Inner sleeve, carbon steel, SUS304(SUS 321 and SUS316L are also available)

Notes: If you have any other requirement, please contact us.

What is the parameters of our axial compensator ?
Nominal diameter 1.5''-64''
Nominal pressure 0.6/1.0/1.6/2.5/4.0Bar
Compensation 18-400mm
Max. temperature -40-450°C
Connection type flange or welding
Flange material stainless steel/carbon steel/iron
Flange standard ANSI/DIN
Body material SS304/316L or according to your request
Product tags

ptfe bellows expansion joints

,

axial bellows expansion joint

,

metal bellows expansion joints
