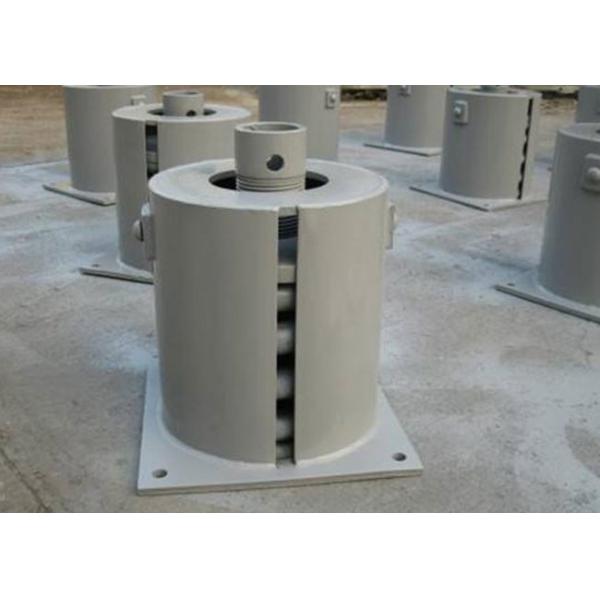

Anti Vibration Restrained Spring Hanger Support Vibration Isolator for HVAC System
Anti Vibration Restrained Spring Hanger Support Vibration Isolator for HVAC System
Anti Vibration Restrained Spring Hanger Support Vibration Isolator for HVAC System
Anti Vibration Restrained Spring Hanger Support Vibration Isolator for HVAC System
Specifications
Brand Name :
FIDAK
Model Number :
NIL
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
40 tons per day
Delivery Time :
5~15 working days
Packaging Details :
Steel frame case sealed by plywoods with each end capped
Connection :
Welding
Displacement Range :
50-500 mm
Shape :
Equal
Load Range :
500-400000 N
Temperature Range :
- 20 °c ~ + 200 °c
Transport Package :
Wooden Box/Case/Pallet
Description

Anti Vibration Restrained Spring Hanger Mounts Spring Hanger Vibration Isolator for HVAC System

Product description

Load range 500-400000 n, displacement range 50-500 mm,temperature range - 20 °C ~ + 200 °C.

Type: 58H,58V,80V, ZH, TH, VS, TD, BSH

Material: carbon steel,stainless steel,alloy steel and special material for the special parts.

Size:according to the drawing or requirement

Standard:ISO, JIS,DIN,GB

58H, 58 V and 80V Constant Force Spring Hangers
1. Applicable Range

The 58H, 58 V and 80V constant force spring hangers (US ITT Technology) are applicable to 38mm (1 1/2") to

508mm (20") displacement, 12.7mm (1/2") interval and 12daN to 39,690daN loading capacity.
2. Classification and Model
Classification Model Code Installation Form
Horizontal Type Constant Force Spring Hangers 58H A Type, B Type, C Type, E Type, G Type
Vertical Constant Force Spring Hangers 58V A Type, B Type, C Type, D Type, E Type
Support Type Constant Force Spring Hangers 80V F Type
A Type-Duplex Pull Rod Connection
B Type-Single Hanger Plate Connection
C Type-Double Hanger Plate Connection
D Type-Top Surface Connection
E Type-Pedestal Connection

G Type-Parallel Connection of Constant Force Spring Hangers

Application

Spring hangers and spring supports are used to balance slight vertical displacements in the pipe system. These components work on the basis of pre-set helical coil springs which exert a variable supporting load over the range of movement in accordance with their specified spring characteristics. Load variations resulting from this are limited through the stress analysis calculations, depending on the sensitivity of the piping.
