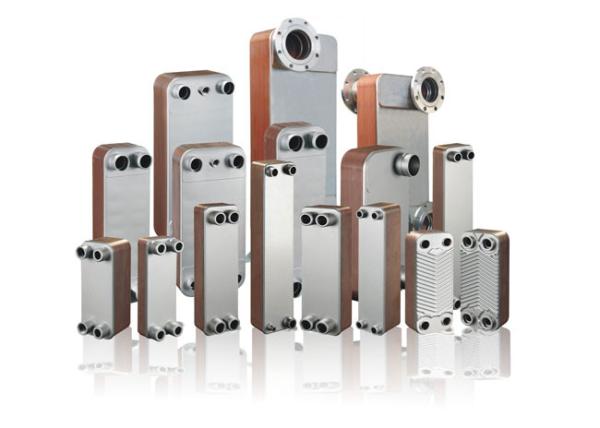

Stainless Steel Nickel Brazed Refrigeration Plate Heat Exchanger

Product description

Product Name: Plate Heat Exchanger
Plate Material: 304 or 316L
Body Material: 304
Gasket Material: NBR, EPDM, etc
Max Working Pressure: 3Mpa
Working temperature: -10℃ - +150℃
Cooling: Single stage or two stages
Size: 1m², 3m², 5m², 7m², 10m²
Plate Number: 17 - 77
Packing Details: Usually Plywood case for each plate heat exchanger for directly shipping. Extra
wooden case is availabe when necessary

Model Number

Plate Size

(length*width*height)

 Channel

Heat Exchange Area

(M²)

Flow

(T/H)

 Plate Quantity Connect Size
PHE-0.06 160*500*0.5 Single Channel 1 0.5 17 32mm
PHE-0.06 160*500*0.5 Double Channel 3 1.5 20+31 32mm
PHE-0.13 200*800*0.4 Double Channel 5 2.5 15+24 38mm
PHE-0.13 200*800*0.4 Double Channel 7 3 22+33 38mm
PHE-0.13 200*800*0.4 Double Channel 10 5 31+46 38mm

Working principle

The plate type heat exchanger is composed of a group of corrugated metal plants. The holes on it form channel for liquids to flow, and the heat will be transferred between two kinds of liquids. The plates are assembled between a fixed frame board and a moveable clamping board and are tightened by the tightening bolts. These plates are installed with sealing gaskets. The sealing gaskets play the sealing function on the channels between plates and make the liquids flow into adjacent channels.The quantity of plates are determined by flow, physical properties and temperature of liquids. The joints can be located on the frame board and clamping board.

Standard materials

The frame and clamping board can be subjected to painting on the surface or coated by stainless steel.The moving nuts on the fastening bolts are made of A3. Plate type BR-0.06,0.12,0.2,0.3,0.45,0.65 plate stainless steel AISI,316L,316,304 Sealing gasket type NBRor EPDM,Q Technical date Mechanical designed pressure/temperature Designed pressure l.OMpa Working pressure 0.6Mpa Working temperature -10°C -+150°C Joint type DIN,SMS,ISO,male thread or others can be supplied according to requirements.
