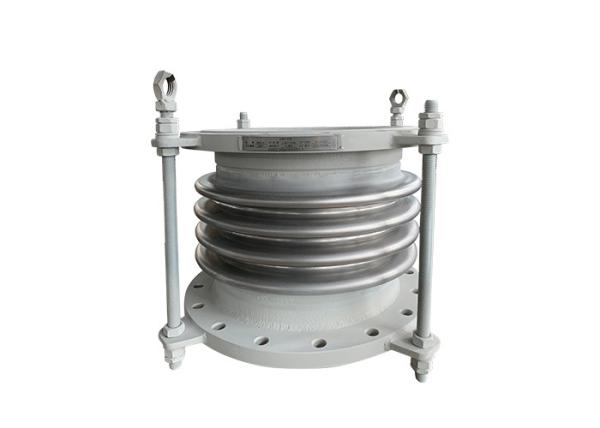

SS Single Axial Expansion Joints Bellows Compensator For Piping Systems
SS Single Axial Expansion Joints Bellows Compensator For Piping Systems
SS Single Axial Expansion Joints Bellows Compensator For Piping Systems
SS Single Axial Expansion Joints Bellows Compensator For Piping Systems
Specifications
Brand Name :
FIDAK
Model Number :
NIL
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
40 tons per day
Delivery Time :
5~15 working days
Packaging Details :
Steel frame case sealed by plywoods with each end capped
Material :
Stainless steel
Shape :
Round
Head code :
Round
Technics :
Casting
Connection :
Welding
Color :
Customized
Compensator :
basic parameters
Description

High quality stainless steel bellows compensator

Product description

High quality stainless steel bellows compensator of a corrugated pipe and two side flanges (also can be made into over type).The deformation of bellows realized pipe axial displacement (also have a small amount of transverse and angular displacement). The small pull rod function is mainly the rigid support in the process of transportation or as a product predeformation adjustment; it is not load bearing parts.

Product Parameters

Nominal diameter
1.5''-64''
Nominal pressure
0.6/1.0/1.6/2.5/4.0Bar
Compensation
18-400mm
Max. temperature
-40°C-450°C
Connection type
flange
Flange material
stainless steel/carbon steel
Flange standard
ANSI/DIN
Body material
SS304/316L

parts
Flange, bellows, internal sleeve, tie-rod, pipe end, nut
Size available
DIN, BSPT, BSP, NPS, NPT, Metric
Threads
DIN, BSPT, BSP, NPS, NPT, Metric
Flange Drilled
JIS,JB,BS, DIN, ANSI, or others provided drawing samples
Surface
Stainlee steel flange galvanized or AL painted
Normal Specification
ID40~600mm,overall length:300~400mm
Temperature
-20°C~+400°C

Application

Pipes with axial displacement by temperature or pressure changes.
Heating and air conditioning installation.
Hot water and fire protection system.
Compressors inlet and outlet.
Diesel engine sets/Pipelines/Turbines/Blowers/Vacuum pumps/Heat exchangers.
