Flexible Rubber Expansion Joint With Floating Flange Ensure Pipeline Safe Operation
Flexible Rubber Expansion Joint With Floating Flange Ensure Pipeline Safe Operation
Flexible Rubber Expansion Joint With Floating Flange Ensure Pipeline Safe Operation
Flexible Rubber Expansion Joint With Floating Flange Ensure Pipeline Safe Operation
Specifications
Brand Name :
FIDAK
Model Number :
NIL
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
40 tons per day
Delivery Time :
5~15 working days
Packaging Details :
Steel frame case sealed by plywoods with each end capped
Technics :
Forged
Size :
DN40-DN600
Working pressure :
1.0~2.5Mpa
Flange material :
Stainless steel or Carbon steel galvanized
Connection :
Flange
Description

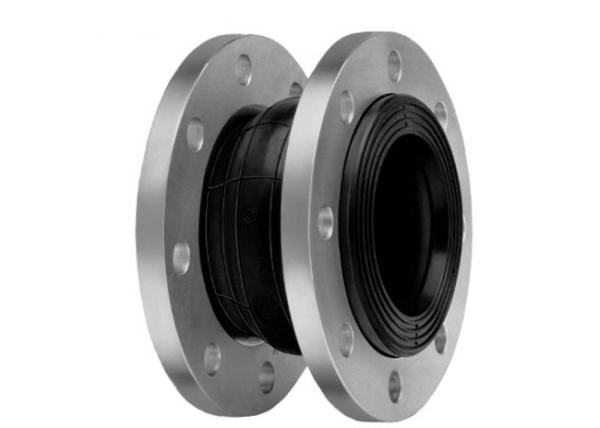

Flexible rubber expansion joint with Floating Flange

Product description

Rubber expansion joints consist of inner and outer rubber, cord layer and traveler, which are vulcanized and then combined with metal flanges or loose sleeves of parallel joints. This product can reduce vibration and noise, and compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.

Feature

* Small size,light weight,good elasticity,easy to install.

* It can absorb lateral,axial and angular displacement caused by pipe vibration after installation,and is not limited by pipe's non-concentric and non-parallel flange.

* When working,the structure can be reduce noise transmission and strong vibration absorption ability.

Applications

Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid, Soda Fluid, etc.

Product tags

flanged rubber expansion joint

,

flanged expansion joint

,

pneumatic tube expander
