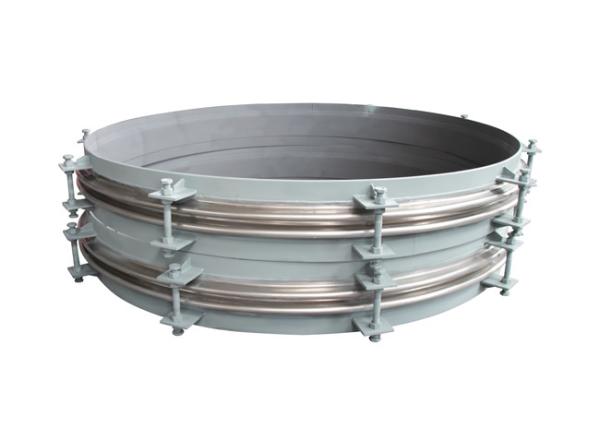

Piping System Stainless Steel Bellows Expansion Joint Metal Compensator With Flange
Piping System Stainless Steel Bellows Expansion Joint Metal Compensator With Flange
Piping System Stainless Steel Bellows Expansion Joint Metal Compensator With Flange
Piping System Stainless Steel Bellows Expansion Joint Metal Compensator With Flange
Specifications
Brand Name :
FIDAK
Model Number :
NIL
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
40 tons per day
Delivery Time :
5~15 working days
Packaging Details :
Steel frame case sealed by plywoods with each end capped
Material :
Stainless steel
Shape :
Equal
OEM/ODM :
Allowed
Technics :
Casting
Connection :
Flange
Description

High temperature resistance axial anticorrosive metal compensator with flange

Product Description

The product is composed of a takeover, a node, a deflector, and mainly compensates for axial displacement and a small amount of radial displacement.

Specification

Path: DN100 ~ DN2500,
Design pressure: 0.6 ~ 2.5 ~ MPa,
Working temperature: 100 ~ 450 ℃,
Axial compensation range: -50 ~ + 300mm,
Radial compensation: ± 20mm

Piping System Stainless Steel Bellows Expansion Joint Metal Compensator With FlangePiping System Stainless Steel Bellows Expansion Joint Metal Compensator With Flange

Features

1. Excellent Welding Technology, like a fish swimming in water.

2. More flexible and longer service life.

Specification

Nominal Bore Total Length BELLOWS O.D. Force to Compress Effective Area Axial Movement Working Pressure
mm ins mm mm kg cm2 mm kg/cm2
40 1 1/2 350 58 75 17.6 +10 -40 16
50 2 350 76 110 30.4 +10 -40 16
65 2 1/2 350 92 205 43.8 +10 -40 16
80 3 350 106 261 62.8 +10 -40 16
100 4 350 133 303 107.7 +10 -40 16
125 5 350 163 630 162.9 +10 -40 16
150 6 350 190 1154 227.5 +10 -40 16
200 8 350 252 1905 385.3 +10 -40 16
250 10 350 315 1932 670.1 +10 -40 16
300 12 350 366 2353 923.5 +10 -40 16
350 14 400 398.1 2192 1102 +10 -40 16
400 16 400 462.8 2689 1464 +10 -40 16
500 20 450 564 3322 2235 +10 -40 16
600 24 500 666 3956 3167 +10 -40 16

Application

It is made of SUS304 material, multiply bellows with features of lower elasticity coefficient, high-temperature and high-pressure resisiting, applied to absorb the expansion or copression of the HTM fluid pipeline. It can make a long service life in piping system.
