Online Full Automatic Plastic Pipe Double Station Disc Coiler/Winder Machine
Online Full Automatic Plastic Pipe Double Station Disc Coiler/Winder Machine
Online Full Automatic Plastic Pipe Double Station Disc Coiler/Winder Machine
Online Full Automatic Plastic Pipe Double Station Disc Coiler/Winder Machine
Online Full Automatic Plastic Pipe Double Station Disc Coiler/Winder Machine
Online Full Automatic Plastic Pipe Double Station Disc Coiler/Winder Machine
Specifications
Brand Name :
Magstar
Model Number :
MSJ
Certification :
ISO, CE,SGS,
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
20 working days
Packaging Details :
Film cover, Carton sea worthly packing
Pipe material :
PP and PE, soft PVC
Application :
Drain Pipe,Well screen pipe,water supply drainage pipe
Voltage :
380V 50HZ 3Phase(Customized)
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
According to Model
Warranty :
1 Year
Pipe diameter :
16-63mm
Usage :
Winding plastic pipe
Product name :
Plastic Pipe Double Station Disc Coiler/Winder
Processing type :
Winding
Color :
Customizable
Description

Online Full Automatic Plastic Pipe Double Station Disc Coiler/Winder

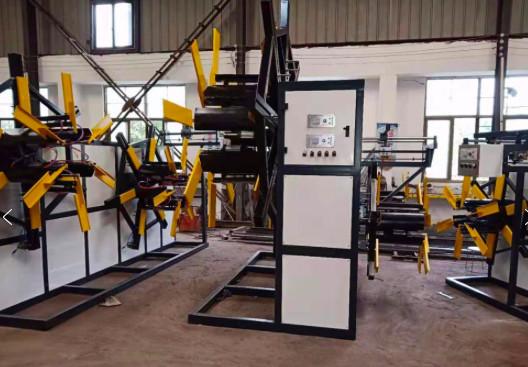

The plastic pipe double disc coiler machine is suitable for winding the smaller plastic hoses such as the aluminum plastic compound pipe, PE pipe and cross linked compound pipe which are pulled out from the front passage. The machine adopts the method of automatic winding, adjusting winding speed and winding tension to ensure the continuity of production. Adopt pneumatic wheel spokes adopt pneumatic opening or closing, at the same time, equipped with smooth rod line arranger, automatic line arrangement, to achieve even line arrangement, neat winding, the whole machine has a compact structure, high degree of automation, beautiful appearance.

As the name said, there are two disc of the coiler machine, it can save time and works continuous.

Online Full Automatic Plastic Pipe Double Station Disc Coiler/Winder Machine

Basic Characteristics of Plastic Pipe DoubleStation Disc Coiler/Winder :

  • It adopts automatically winding, adjusting winding speed and winding method. It has two discs for continuous winding.
  • It adopts air-operated method. The wheel rib of the winding up wheel adapts air-operated opening and closing.
  • It is equipped with a ray creel stand to automatically wind displacement.
  • Its appearance is beautiful and its operation is convenient
  • The coiler machine structure is compact. Its automatization is high.
  • It reaches winding up orderly.
  • Simple control cabinet for improved operability and maintainability.

Main Technology Parameter of Plastic Pipe Single/Double Station Disc Coiler/Winder

Model MSJ32 Double MSJ63 Double MSJ110 Single
Pipe Diameter 16mm – 32mm 32mm -63mm 63mm – 110mm
Outside Diameter of Coil 800mm – 1280mm 1400mm – 2000mm 3500mm-4000mm
Coil Width 200mm-370mm 360mm-560mm 700mm
Winding Speed 1-20m/min 1-20m/min 0.5-5m/min
Inner Diameter of Coil 480mm-800mm 600mm-1200mm 2500mm-3500mm
Torque Motor 10N.M 25N.M 40N.M
Control Pneumatic Pneumatic Pneumatic
