SMF Series Disc Type Plastic PE/PP/ABS/EVA/PS/PET/EPS/Nylon Pulverizer/ Plastic Miller Machine/ Plastic Grinding Machine

MagStar SMF series disc type plastic pulverizer also named plastic miller machine or plastic grinding machine which is used for powder processing of PE, HDPE, PP, PS, ABS, EVA, PET, nylon and other materials with size up to 20-120 mesh.

MagStar SMF series disc type plastic pulverizers are available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the center of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.

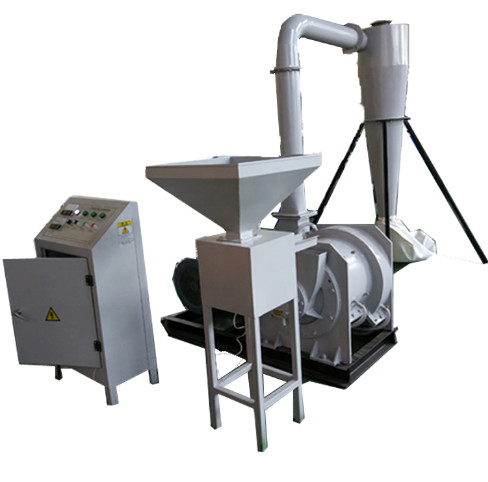

MagStar SMF series disc ctype plastic pulverizer is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.

MagStar SMF series disc type plastic miller machine has different production capacity which is from 200kg/h to 950kg/h. According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.

Features of SMF Series Disc Type MagStar Plastic Pulverizer / Plastic Miller Machine/ Plastic Grinding Machine

• MagStar SMF series disc type plastic pulverizer with water cycle and wind cooling, the machine can be applied into processing heat sensitive material.
• MagStar SMF series disc type plastic pulverizer with the tail-wagging air stream (partly eddy flow) produced by the tail-wagging of the main shaft capstan of the machine, the input tail-wagging materials collide strongly with the board and the cutting blade, and was grinded into powdery (without sieving).
• The new disc design of MagStar plastic pulverizer is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
• MagStar SMF series disc type plastic pulverizer machine using well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently
• The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.

Main Technology Parameters of SMF Series Disc Type MagStar Plastic Pulverizer

What Is Plastic Pulverizer?

Platsic Pulverizer machines are used to smash materials into tiny shards or granules. Pulverizer machines can crush all types of items, including plastic, glass, aluminum, concrete, coal, rock, resin, tires, and medical waste. Pulverizer machines come in a number of different forms. Hammer mills, ring mills, double roll crushers, granulators, impactors, and shredders are all forms of pulverizer machines. Pulverizer is used in plastic industry for Plastics Pulverizing Including PVC Recycling, Rotational Molding, Compounding and Master batching.

Why I Need Plastic Pulverizer ?

In Plastic Industry, there is a need of Plastic Powder for Various processes. Usually Plastic is available in granules form and to convert these granules in to Powder, a Pulverizer is used.

What Types of Materials can be Pulverized?

There are various Plastic Polymers which can be Pulverized including PE/PVC/PP/PET/UHMW/Nylon/ABS/Wood Composite etc. to name a few.

Working Principle of Plastic Pulverizer?

Plastic scraps are fed into miiling system thrugh hopper, where it is crushed in between two Disks, thus minced to Powder form which is passed thru screening system to get desired size of Powder. Screen also serves as separator to separate Coarser powder for re-feeding in to Mill via a closed loop system & recycle.

Why MagStar Plastic Pulverizers?

MagStar Plastic Pulverizers are carefully designed by experience and qualified team of designers, technicians, engineers thus guaranteeing quality system to startwith. Our Technical team are also fully equipped for providing online support thru various media to client in case of trouble shooting requirement. Lastly, we go extra mile in fulfilling our objective thus building our relationship with clients, who in turn are our advocates for our enriched presence.
