60mm Pipe Internal Corrosion Inspection Robot 60mm Oil Pipeline Inspection Robot
60mm Pipe Internal Corrosion Inspection Robot 60mm Oil Pipeline Inspection Robot
60mm Pipe Internal Corrosion Inspection Robot 60mm Oil Pipeline Inspection Robot
60mm Pipe Internal Corrosion Inspection Robot 60mm Oil Pipeline Inspection Robot
60mm Pipe Internal Corrosion Inspection Robot 60mm Oil Pipeline Inspection Robot
60mm Pipe Internal Corrosion Inspection Robot 60mm Oil Pipeline Inspection Robot
Specifications
Brand Name :
Snake
Model Number :
SNK-ICR60
Place of Origin :
China
MOQ :
2 SET
Price :
USD
Payment Terms :
T/T
Supply Ability :
100SET
Delivery Time :
20-30 work days
Certification :
Yes
Packaging Details :
Polyurethane box
Name :
Pipe inspection robot
Material :
Stainless steel
Color :
Stainless steel
Bending Ability :
1.5D
Sampling Rate :
150times/s
Inspection Speed :
1m/s
Description

60mm Pipeline Internal Corrosion Inspection Robot 60mm Oil Pipeline Inspection Robot

Product description

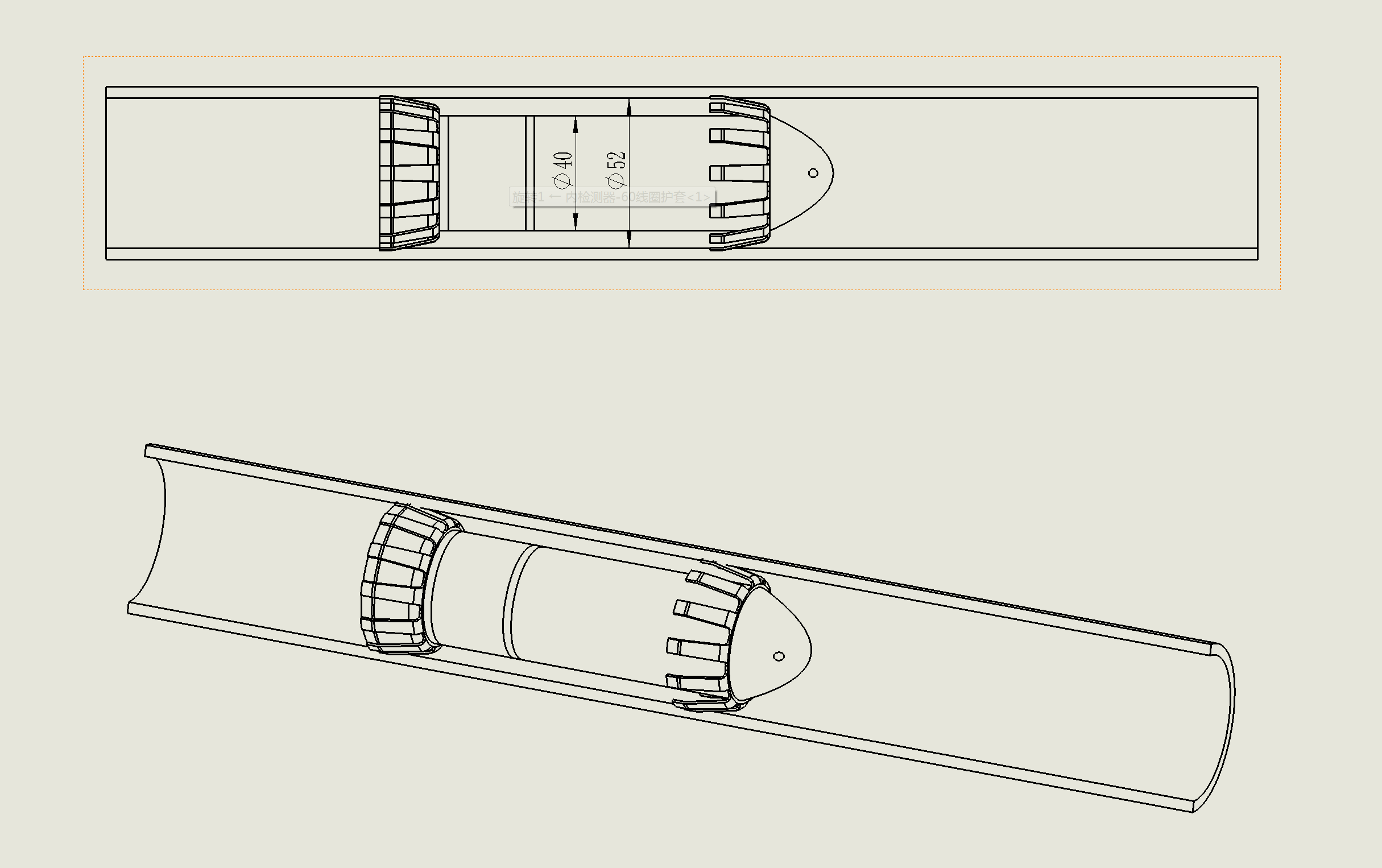

60mm Pipeline inspection robot is an intelligent pipe internal corrosion inspection. Robot is walking in the pipeline by pressure of fluid. During walking, the corrosion situation of the inner wall of the pipe is collected and recorded by robot;and data is analyzed and explained by special software, inspection report and conclusion are finally formed.

Using ECT inspection method, the pipeline inspection robot is detecting corrosion in pipeline.The severity of corrosion in the pipeline can be qualitatively judged through special data and software analysis, to guide the management department for maintaining and managing.

Technical specification

Item Specifications
Pipeline Internal Diameter Range 60mm~273mm
Defect Type Uniform corrosion, corrosion pits, corrosion perforation and cracks
Distance Range 0~10km
Traffic ability

Min Bending Diameter1.5D

Inner Diameter Variation±10%
Working Temperature Range -20~60°C
Pressure Resistance 10Mpa
Detection Speed <2km/h
Battery Life 2-3 years
Pipeline Type Oil, gas, water

60mm Pipe Internal Corrosion Inspection Robot 60mm Oil Pipeline Inspection Robot
