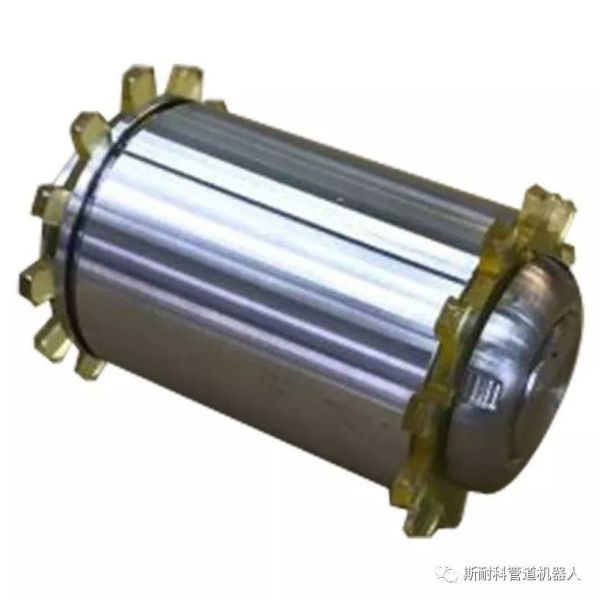

Pipeline inline NDT internal corrosion inspection robot for 273mm pipeline inspection
Pipeline inline NDT internal corrosion inspection robot for 273mm pipeline inspection
Specifications
Brand Name :
SNAKE
Model Number :
SNK-CIR273
Certification :
Yes
Place of Origin :
China
MOQ :
2 sets
Price :
USD
Payment Terms :
T/T
Supply Ability :
1000 set per month
Delivery Time :
5-8 work days
Packaging Details :
wooden box
Material :
Stainless steel
Pipeline Type :
Oil,gas,water
Inspection method :
ECT
Data Analyse :
Own developped app
Description

273mm pipeline internal corroion inspection robot non destructive testing inspection robot

Pipeline type: oil, gas, water

Inspection method: ECT

Working method: outer force pushing(oil, gas, water pushing)

Inspection condition: pipeline cleaning

laucher&receiving device

Robot is walking in the pipeline by pressure of fluid. During walking, the corrosion situation of the inner wall of the pipe is collected and recorded by robot;and data is analyzed and explained by special software, inspection report and conclusion are finally formed.

Inspection Method

Using ECT inspection method, detecting corrosion in pipeline.The severity of corrosion in the pipeline can be qualitatively judged through special data and software analysis, to guide the management department for maintaining and managing.

Technical specification

Item Specifications
Pipeline Internal Diameter Range 60mm~219mm
Defect Type Uniform corrosion, corrosion pits, corrosion perforation and cracks
Distance Range 0~10km
Traffic ability

Min Bending Diameter1.5D

Inner Diameter Variation±10%
Working Temperature Range -20~60°C
Pressure Resistance 10Mpa
Detection Speed <2km/h
Battery Life 2-3 years
Pipeline Type Oil, gas, water

Product tags

pipeline pressure testing equipment

,

ndt pipeline inspection

,

pressure vessel inspection
