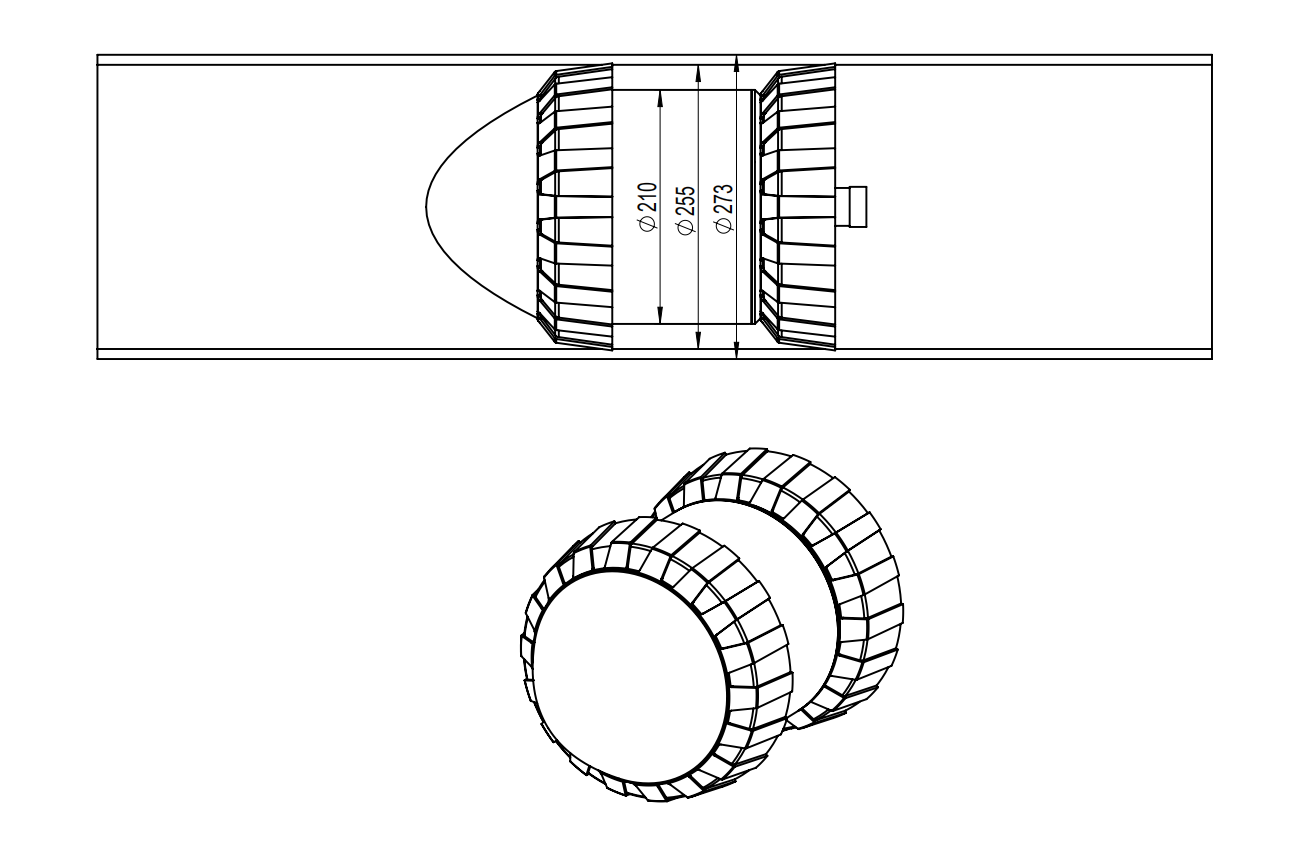

273mm oil&gas pipeline inspection robot metal pipe internal corossion inspection tool
273mm oil&gas pipeline inspection robot metal pipe internal corossion inspection tool
273mm oil&gas pipeline inspection robot metal pipe internal corossion inspection tool
273mm oil&gas pipeline inspection robot metal pipe internal corossion inspection tool
273mm oil&gas pipeline inspection robot metal pipe internal corossion inspection tool
273mm oil&gas pipeline inspection robot metal pipe internal corossion inspection tool
Specifications
Brand Name :
Snake
Model Number :
SNK-CIR273
Certification :
Explosion-proof certicicate
Place of Origin :
China
MOQ :
2 sets
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 set per month
Delivery Time :
4-8 weeks
Packaging Details :
Polyurethane Box
Industy :
Petroleum,petrochemical,municipal pipeline
Method :
ECT
Min. Bending :
1.5D
Sampling Rate :
150times/s
Inspection Speed :
1m/s
Pipe Type :
Metal pipes
Battery Capacity :
32000Mah
Working Ability :
0-100km
Description

273mm oil&gas pipeline inspection robot metal pipe internal corossion inspection tool

Product Description

Snake inspection robot is an intelligent pipe internal corrosion detector. It uses electromagnetic eddy current testing technology and does not need coupling medium and no need to touch the pipe. Robot walks in the pipeline by pressure of fluid or gas. During walking, the corrosion situation of the inner wall of the pipe is collected and recorded by the robot; and the data is analyzed and explained by special software, test report and conclusion are finally formed, and the internal corrosion and severity of the whole pipeline are determined, which provides a scientific and effective basis for the maintenance or replacement of the pipe in the field.

Scope of application
As corrosion medium exsited in the transportation fluid during pipeline operation, the corrosion medium will cause metal corrosion in the internal wall of pipeline. While the metal corrosion will cause pipeline getting thinner, crack,defect and even leaking and exploring accident, which are the biggest safety problems the owner and management department facing.
Our inspection robot uses ECT inspection technology,by optimise the mechanical and electrical parts design, the specific ECT inspection circuit can ensure inspection sensitivity and accuracy, can envaluate different defect of pipeline, to guide the managing department to maintain the pipeline properly.

Technical specification

Item Specifications
Pipeline Internal Diameter Range 60mm~273mm
Defect Type Uniform corrosion, corrosion pits, corrosion perforation and cracks
Distance Range 0~10km
Traffic ability

Min Bending Diameter1.5D

Inner Diameter Variation±10%
Working Temperature Range -20~60°C
Pressure Resistance 10Mpa
Detection Speed <2km/h
Battery Life 2-3 years
Pipeline Type Oil, gas, water

Significance of Miniaturization and Intelligence of Detectors
Easy to receiving & lauching,no need of professional receiving&lauching device,save cost of renovation and construction.
Make inspection easily & intelligently, regular inspection,reduce the inspection cost.

273mm oil&gas pipeline inspection robot metal pipe internal corossion inspection tool

FAQ

Is laucher is needed for inspection?

--Yes, lauching and receiving device is needed to be installed.

Is pipeline cleaning is necessary before inspection?

--Yes.

What kind of material can the robot inspect?

--Metal material pipes.

Does the robot can inspect PE pipes?

--No, only metal pipes.
