76mm Carbon Steel Pipeline Smart Pig Oil And Gas Pipeline Internal Corrosion Inspection Robot
76mm Carbon Steel Pipeline Smart Pig Oil And Gas Pipeline Internal Corrosion Inspection Robot
76mm Carbon Steel Pipeline Smart Pig Oil And Gas Pipeline Internal Corrosion Inspection Robot
76mm Carbon Steel Pipeline Smart Pig Oil And Gas Pipeline Internal Corrosion Inspection Robot
76mm Carbon Steel Pipeline Smart Pig Oil And Gas Pipeline Internal Corrosion Inspection Robot
76mm Carbon Steel Pipeline Smart Pig Oil And Gas Pipeline Internal Corrosion Inspection Robot
76mm Carbon Steel Pipeline Smart Pig Oil And Gas Pipeline Internal Corrosion Inspection Robot
76mm Carbon Steel Pipeline Smart Pig Oil And Gas Pipeline Internal Corrosion Inspection Robot
Specifications
Brand Name :
Snake
Model Number :
SNK-CIR 76mm
Certification :
Yes
Place of Origin :
China
MOQ :
2 sets
Price :
FOB
Payment Terms :
T/T
Supply Ability :
1000/year
Delivery Time :
30 days
Packaging Details :
polyurethane box
Name :
Pipe Robot
Material :
steel
Color :
Stainless steel
Size :
70mm
Record capacity :
8-512g
Outer pushing pressure :
0.2Mpa
Description

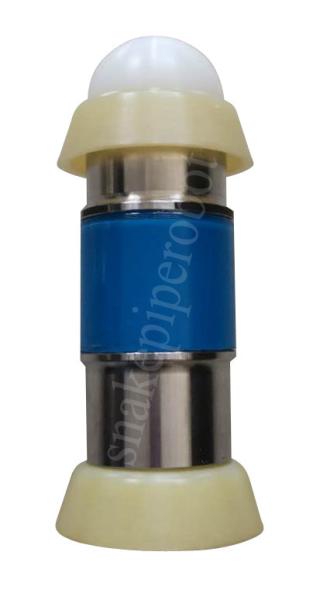

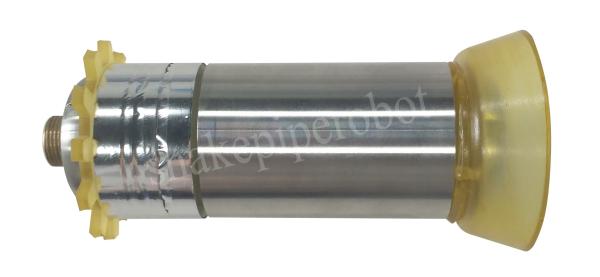

76mm Carbon Steel pipeline Smart Pigs Oil And Gas Pipeline Internal Corrosion Inspection robot

Product description

76mm gas pipeline smart pig is used for carbon steel gas pipeline corrosion inspection.It is pushed by oil,gas,water etc liquid. Robot is collecting and recording the corrosion situation of the inner wall of the pipeline; the special data software is analyzing and explaining the inspection data, inspection report and conclusion are finally formed.

The robot is using ECT inspection method to detect corrosion in pipeline.The severity of corrosion in the pipeline can be qualitatively judged through special data and software analysis, which will guide the management department for maintaining and managing.

The robot has been widely used in CNPC, CNOOC and SINOPEC in China.

Technical specification

Item Specifications
Pipeline Internal Diameter Range 60mm~273mm
Defect Type Uniform corrosion, corrosion pits, corrosion perforation and cracks
Distance Range 0~10km
Traffic ability

Min Bending Diameter1.5D

Inner Diameter Variation±10%
Working Temperature Range -20~60°C
Pressure Resistance 10Mpa
Detection Speed <2km/h
Battery Life 2-3 years
Pipeline Type Oil, gas, water

76mm Carbon Steel Pipeline Smart Pig Oil And Gas Pipeline Internal Corrosion Inspection Robot

Advantages Of Pipeline ECT Inspection Robot

-Don’t need coupling medium

-High inspection speed

-Automatic inspection

-Non excavation of pipeline

-Non stop production

-Accurate positioning

76mm Carbon Steel Pipeline Smart Pig Oil And Gas Pipeline Internal Corrosion Inspection Robot
