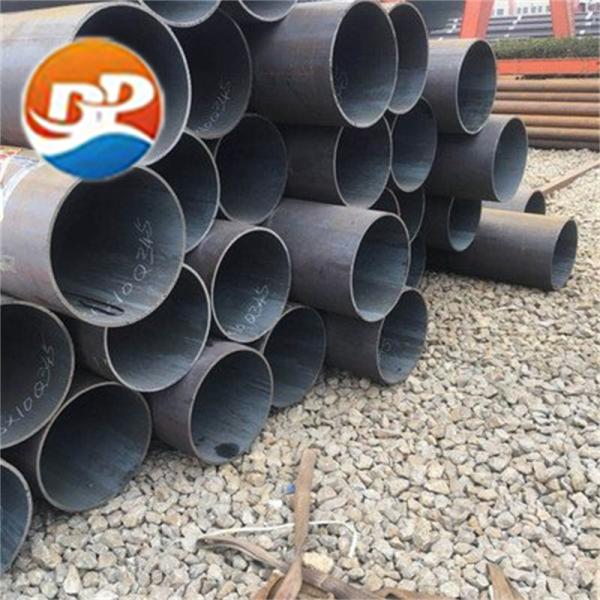

ASTM A213 / ASME SA213 T5 Seamless Chrome Moly Tubes Heater Tubes
ASTM A213 / ASME SA213 T5 Seamless Chrome Moly Tubes Heater Tubes
ASTM A213 / ASME SA213 T5 Seamless Chrome Moly Tubes Heater Tubes
ASTM A213 / ASME SA213 T5 Seamless Chrome Moly Tubes Heater Tubes
Specifications
Brand Name :
BaoYang
Model Number :
ASTM A213/ASME SA213 T5
Certification :
CE & ISO
Place of Origin :
cangzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
7~30 working days
Packaging Details :
Standard Export Packing
Name :
Seamless Alloy Steel Pipes
Process :
Hot Rolled Cold Rolled Cold Drawn
Standards :
ASTM A213/ASME SA213 T5
Material :
Alloy Steel Pipe
Wall Thickness :
1-30mm (0.04 Inch - 0.78 Inch)
Outer Diameter :
10-324mm
Processing Service :
Bending, Punching, Cutting
Usage :
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Description

STM A213/ASME SA213 T5 Seamless Chrome Moly Heater Tubes

1. Product Description: ASTM A213/ASME SA213 T5 Seamless Chrome Moly Heater Tubes are high-quality alloy steel tubes designed for use in heat exchangers and boiler applications where high temperatures and pressures are common. These tubes are manufactured from chrome molybdenum alloy steel, which is known for its excellent heat resistance and tensile strength. The seamless construction ensures uniform wall thickness and superior mechanical properties.

2. Product Parameters:

Parameter Description
Grade ASTM A213/ASME SA213 T5
Material Chrome Moly Alloy Steel (Seamless)
Standard ASTM A213, ASME SA213
Size Range Various diameters and wall thicknesses as per ASTM/ASME standards
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property Typical Requirements
Tensile Strength ≥415 MPa (60,000 psi)
Yield Strength ≥205 MPa (30,000 psi)
Elongation ≥30% in 50 mm (2 in) or 4D, whichever is greater
Hardness Varies depending on heat treatment

4. Chemical Composition:

Element Typical Range (%)
Carbon ≤0.12
Manganese ≤0.50
Phosphorus ≤0.025
Sulfur ≤0.025
Silicon ≤0.50
Chromium 0.40 - 0.60
Molybdenum 0.40 - 0.60

5. Product Applications:

  • Heat Exchangers: Used for high-temperature heat exchange processes.
  • Boiler Tubes: Ideal for steam generation in high-pressure boilers.
  • Superheater Tubes: Employed in superheater sections to increase steam temperature.
  • Pressure Vessels: Suitable for construction of high-pressure vessels and reactors.
  • Gas and Oil Industry: Utilized in pipelines and equipment for oil and natural gas transport in high-temperature environments.

6. Product Advantages:

  • Seamless Construction: Provides a consistent material structure and eliminates potential seam-related failures.
  • High-Temperature Resistance: Chrome moly alloy steel offers excellent resistance to high temperatures and thermal cycling.
  • Heat Resistance: Designed to withstand the continuous high-temperature conditions found in heat exchangers and boilers.
  • Corrosion Resistance: The alloy content enhances the tubes' resistance to corrosion and oxidation.
  • Long Service Life: Built to last with minimal maintenance in harsh environments.

ASTM A213 / ASME SA213 T5 Seamless Chrome Moly Tubes Heater TubesASTM A213 / ASME SA213 T5 Seamless Chrome Moly Tubes Heater Tubes
