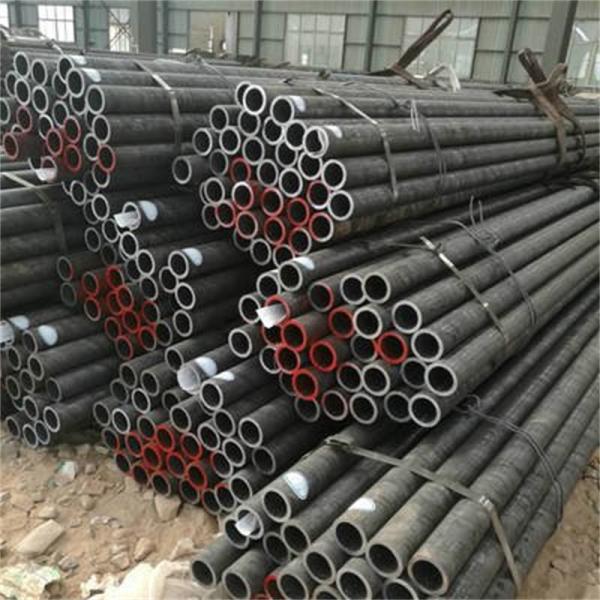

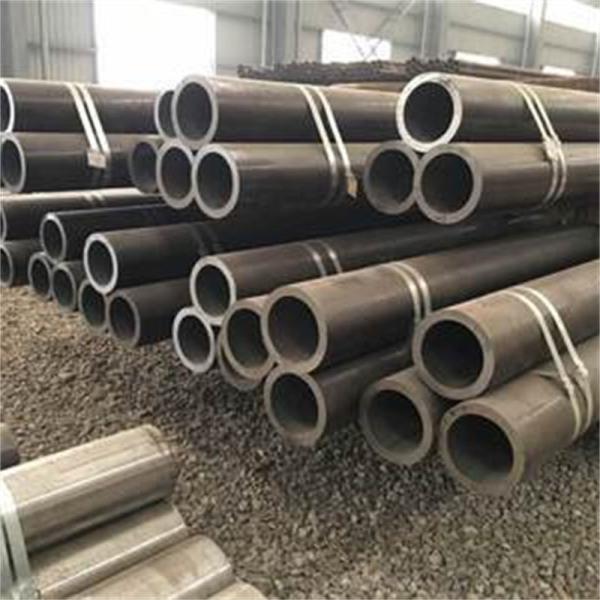

American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333
American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333
American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333
American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333
Specifications
Brand Name :
BaoYang
Model Number :
Seamless Pipes Boiler Tubes
Certification :
CE & ISO
Place of Origin :
cangzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
7~30 working days
Packaging Details :
Standard Export Packing
Name :
Seamless Carbon Steel Pipes
Process :
Hot Rolled Cold Rolled Cold Drawn
Standards :
ASTM A333 ASME SA333
Material :
Carbon Steel
Wall Thickness :
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter :
6-2500mm
Processing Service :
Bending, Punching, Cutting
Usage :
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Description

Product Description:

American Standard Carbon Steel Seamless Pipes, also known as Boiler Tubes, are precision-engineered to meet the stringent requirements of boiler and pressure vessel applications. These tubes are manufactured in compliance with American standards such as ASTM A106, ASTM A53, and ASME SA106, ensuring a high level of quality and reliability. They are seamless, which means they are produced without a weld, providing superior strength and integrity.

Advantages:

  1. Seamless Construction: Offers greater pressure tolerance and resistance to failure compared to welded pipes.
  2. Uniform Quality: Uniform wall thickness and material composition throughout the length of the tube.
  3. High Strength: Capable of withstanding high pressures and temperatures, essential for boiler applications.
  4. Longevity: Designed for long-term use with minimal maintenance, reducing lifecycle costs.
  5. Wide Range of Sizes: Available in various sizes and lengths to suit different boiler designs and requirements.

Product Parameter Table:

Category Parameter Typical Range/Value
Mechanical Properties Tensile Strength 415-690 MPa (ASTM A106 Grade B)
Yield Strength ≥ 240 MPa (for nominal wall thickness ≤ 0.5 in)
≥ 205 MPa (for nominal wall thickness > 0.5 in)
Elongation ≥ 20% (in 2 in or 50 mm length)
Chemical Composition Carbon (C) 0.29-0.36% (ASTM A106 Grade B)
Manganese (Mn) 0.35-0.65%
Phosphorus (P) ≤ 0.035%
Sulfur (S) ≤ 0.035%
Diameter Tolerance Outer Diameter ± 1/16 in (±1.6 mm)
Wall Thickness Tolerance Wall Thickness ± 12.5% of nominal thickness or ± 0.005 in, whichever is greater

Applications:

  1. Boiler Tubes: Used extensively in the construction of steam boilers for power generation and industrial processes.
  2. Heat Exchangers: Ideal for use in shell and tube heat exchangers due to their high heat transfer efficiency.
  3. Pressure Vessels: Suitable for high-pressure vessels where strength and reliability are paramount.
  4. Oil and Gas Industry: Employed in pipelines and equipment that require high-pressure and temperature resistance.
  5. Chemical Processing: Used in chemical plants for the transportation of chemicals and other substances under pressure.
