Grade A Grade B Astm A53 Seamless Pipe / A53 Carbon Steel Pipe
Grade A Grade B Astm A53 Seamless Pipe / A53 Carbon Steel Pipe
Grade A Grade B Astm A53 Seamless Pipe / A53 Carbon Steel Pipe
Grade A Grade B Astm A53 Seamless Pipe / A53 Carbon Steel Pipe
Specifications
Brand Name :
BaoYang
Model Number :
ASME SA53 Grade A Grade B
Certification :
CE & ISO
Place of Origin :
cangzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
7~30 working days
Packaging Details :
Standard Export Packing
Name :
ASME SA53 Grade A Grade B Carbon Steel Seamless Pipe
Process :
Hot Rolled Cold Rolled Cold Drawn
Standards :
ASTM/ASME/DIN/En
Material :
Carbon Steel
Wall Thickness :
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter :
6-2500mm
Processing Service :
Bending, Punching, Cutting
Usage :
Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe
Description

ASME SA53 Grade A and Grade B Carbon Steel Seamless Steel Pipes

1. Product Description: ASME SA53 Grade A and Grade B Carbon Steel Seamless Steel Pipes are premium-grade pipes used extensively across various industries for a multitude of applications. These pipes are manufactured from carbon steel and are seamless, ensuring a uniform wall thickness and superior structural integrity. The ASME SA53 specification covers these pipes, which are designed to withstand varying degrees of pressure and temperature conditions.

2. Product Parameters:

Parameter Description
Grades ASME SA53 Grade A and Grade B
Material Carbon Steel (Seamless)
Standard ASME SA53
Size Range Wide range of diameters and wall thicknesses
Length Typically 20 feet (6 meters), customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, normalized, or annealed

3. Product Advantages:

  • Seamless Construction: Provides a consistent material structure and eliminates the risk of seam-related failures.
  • Versatility: Suitable for a wide range of applications due to varying strength and ductility.
  • Pressure Resistance: Designed to withstand different pressure levels depending on the grade.
  • Cost-Effective: Offers a balance of quality and affordability.
  • Corrosion Resistance: Offers inherent resistance to many corrosive environments.

4. Product Uses:

  • Oil and Gas Industry: Used for transporting oil, gas, and other fluids in pipelines.
  • Structural Applications: Employed as structural supports in construction projects.
  • Mechanical Components: Suitable for manufacturing various mechanical components and equipment.
  • Piping Systems: Ideal for use in industrial piping systems for water, steam, and other fluids.
  • Pressure Vessels: Utilized in the construction of pressure vessels and boilers.

5. Executing Standards:

  • ASME SA53: The pipes are manufactured in compliance with the ASME SA53 standard, which specifies the requirements for carbon steel pipes intended for high-temperature service.

6. Mechanical Properties:

Property ASME SA53 Grade A ASME SA53 Grade B
Tensile Strength ≥340 MPa (49,000 psi) ≥415 MPa (60,000 psi)
Yield Strength ≥205 MPa (30,000 psi) ≥240 MPa (35,000 psi)
Elongation ≥30% in 50 mm (2 in) ≥20% in 50 mm (2 in)
Hardness Rockwell B 95 max (optional) Rockwell B 95 max (optional)

7. Chemical Composition:

Element ASME SA53 Grade A Range (%) ASME SA53 Grade B Range (%)
Carbon 0.30 - 0.33 0.30 - 0.33
Manganese 0.40 - 0.60 0.40 - 0.60
Phosphorus ≤ 0.035 ≤ 0.035
Sulfur ≤ 0.035 ≤ 0.035
Silicon ≤ 0.35 ≤ 0.35

Conclusion: ASME SA53 Grade A and Grade B Carbon Steel Seamless Steel Pipes are versatile and robust, offering a range of benefits that make them suitable for a variety of high-temperature and high-pressure applications. Their seamless design and adherence to ASME SA53 standards ensure that these pipes provide a reliable and cost-effective solution for industries such as oil and gas, construction, and mechanical engineering.

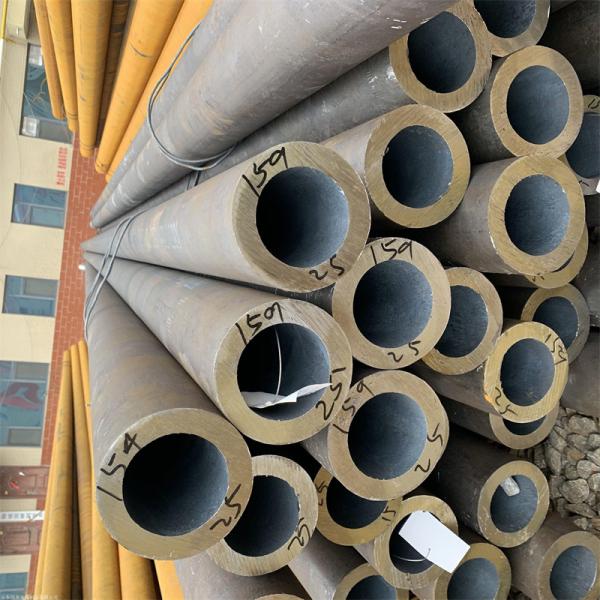

Product Image
