Specifications
Brand Name :
HSD
Model Number :
HSD-003
Place of Origin :
Qingdao China
Certification :
CE ,ISO9001-2008
MOQ :
1 set
Price :
$35000/set
Supply Ability :
340-420, 240-600, 300-650(Kg/H)
Delivery Time :
45 days
Packaging Details :
standard package
Size :
(ID) Φ90-250MM
Cutter :
Automatically
Operation Power :
190-220kW
Type :
Single Wall/ Double Wall
Key Word :
High Speed
Capacity :
320-420,240-600,300-650(Kg/H)
HSD Code :
8477209000
Diameter :
300-1200mm,800-2000mm,2200-3000mm
extrusion speed :
1-12m,0.5-5m,0.3-3m
Customized :
Customized
Description

Product Description

HDPE Hollow Wall Winding Pipe Extrusion Line Double-Wall Corrugated Pipe Machinery

Product Description

HDPE Hollow wall corrugated pipe produced by this line have high ring stiffness,high brunt intensity and low weight due to its unique structure,In addtional,it has many advantages such as good creep deformation resistance,outer pressure resistance,erosion resistance (such as acid,alkali and salt erc.) long life of approximate 50 years.It has been widely used for sewerage and drainage in multicipal, it will replace the cement pipe,cast iron pipe and other pipes. Its low cost of assembling, easy operation, easy connection and economical construction can make it wide foreground and market potential.

Features of HDPE Hollow Wall Corrugated Pipe/Structured Wall Pipe Extrusion Line:

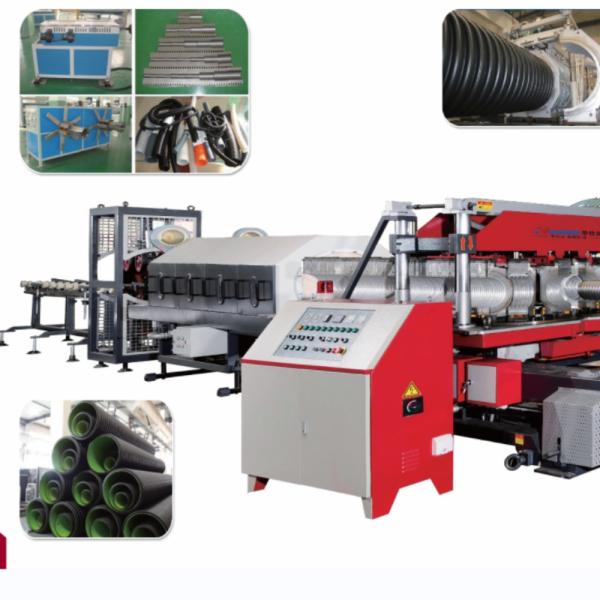

HDPE Hollow Wall Corrugated Pipe/Structured Wall Pipe Extrusion Line designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe ectrusion die, vacuum calibration water tank, spray cooling water tank, 2nd single screw extruder for melting glue material, spiral forming unit,cutting unit and stack unit.
INTRODUCTION
Pipe range: 200-800mm, 300-1200mm 1000-2000mm 2000-3000mm
Application

This kind of pipe is fit for municipal drainage of water less than 45ºC, building outdoor drainage, buried farmland drainage, industrial sewage, road drainage, sewage disposal work, sport field square drainage, electrical and telecommunication project etc.
Product Parameters

Model Diameter(mm) Style Total Power Extrusion speed Capacity(kg/h) Dimension(m)
SKRG 1200 300-1200 SJ-90×30
SJ-65×30		 230kw 1-12 320-420 26×16×5.0
SKRG 2000 800-2000 SJ-100×33
SJ-65×33		 400KW 0.5-5 600 240 32×16×6.0
SKRG 3000 2200-3000 SJ-120×30
SJ-90×30		 520KW 0.3-3 600 300 42×18×7.0
