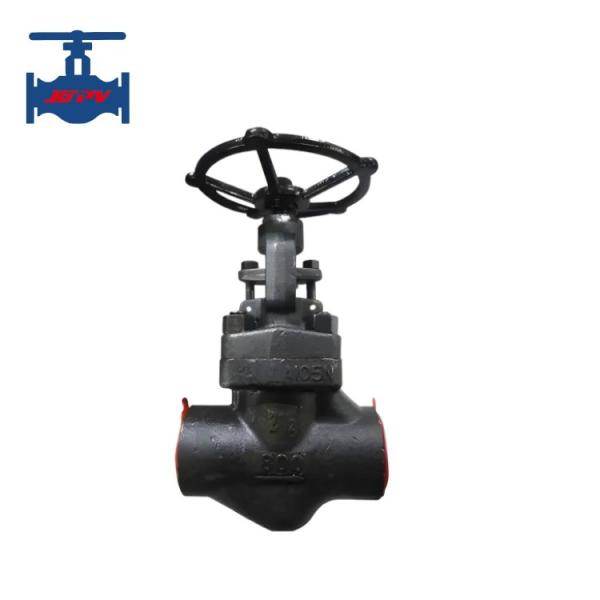

A105 F11 F22 F304 F316 F321 Forged Globe Valve Cast Steel Stainless Steel
A105 F11 F22 F304 F316 F321 Forged Globe Valve Cast Steel Stainless Steel
Specifications
Brand Name :
JGPV
Model Number :
J11H-JGPV
Place of Origin :
China
MOQ :
1 Set
Price :
USD19.9/Set - USD179.9/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set per month
Delivery Time :
One week
Packaging Details :
Plywood box safety packing
Standard or Non-standard :
Standard
Application :
General
Product feature :
Industrial valve
Medium type :
Water, steam and oil etc.
Working temperature :
Normal and high temperature
Pressure application :
Normal and high pressure
Manufacturing craft :
Forge
Operation method :
Handwheel manual operation
Test standard :
Strength test and sealing test and client requirement
Quality warranty :
18 months
Name :
Forged Globe Valve
Description

Cast Steel Stainless Steel A105 F11 F22 F304 F316 F321 Forged Globe Valve

Product Introduction:

Forged steel globe valve is a common valve device that uses forging technology to forge the valve body material into shape, which has certain characteristics as precise flow control, high pressure capability, reliable sealing, logevity and low maintenance,

The valve body and components are forged, providing strength and durability. Forging enhances the structural integrity of the material, making it suitable for high-pressure applications.The design of the globe valve minimizes seat wear during operation, contributing to the valve’s longevity and reliability. They are suitable for high-pressure applications due to the strength of the forged construction. They are often used in pipelines with elevated pressure levels.

Product technical paramters:

Type Number: J11H-JGPV
Nominal Pressure PN(MPa) 1.0 - 42.0, Class 150 - 2500lb
Nominal Diameter DN(mm) 15～50, 2/1" - 2"
Test pressure (MPa) Strength (water) 1.5 times of pressure nominal
Sealing (water) 1.1 times of pressure nominal
Raw material A105, F11, F22, F304, F316, F321
Medium suitable: Water, steam, oil and nitric acid etc corrosive medium
Working temperature 200≤℃
Connection type Flange
Operational method Handwheel, electric and pneumatic actuators

Product features:

1. High strength and corrosion resistance: Due to the use of forging technology, forged steel globe valves have excellent strength and corrosion resistance, can withstand high pressure and temperature, and are suitable for various working environments.
2. Good sealing performance: The sealing surface of the forged steel globe valve adopts special process treatment to ensure the sealing performance of the fluid and the reliability of the valve, reducing the risk of leakage.
3. Flexible operation: The operating rod or handwheel of the forged steel globe valve can be easily operated to quickly open or close the valve, achieving fluid control and adjustment.
4. Compact structure: The forged steel globe valve adopts a compact structural design, with small volume, light weight, and convenient installation and maintenance.
